    Home / Fasteners / Plastic socket couplings; socket blue / Bulkhead couplings / Partition clutch 6

    Partition clutch 6

    Code: PMM-6
    Tip
    Not rated
    168 Kč –10 %
    Partition clutch 6
    168 Kč –10 % 151 Kč / pcs 125 Kč excl. VAT
    Stock (536 pcs)
    Delivery to:
    22.11.2024

    Coupling for quick and easy installation of 6 mm plastic tubing. Fastening with 2 M14 x 1 nuts. Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Detailed information

    Product detailed description

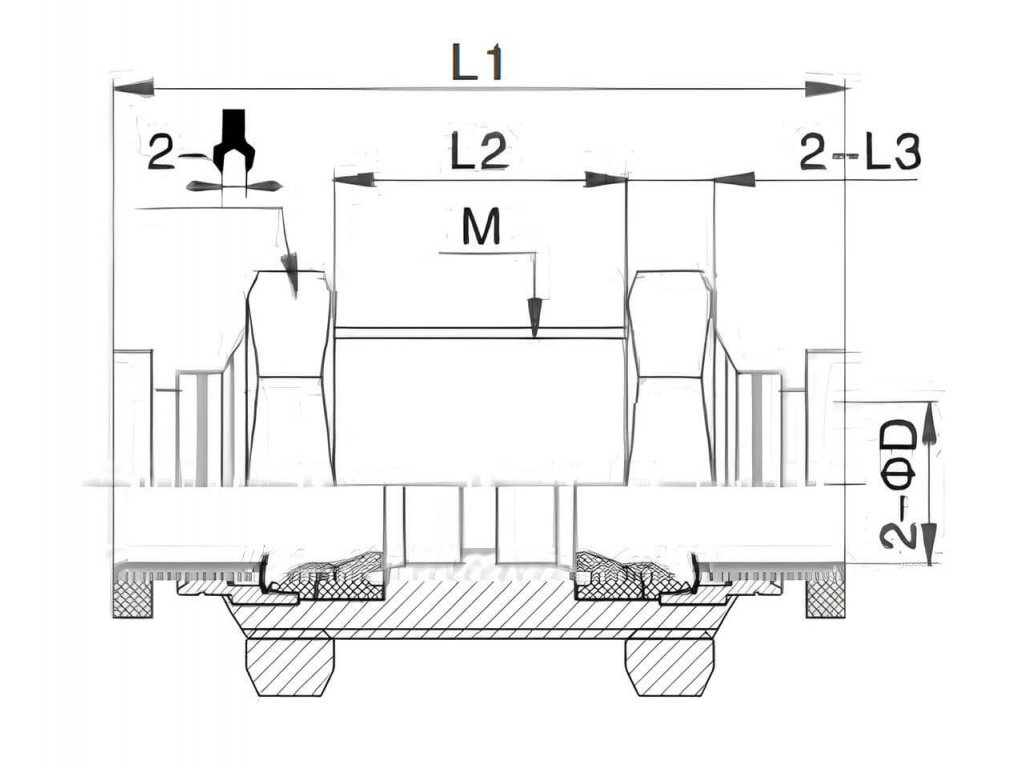

    Bulkhead socket coupling 6 mm - M14x1

    • Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
    • Materials used : nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Additional parameters

    Category: Bulkhead plastic connectors
    Pressure: 10 bars
    A tube: 6 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: -10 / +60 °C
    Thread design: Metric
    SW (key): 17
    Thread: M14 x 1
    Connection system: Plug-in system
