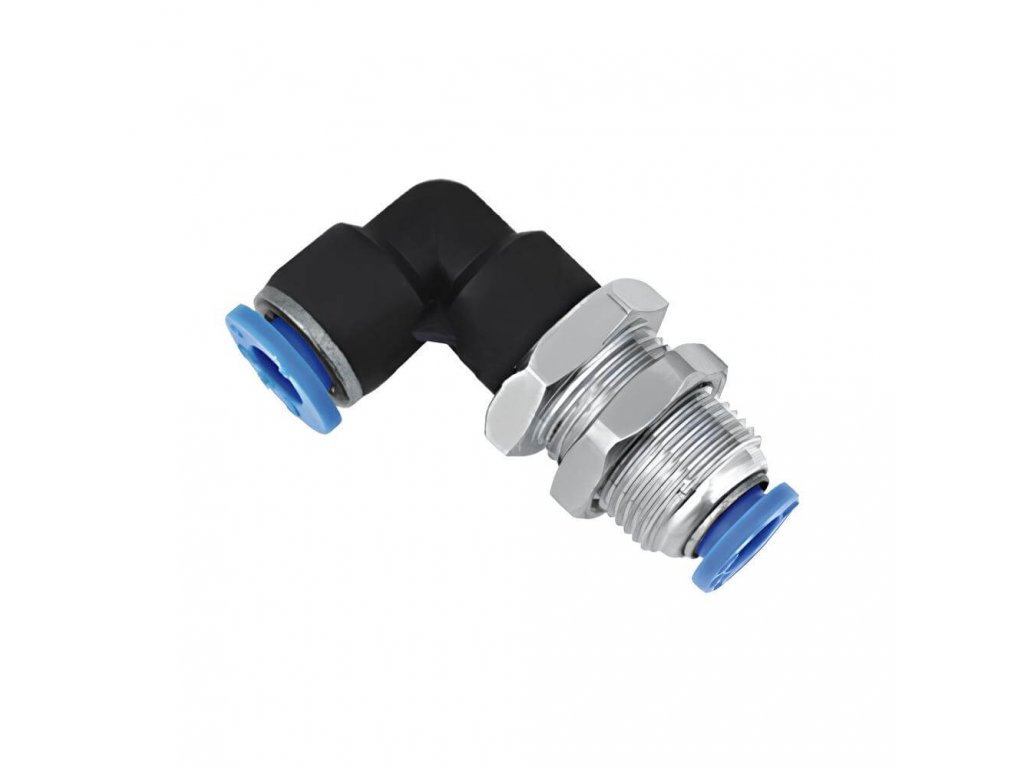

    Bulkhead l-coupling 6

    Code: PLM-6
    Tip
    Not rated
    221 Kč –9 %
    Bulkhead l-coupling 6
    221 Kč –9 % 199 Kč / pcs 164 Kč excl. VAT
    Stock (142 pcs)
    Delivery to:
    25.12.2024
    Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Detailed information

    Product detailed description

    Corner l-couplings in 6 mm plastic partition

    • Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
    • Materials used : nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Additional parameters

    Category: Bulkhead socket L-couplings bulkhead
    Pressure: 10 bars
    A tube: 6 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: -10 / +60 °C
    Thread design: Metric
    SW (key): 17
    Width: 21 mm
    Thread: M14 x 1
    Connection system: Plug-in system
