Portable oil-free compressor O15N-1.1-6CM příkon 1,1 kW, sací výkon 160 l/min, tlak 8 bar, bez vzdušníku, napětí 230/50 V/Hz
Code: O15N-1-1-6CMRelated products
Product detailed description

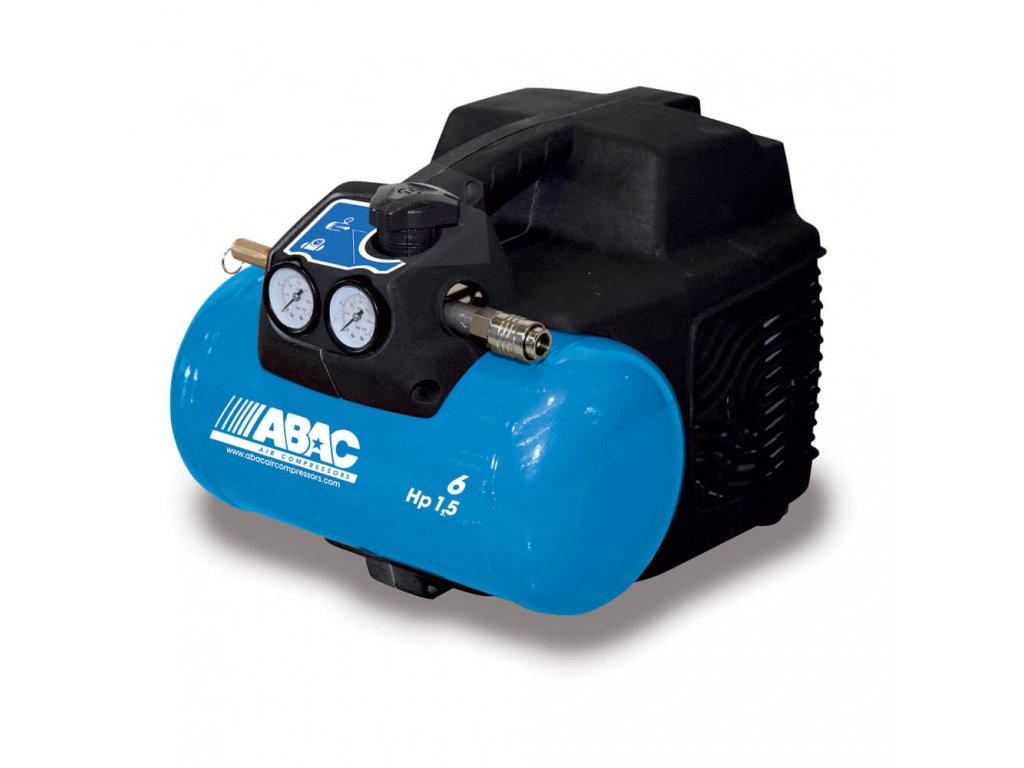

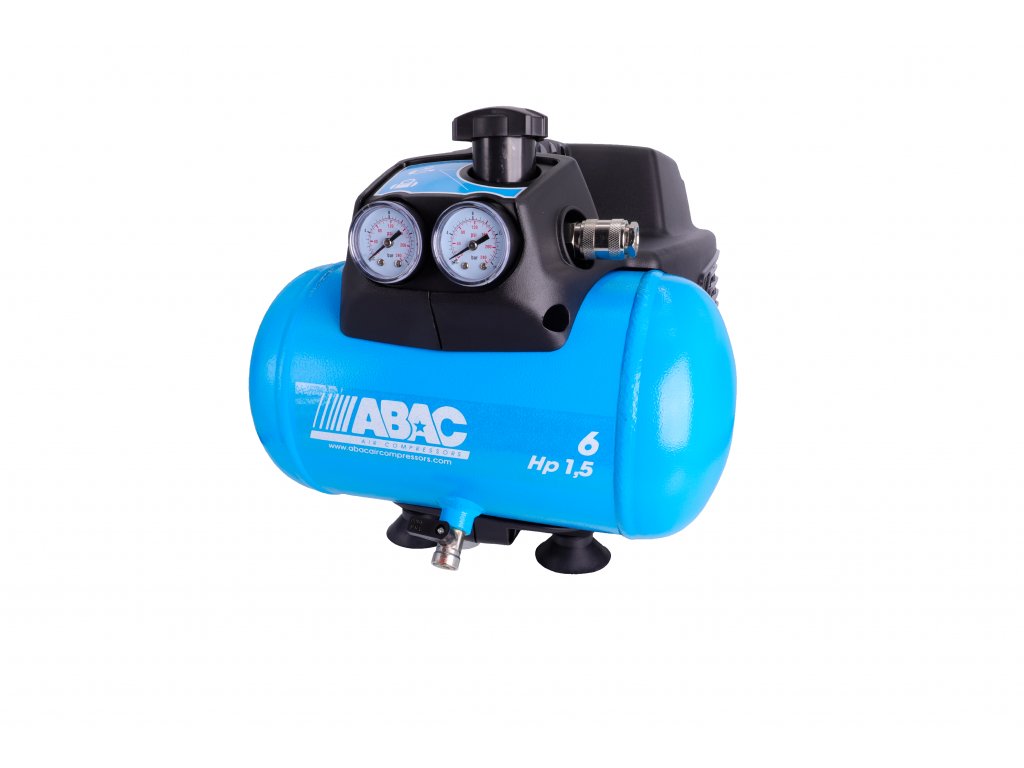

Oil-free portable piston compressor O15N-1,1-6CM
The compressor from the Line series in oil-free design with direct connection of the electric motor to the O15N compressor unit with suction power of 180 l/min is designed for tyre inflation, blowing of work surfaces and other smaller professional applications. The compressor has the following standard equipment:
- automatic operation control by pressure switch
- output via standard DN7,2 quick coupling
- pressure regulator included in delivery
- two pressure gauges for reading the outlet pressure and the pressure in the air tank
- 6 litre airbox with condensate release valve
- handle for easy handling of the machine
Easy installation and maintenance thanks to service videos available via the AIRTUBE app after downloading the QR code from the pressure vessel.
We provide a standard 2-year warranty on the compressor and a 10-year warranty on the rusting of the pressure vessel.
Additional parameters
| Category: | Professional reciprocating and screw compressors |
|---|---|
| Compressor type: | Piston compressor |
| Pressure: | 8 bar |
| Suction power: | 180 l/min |
| Displacement: | 102 l/min |
| Pressure vessel volume: | 6 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 1.1 kW |
| Mains voltage: | 230/50 V/Hz |
| Speeds: | 2,450 rpm |
| Number of cylinders: | 1 |
| Number of grades: | 1 degree |
| Lubrication: | Oil-free |
| Noise: | 90 dB - Lwa, 70 dB - Lwp(4m) |
| Dimensions: | 320 x 370 x 290 mm |
| Weight: | 10 kg |
| Accessories: | Silent blocks, Pressure regulator, Handle, Quick coupler |
| Retrieved from: | Semi-professional |
