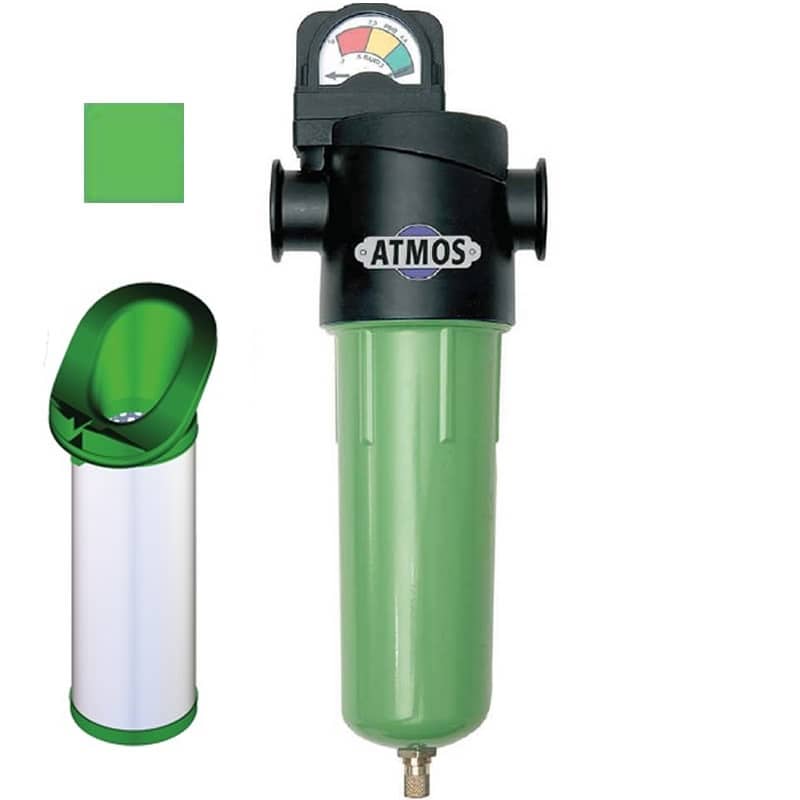

Prefilters for compressed air HF
Hankison is one of the leading manufacturers of compressed air filters. The products are renowned worldwide for their outstanding performance, long-standing proven reliability and, last but not least, superior performance. The NGF series is based on the application of the latest materials used for compressed air filtration. The air quality of the filters meets the internationally recognised ISO 8573 standard with ISO 12500 testing performance.
Professional filters for compressed air HF series |
||||||||||||
|
Dimensions of NGF filters for compressed air - HF series |
||||||||||
Model | Flow | Pressure | Weight | AND | B | C | D | Connecting | Spare | |
m³/h | l/min | bar | kg | mm | mm | mm | mm | R" | Insert | |
F02-B-HF | 34 | 566 | 16 | 0,8 | 113,6 | 205 | 171 | 102 | 1/4" | HF-02 |
F03-B-HF | 59 | 983 | 16 | 0,8 | 113,6 | 205 | 171 | 102 | 3/8" | HF-03 |
F04-B-HF | 85 | 1 416 | 16 | 0,9 | 113,6 | 252 | 216 | 102 | 1/2" | HF-04 |
F06-B-HF | 127 | 2 116 | 16 | 1,4 | 132 | 262 | 219 | 127 | 3/4" | HF-06 |
F07-B-HF | 175 | 2 916 | 16 | 1,4 | 132 | 262 | 218 | 127 | 3/4" | HF-07 |
F08-B-HF | 267 | 4 450 | 16 | 1,5 | 132 | 326 | 283 | 127 | 1" | HF-08 |
F10-B-HF | 437 | 7 283 | 16 | 3,8 | 200 | 336 | 276 | 178 | 1 1/2" | HF-10 |
F11-B-HF | 612 | 10 200 | 16 | 4,5 | 200 | 433 | 373 | 178 | 1 1/2" | HF-11 |
F12-B-HF | 681 | 11 350 | 16 | 5,3 | 200 | 566 | 505 | 178 | 2" | HF-12 |
F13-B-HF | 993 | 16 550 | 11 | 8,4 | 230,8 | 634 | 550 | 204 | 2 1/2" | HF-13 |
F14-B-HF | 1 317 | 21 950 | 11 | 8,4 | 230,8 | 634 | 550 | 204 | 2 1/2" | HF-14 |
F15-B-HF | 1 750 | 29 166 | 11 | 8,4 | 230,8 | 634 | 550 | 204 | 2 1/2" | HF-15 |
F16-B-HF | 2 039 | 33 983 | 11 | 12,5 | 230,8 | 817 | 732 | 204 | 3" | HF-16 |
F17-B-HF | 2 549 | 42 483 | 11 | 28,7 | 230,8 | 1 085 | 1 000 | 204 | 3" | HF-17 |
CORRECTION FACTOR |
|||||||||
OPERATING OVERPRESSURE bar | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 |
CORRECTION FACTOR | 0,63 | 0,75 | 0,88 | 1 | 1,13 | 1,38 | 1,65 | 1,87 | 2,13 |
