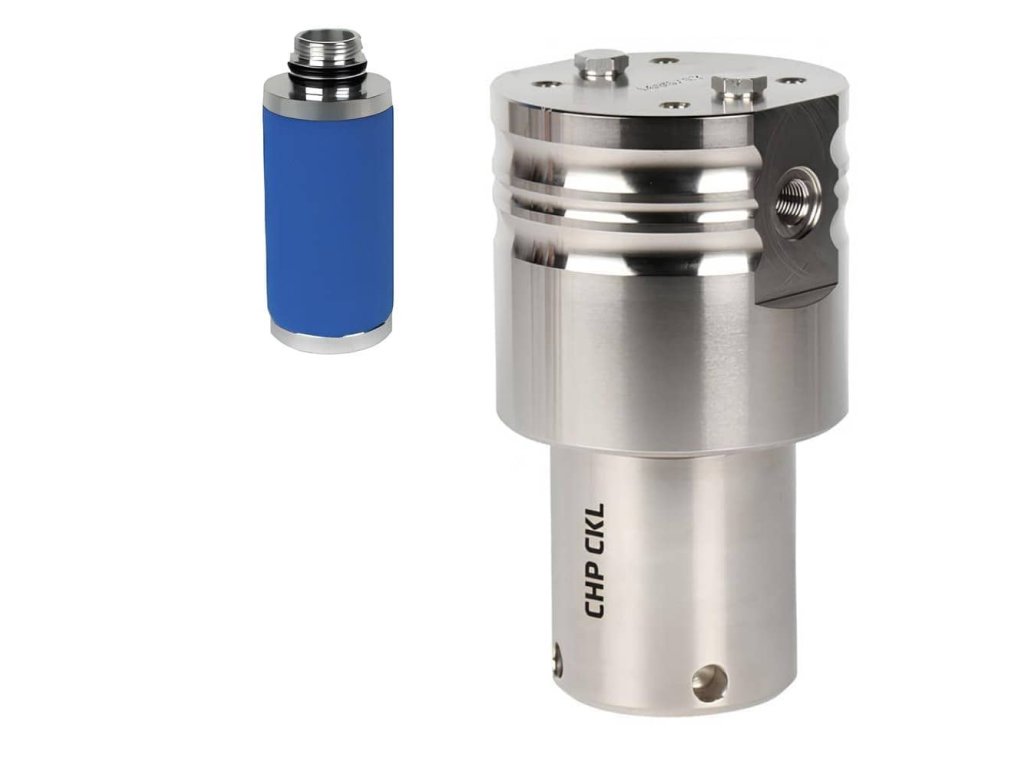

Dust filter CHP1R - 100 bar - 2"
Code: CHP1R-094Related products

Replacement filter cartridge CHPR-094V made of acrylic fibre, cellulose is used for dust filtration to 1 um purity from compressed air. The maximum compressed air flow of the...

Replacement filter cartridge CHPR-010V made of acrylic fibre, cellulose is used for dust filtration to a purity of 1 um from compressed air. The maximum compressed air flow rate...

The replacement filter cartridge CHPA-094V with activated carbon is used to absorb residual oil vapours and aerosols from compressed air to a level of 0.005 mg/m³. The maximum...

Replacement filter cartridge CHPB-010V with sintered bronze is used for coarse filtration to a purity of 15 um from compressed air. The maximum compressed air flow rate of the...

Replacement filter cartridge CHPM-047V made of borosilicate microfibre is used for fine filtration to a purity of 0.1 um from compressed air. The maximum compressed air flow...

Replacement filter cartridge CHPB-005V with sintered bronze is used for coarse filtration to a purity of 15 um from compressed air. The maximum compressed air flow rate of the...

Replacement filter cartridge CHPR-003V made of acrylic fibre, cellulose is used for dust filtration to a purity of 1 um from compressed air. The maximum compressed air flow rate...

Replacement filter cartridge CHPR-018V made of acrylic fibre, cellulose is used for dust filtration to a purity of 1 um from compressed air. The maximum compressed air flow of...

Replacement filter cartridge CHPP-030V made of acrylic fibre, cellulose is used for basic filtration to 3 um purity of compressed air. The maximum compressed air flow rate of...

Replacement filter cartridge CHPS-007V made of borosilicate microfibre is used for microfiltration to a purity of 0.01 um from compressed air. The maximum compressed air flow...

Replacement filter cartridge CHPR-030V made of acrylic fibre, cellulose is used for dust filtration to a purity of 1 um from compressed air. The maximum compressed air flow rate...

Replacement filter cartridge CHPM-010V made of borosilicate microfibre is used for fine filtration to a purity of 0.1 um from compressed air. The maximum compressed air flow...

Replacement filter cartridge CHPM-094V made of borosilicate microfibre is used for fine filtration to a purity of 0.1 um from compressed air. The maximum compressed air flow of...

Replacement filter cartridge CHPB-094V with sintered bronze is used for coarse filtration to a purity of 15 um from compressed air. The maximum compressed air flow of the...

Replacement filter cartridge CHPP-094V made of acrylic fibre, cellulose is used for basic filtration to 3 um purity of compressed air. The maximum compressed air flow of the...

Replacement filter cartridge CHPS-030V made of borosilicate microfibre is used for microfiltration to a purity of 0.01 um from compressed air. The maximum compressed air flow...
Product detailed description
CHP compressed air dust filter with 1 um filtration up to 100 bar - CHP1R-094
- series of filters designed for effective removal of solid impurities, oil, water, hydrocarbons, odours and vapours from compressed air
- nickel-plated carbon steel body, threaded connection with internal pipe threads
- operating temperature range +1.5 to +65 °C, maximum operating pressure 100 bar
- filter cartridge replacement intervals - 1 x per year or when the pressure gradient reaches 350 mbar
- scope of delivery - filter body and filter cartridge, without condensate drain - order separately
- reference flow conditions: temperature +20 °C, working pressure 7 bar; for other conditions a correction factor must be used for calculation - please contact us
Additional parameters
Category: | Air dust filters CHP1R up to 100 bar |
---|---|
Version: | Dust filter |
Pressure: | 100 bar |
Connecting: | 2" |
Dimensions: | 415 x 182 x 150 mm |
Filtration: | 1 um |
Filter insert: | CHPR-094V |
Material: | Carbon steel |
Condensate discharge: | Without release |
Working temperature: | +1.5 / +65°C |
Flow: | 11,917 l/min |
Residual oil: | <1 mg/m³ |
Quality class - oils: | 3 |
Quality class - solid impurities: | 3 |
