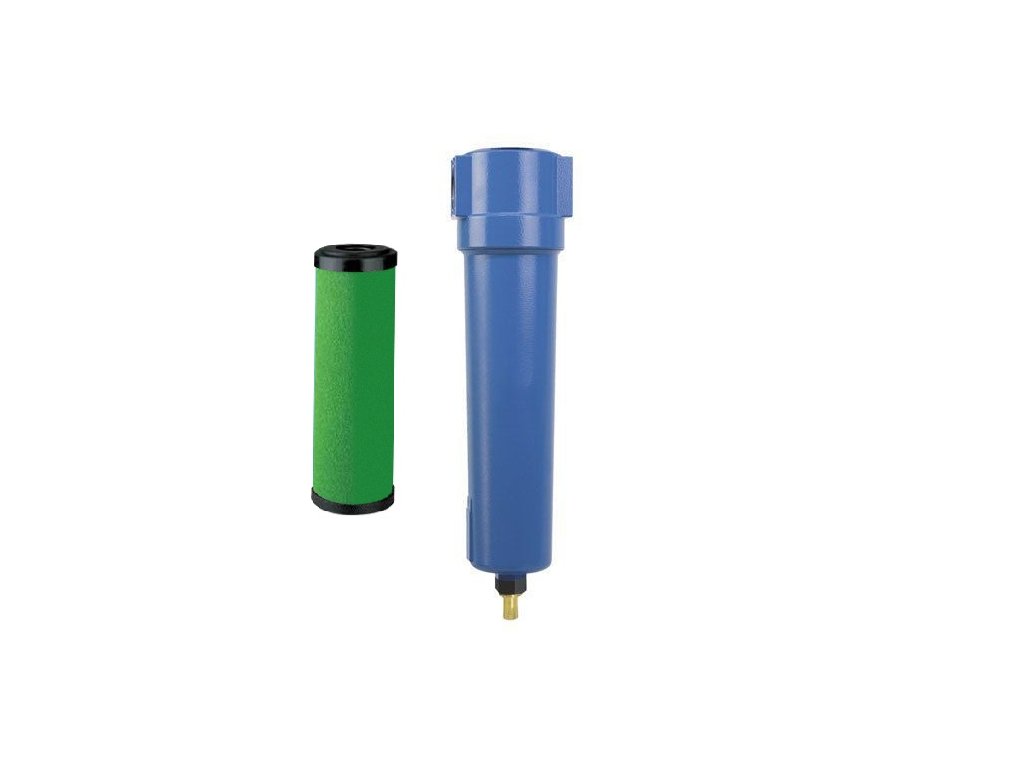

Pre-filter AFM 1" - 3,300 l/min
Code: AFM-33Related products
Product detailed description
Industrial compressed air filtration ISO 8573-1 - AF
Omega Air does what you needOur filter range offers solutions for small craftsmen as well as large industrial enterprises with continuous operation. Omega Air can provide a solution that delivers the reliability, cost effectiveness and high quality compressed air that most operations require. More than a set of partsWhen you need a filter cartridge, a pressure indicator, a condensate remover or a fully equipped filter, work with us as we are fully familiar with compressed air product needs and offer a wide selection of optional accessories. We are experts in product optimization systems, thanks to which our products contribute to a significant reduction in air system operating costs, increase the quality of the final products and reduce the risk of accidents. Omega Air...Better airOur technology, expertise and experience are applied to the AF Series filters, making this the best solution for achieving the best possible compressed air quality, regardless of the size of the plant. Quality firstThe quality of the products installed plays a key role in ensuring smooth and trouble-free operation and the proper functioning of production processes. Constant supervision by a notified person, strict production control and 100% output control of our products are the key to achieving high quality in all our products. |
 |
AF filtering properties |
Application |
| Working pressure: 16 bar |
|
| Flow rate at 7 bar : 60 - 2 760 m3/h | |
| Connection : 3/8" - 3" | |
| Standard color : RAL 5012 | |
| Body material : aluminum | |
| Air quality : ISO 8573-1 |
 |
Compressed air connectionInternal pipe threads are located on the filter body for connection to the compressed air pipe. For installing additional equipment or connecting multiple filters of the same size, holes are provided on the body to allow the filter to be mounted on the wall or on the compressor cabinet. |
 |
Body filter finishThe main purpose of the surface treatment is to protect the surface of the filter body from corrosion. The anodising technique allows the surface to be protected in areas that are difficult to reach with conventional painting. Anodized surface can be supplied as an option, cataphoresis painting can be offered on request. |
 |
View into the containerA view into the container allows easy inspection of the condensate accumulated in the lower part of the filter body. On each filter body casting, an area for mounting the sight glass is pre-prepared. |
 |
WS/WM - wall mounting kitMounting kits have been developed for easy mounting of the filter on a wall or other surface. Set includes 2 stainless steel brackets (which are mirrored) and 6 self-tapping screws. |
 |
AK - connecting setsThe AK mounting kit is designed to connect two or more filters together. The design of the mounting kit is universal and can be used for any type of filters, including filters from some other world manufacturers with pressures up to 20 bar. The connecting piece is equipped with a mounting bracket for attachment to a wall or other surface. |
Filtration stages according to ISO 8573-1
 |
 |
 |
 |
 |
|
Layers
|
Layers
|
Layers
|
Layers
|
Layers
|
|
|
|
|
|
 |
|
Layers
|
Layers
|
Layers
|
Layers
|
Optional AF filter accessory
 |
 |
 |
Additional parameters
| Category: | Industrial compressed air filters ISO 8573 |
|---|---|
| Version: | Prefilter |
| Pressure: | 16 bar |
| Connecting: | 1" |
| Dimensions: | 262 x 125 x 33 x 100 mm |
| Certification: | CE-PED-H, ISO 8573-1 (IUTA) |
| Filtration: | 0.1 µm |
| Filter insert: | AFM-33V |
| Material: | Aluminium |
| Vessel volume: | 1,6 l |
| Condensate discharge: | Automatic |
| Working temperature: | +1.5 / +65 °C |
| Flow: | 3,300 l/min |
| Residual oil: | <0,1 mg/m³ |
| Quality class - oils: | 2 |
| Quality class - solid impurities: | 2 |
