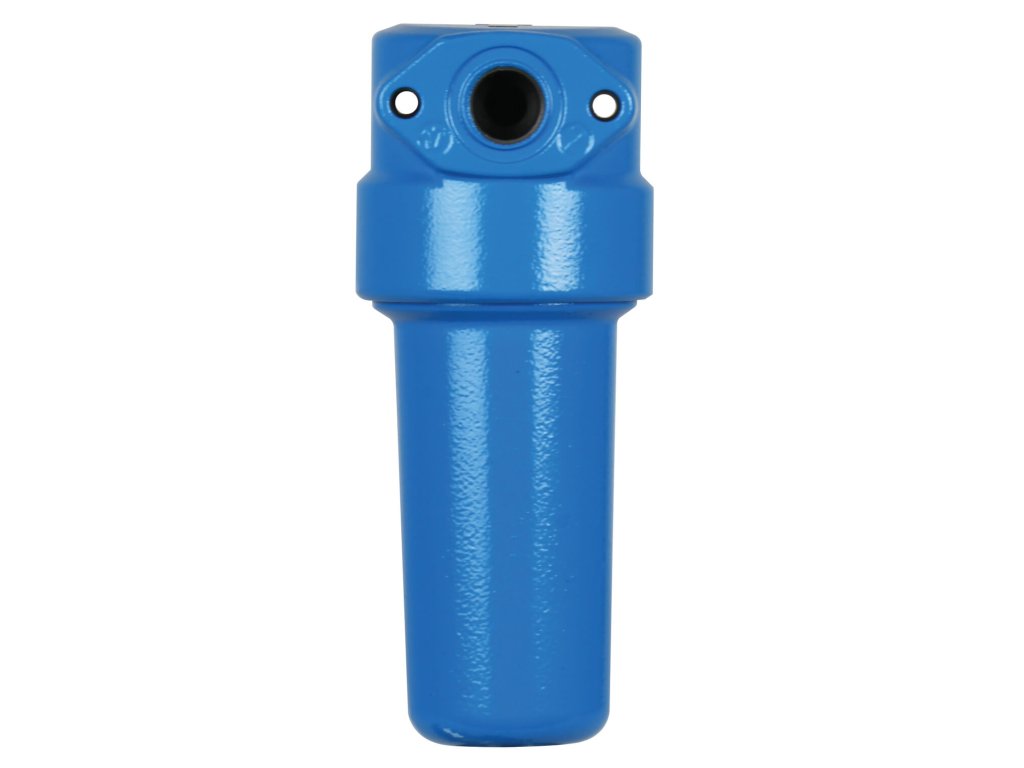

    Dust filter AAFR - 3/8" - 500 l/min

    Code: AAFR-30
    Tip
    Not rated
    Brand: OMEGA AIR
    3 870 Kč –2 %
    aaf t
    3 870 Kč –2 % 3 792 Kč / pcs 3 134 Kč excl. VAT
    up to 14 days
    Delivery to:
    10.12.2024

    AAFR dust filter in 3/8" design to remove dust impurities up to 1 um from compressed air according to ISO 8573-1 class 3. Body with easily removable container and designed for a flow rate of 500 l/min. Special coating to prevent corrosion, for long filter life, automatic condensate drainage from the container by means of AOK16B float drain. The residual oil content is less than 1 mg/m3.

    Detailed information

    Related products

    vlozka aafr
    Original parts
    795 Kč –2 %
    Replacement dust filter insert - AAFR-25V
    Stock (4 pcs)
    644 Kč excl. VAT
    779 Kč

    Replacement dust filter cartridge with 1 µm filtration capacity for OMEGA AIR AAFR-25 and AAFR-30 filters. Recommended replacement 12 months or every 4,000 MH and when clogging...

    Code: AAFR-25V
    PDI16
    Original parts
    702 Kč –1 %
    AF air filter cartridge contamination indicator
    Stock (12 pcs)
    569 Kč excl. VAT
    688 Kč

    Simple mechanical device for checking the condition of the filter cartridge. Contributes to reducing power consumption by alerting to high pressure gradients. If the filter...

    Code: PDI
    Differential manometer filters AF - MDM60
    Original parts
    2 210 Kč –1 %
    Differential manometer filters AF - MDM60
    Stock (1 pcs)
    1 790 Kč excl. VAT
    2 166 Kč

    Designed to accurately display the pressure gradient value of the filter cartridge. Dial with coloured fields - red to indicate both wear and tear of the insert. Optimized...

    Code: MDA60
    mdm40 diferencni manometr indikace filtru
    Original parts
    1 559 Kč –1 %
    Differential manometer filters AF - MDM40
    Stock (5 pcs)
    1 263 Kč excl. VAT
    1 528 Kč

    MDM40 - basic version. Magnetic differential pressure gauges for displaying the orientation state of the filter cartridge. Fitted with dial with indicative scale and green/red...

    Code: MDM40
    mdm40 diferencni manometr indikace filtru
    Original parts
    2 177 Kč –2 %
    Differential manometer filters AF - MDM40C
    up to 14 days
    1 763 Kč excl. VAT
    2 133 Kč

    MDM40C - version with voltage-free electrical contact for remote alarm signalling. Magnetic differential pressure gauges for displaying the orientation state of the filter...

    Code: MDM40C
    mdm60 diferencni manometr indikace filtru
    Sellout Original parts
    2 406 Kč –2 %
    Differential manometer filters AF - MDM60E
    Stock (1 pcs)
    1 949 Kč excl. VAT
    2 358 Kč

    Magnetic differential pressure gauges to indicate the pressure gradient of the filter cartridge. MDM60E - equipped with LED signalling when the insert is dropped. Designed for...

    Code: MDM60E
    AOK16B plovakovy odpoustec kondenzatu
    Original parts
    1 114 Kč –1 %
    Float release AOK16B
    up to 14 days
    902 Kč excl. VAT
    1 092 Kč

    Float valve for condensate discharge from compressed air system working on float principle. Version AOK16B for internal mounting of filter vessels using 1/2" thread.

    Code: AOK16B
    aok13paplovakovy odpoustec kondenzatu
    Original parts
    1 264 Kč –2 %
    AOK13PA float release
    up to 14 days
    1 023 Kč excl. VAT
    1 238 Kč

    Float-operated condensate drain valve for compressed air systems up to 13 bar. Version AOK13PA for external mounting on the filter body with 1/2" thread.

    Code: AOK13PA
    AOK20Bplovakovy odpoustec kondenzatu
    Original parts
    1 758 Kč –1 %
    AOK20B float release
    up to 14 days
    1 424 Kč excl. VAT
    1 723 Kč

    Float-operated condensate drain valve for compressed air systems up to 20 bar. Version AOK20B for external mounting on the filter body with 1/2" thread.

    Code: AOK20B
    td16m odpoustec kondenzatu vysokotlak kompresor bar nerez (1)
    New Original parts
    3 339 Kč –2 %
    Time condensate drain TD16M
    up to 14 days
    2 704 Kč excl. VAT
    3 272 Kč

    Electronic timed condensate drain for compressed air systems up to 16 bar, operating on a time switching valve. External mounting on the filter body with 1/2" thread. Simple...

    Code: TD16M
    IED elektronicky odpoustec kondenzatu filtru omega air
    Original parts
    3 497 Kč –2 %
    Electronic condensate drain IED
    up to 14 days
    2 832 Kč excl. VAT
    3 427 Kč

    Electronic IEDs are primarily designed to drain condensed water from filter vessels. Equipped with LED indicator and test button. Operating temperature +1,5 °C to +65 °C,...

    Code: IED
    IED elektronicky odpoustec kondenzatu filtru omega air
    Original parts
    5 591 Kč –2 %
    IEDC electronic condensate drain
    up to 14 days
    4 528 Kč excl. VAT
    5 479 Kč

    The IEDC electronic skimmers with alarm output for remote monitoring and with the possibility of service connection for obtaining operating data from the device are primarily...

    Code: IEDC
    Wall mounting kit for AAF-W1M filters
    Original parts
    1 985 Kč –1 %
    Wall mounting kit for AAF-W1M filters
    Stock (3 pcs)
    1 608 Kč excl. VAT
    1 946 Kč

    Kit for wall mounting and connecting filters. The set consists of two angles that are attached to the edges of the filter and allow subsequent mounting on the wall. Connecting...

    Code: AAF-W1M
    Wall mounting kit for AAF-W2M filters
    Original parts
    2 123 Kč –2 %
    Wall mounting kit for AAF-W2M filters
    Stock (1 pcs)
    1 719 Kč excl. VAT
    2 080 Kč

    Kit for wall mounting and connecting filters. The set consists of two angles that are attached to the edges of the filter and allow subsequent mounting on the wall. Connecting...

    Code: AAF-W2M
    Wall mounting kit for AAF-W3M filters
    Original parts
    2 232 Kč –1 %
    Wall mounting kit for AAF-W3M filters
    Stock (1 pcs)
    1 808 Kč excl. VAT
    2 188 Kč

    Kit for wall mounting and connecting filters. The set consists of two angles that are attached to the edges of the filter and allow subsequent mounting on the wall. Connecting...

    Code: AAF-W3M
    aaf spoj sady
    Original parts
    1 299 Kč –2 %
    AAF-2M filter connection kit
    Stock (3 pcs)
    1 052 Kč excl. VAT
    1 273 Kč

    Set for connecting 2 filters of the OMEGA AIR AAF series in sizes 25 - 30. Fast and elegant installation that everyone can handle.

    Code: AAF-2M
    Show all related products Previous product Next product

    Product detailed description

    Dust filter for compressed air up to 1 um - AAFR-30

    Předfiltrace stlačeného vzduchu kompresoru do 1 um
    • dust filter 1 µm
    • use as a coalescing pre-filter for smaller solid impurities and dust particles
    • filtration according to ISO 8573-1 class 3-x-x
    • filter material: borosilicate microfibers
    • condensate drainage from the vessel by float drain AOK16B
    • operating temperature +1.5 to +65 °C
    • working pressure 16 bar
    • reference flow conditions: ambient temperature +20 °C, inlet air temperature +35 °C, working pressure 7 bar; for other conditions a correction factor must be used for the calculation - please contact us

    Filtrační stupně stlačeného vzduchu ISO 8573-1

    Jednotlivé filtrační vložky filtrů stlačeného vzduchu AAF OMEGA AIR

    Schéma filtru stlačeného vzduchu od kompresoru AAF

    Příslušenství k filtrům stlačeného vzduchu AAF do 16 bar od kompresoru

    Additional parameters

    Category: AAFR compressed air dust filters
    Version: Dust filter
    Pressure: 16 bar
    Connecting: 3/8"
    Dimensions: (A)145 x (B)73 x (C)18 x (D)50 mm
    Certification: CE-PED-H, ISO 8573-1 (IUTA)
    Filtration: 1 um
    Filter insert: AAFR-25V
    Material: Aluminium
    Condensate discharge: Automatic
    Working temperature: +1.5 / +65 °C
    Flow: 500 l/min
    Residual oil: <1 mg/m³
    Quality class - oils: -
    Quality class - solid impurities: 3
