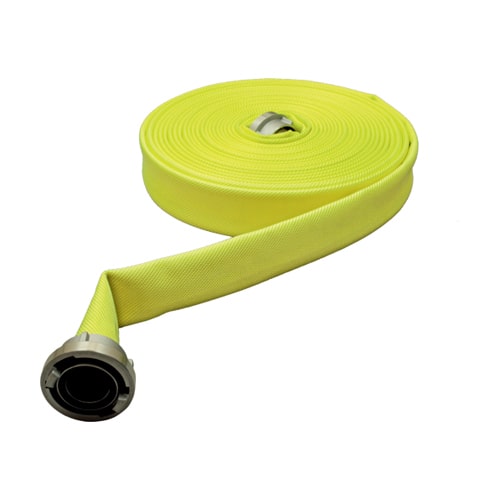

Fire hoses EC reflective design
- fire hoses with reflective yellow colour visible in darkness and smoke, certified according to DIN 14811
- supplied in L1, L2, L3 performance classes with different service life and performance parameters
- minimum number of windings for hose C/42 and C/52: grade L1 200, L2 400 and L3 600; for hose B/75: grade L1 80, L2 120, L3 140
- made of 100% synthetic polyester yarn with black EPDM inner liner
- durability of colour due to fibre dyeing before production; resistant to ageing, abrasion and rot, flame retardant
- in metre gauge or with Storz terminals in the required lengths, standard forged aluminium couplings fixed with wire braid
- designed for volunteer and professional fire brigades requiring hose visibility in darkness and smoke
Reflective fire hoses ESL1 - according to DIN 14811, class 1 L1 |
|||||||||
| Ordering number |
Average mm |
Pressure bar | Temperature °C |
Weight kg/m |
Packaging m |
 |
|||
| metrage | with endings | working | defective | ||||||
| ESL1-25 | ESL1-D25-... | 25 | 16 | 60 | -40/+100 | 0,14 | 100 | ||
| ESL1-42 | ESL1-C42-... | 42 | 16 | 60 | -40/+100 | 0,23 | 100 | ||
| ESL1-52 | ESL1-C52-... | 52 | 16 | 60 | -40/+100 | 0,28 | 100 | ||
| ESL1-75 | ESL1-B75-... | 75 | 16 | 60 | -40/+100 | 0,49 | 100 | ||
| ESL1-110 | ESL1-A110-... | 110 | 12 | 35 | -40/+100 | 0,78 | 100 | ||
| Please note: when ordering Storz hoses with forged aluminium hose ends, please specify the desired length in the order number instead of the three dots symbol : 5, 10, 15, 20, 25 and 30 metres. | |||||||||

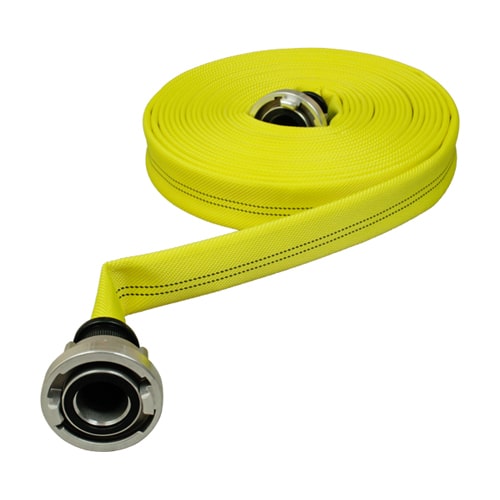

Reflective fire hoses ESL2 - according to DIN 14811, class 1 L2 |
|||||||||
| Ordering number |
Average mm |
Pressure bar | Temperature °C |
Weight kg/m |
Packaging m |
 |
|||
| metrage | with endings | working | defective | ||||||
| ESL2-42 | ESL2-C42-... | 42 | 16 | 60 | -40/+100 | 0,24 | 100 | ||
| ESL2-52 | ESL2-C52-... | 52 | 16 | 60 | -40/+100 | 0,31 | 100 | ||
| ESL2-75 | ESL2-B75-... | 75 | 16 | 60 | -40/+100 | 0,50 | 100 | ||
| Please note: when ordering Storz hoses with forged aluminium hose ends, please specify the desired length in the order number instead of the three dots symbol : 5, 10, 15, 20, 25 and 30 metres. | |||||||||

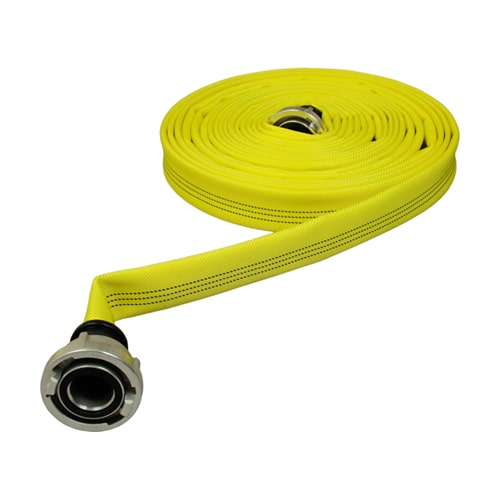

Reflective fire hoses ESL3 - according to DIN 14811, class 1 L3 |
|||||||||
| Ordering number |
Average mm |
Pressure bar | Temperature °C |
Weight kg/m |
Packaging m |
 |
|||
| metrage | with endings | working | defective | ||||||
| ESL3-42 | ESL3-C42-... | 42 | 16 | 60 | -40/+100 | 0,25 | 100 | ||
| ESL3-52 | ESL3-C52-... | 52 | 16 | 60 | -40/+100 | 0,33 | 100 | ||
| ESL3-75 | ESL3-B75-... | 75 | 16 | 60 | -40/+100 | 0,54 | 100 | ||
| Please note: when ordering Storz hoses with forged aluminium hose ends, please specify the desired length in the order number instead of the three dots symbol : 5, 10, 15, 20, 25 and 30 metres. | |||||||||
