    Piping for SQ compressed air distribution

    Plastové trubky PA12 systému rozvodů stlačeného vzduchu SQ

    In the SQ piping system there are 2 pipe variants - aluminium and PA12. PA12 versions can be supplied in rolls or bars. Both variants are characterized by very easy preparation for application, no risk of corrosion, resistance to UV radiation and long service life. Practical clips are available for attaching the pipes to the wall. Blue colour of the piping for the typical designation of compressed air in the industry.

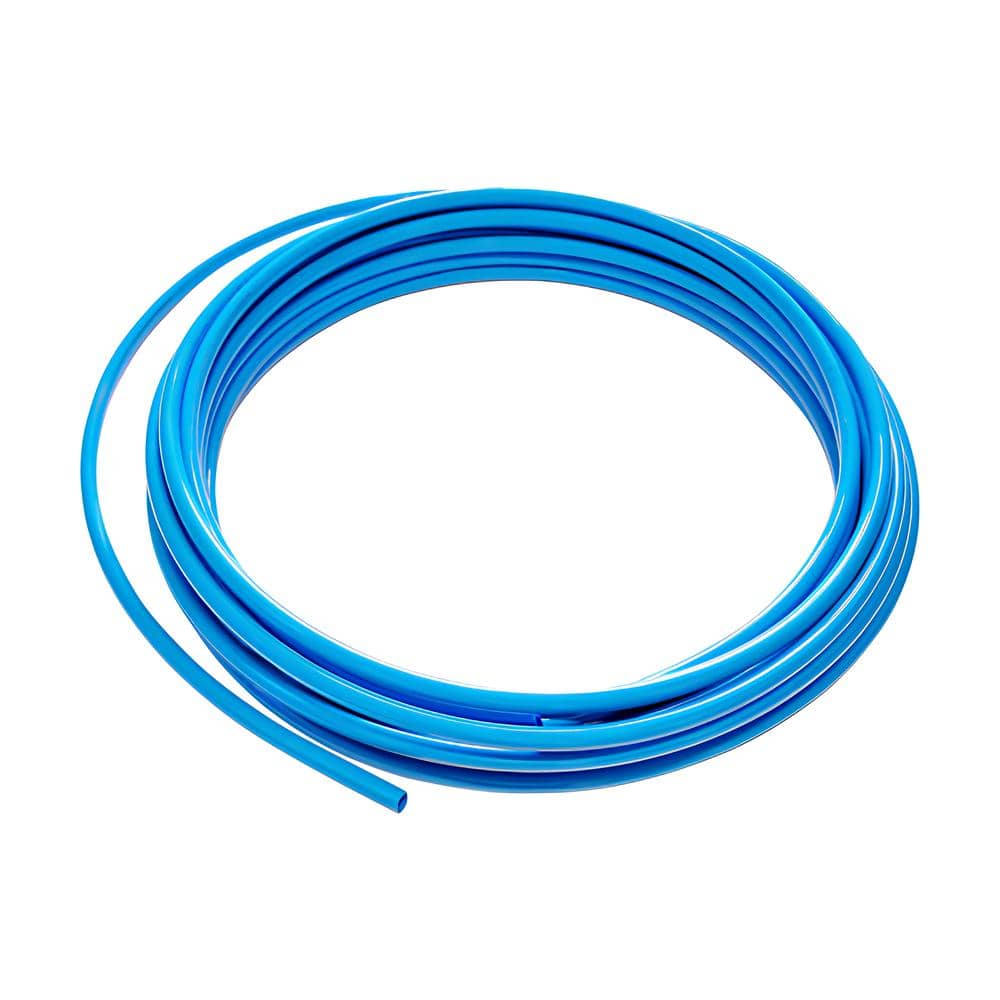

    PA12 air ducting in 25 m rolls
    Ordering
    number    		 Execution Diameter mm Pressure bar Weight
    g/m    		 Roll packing
    m    		 Plastová trubka PA12 role 25 m pro rozvody stlačeného vzduchu
    blue external internal working
    TPAB-R25-15 25 m roll 15 12 14 67 25
    TPAB-R25-18 25 m roll 18 14 12 82 25
    TPAB-R25-22 25 m roll 22 18 13 132 25
    TPAB-R25-28 25 m roll 28 23 10 172 25
    Important Note : Rolls are supplied in full 25m packs only.

    PA12 air piping in 4 m rods
    Ordering
    number    		 Execution Diameter mm Pressure bar Weight
    g/m    		 Packing stick
    m    		 Plastová trubka PA12 pro rozvody stlačeného vzduchu
    blue external internal working
    TPAB-T4-15 4 m pole 15 12 16 67 4
    TPAB-T4-18 4 m pole 18 14 17 82 4
    TPAB-T4-22 4 m pole 22 18 15 132 4
    TPAB-T4-28 4 m pole 28 23 14 172 4
    Important notice : Tubes are only supplied in full 4 m bars

    Aluminium tubes TALB - only whole bars 3 and 6 m
    Order
    number    		 Execution Diameter mm Pressure bar Weight
    g/m    		 Packing stick
    m    		 ALB6-trubka-hlinik-alunet
    blue external internal working
    TALB-T6-15 6 m pipe 15 12 12,5 180 6
    TALB-T6-18 6 m pipe 18 15 12,5 210 6
    TALB-T6-22 6 m pipe 22 19 12,5 240 6
    TALB-T6-28 6 m pipe 28 25 12,5 310 6
    TALB-T3-15 3 m pipe 15 12 12,5 180 3
    TALB-T3-18 3 m pipe 18 15 12,5 210 3
    TALB-T3-22 3 m pipe 22 19 12,5 240 3
    TALB-T3-28 3 m pipe 28 25 12,5 310 3
    Important notice : Tubes are only supplied in full 6 m bars

    Curved aluminum tubes ALZB1
    Ordering
    number    		 Diameter mm Dimension mm Pressure
    bar    		 Weight
    g/m    		 Color Zahnuté trubky pro rozvody vzduchu SB100
    blue rebound length
    ALZB-1-15 15 mm 110 435 16 120 blue
    ALZB-1-22 22 mm 160 550 16 209 blue
    Important notice : tubes can only be ordered in 1 piece

    ALZB2 bent aluminum tubes
    Ordering
    number    		 Diameter mm Dimension mm Pressure
    bar    		 Weight
    g/m    		 Color Zahnuté trubky pro rozvody vzduchu SB103
    blue rebound length
    ALZB-2-15 15 mm 95 470 16 103 blue
    ALZB-2-22 22 mm 122 463 16 140 blue
    Important notice : tubes can only be ordered in 1 piece

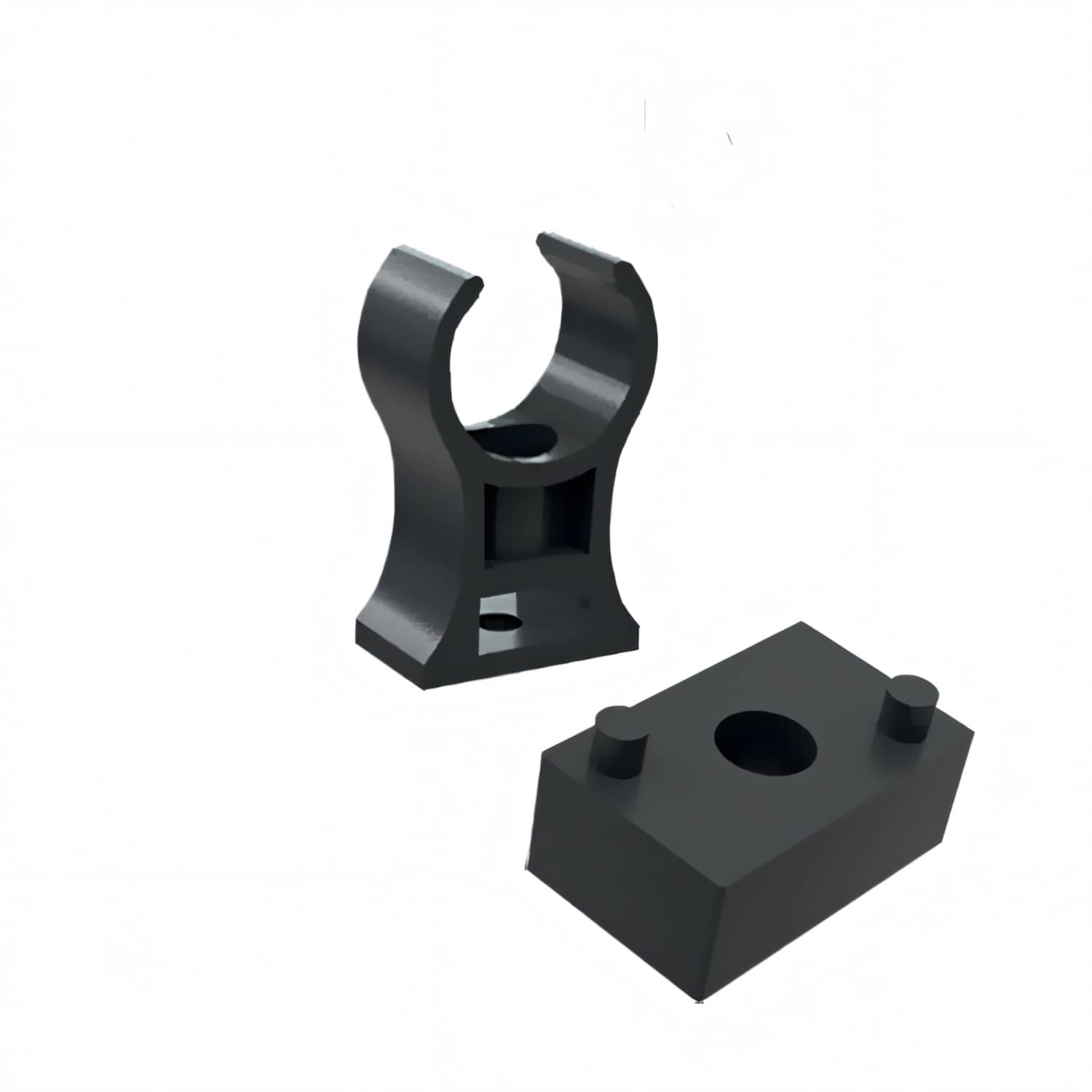

    Clamps for compressed air pipes
    Příchytky pro rozvody potrubní systému SQ Ordering
    number    		 For pipes
     (mm)    		 Height to center
     (mm)
    SCQP-15 15 25
    SCQP-18 18 25
    SCQP-22 22 35
    SCQP-28 28 35
    SQCC demarcation base, height 10 mm
