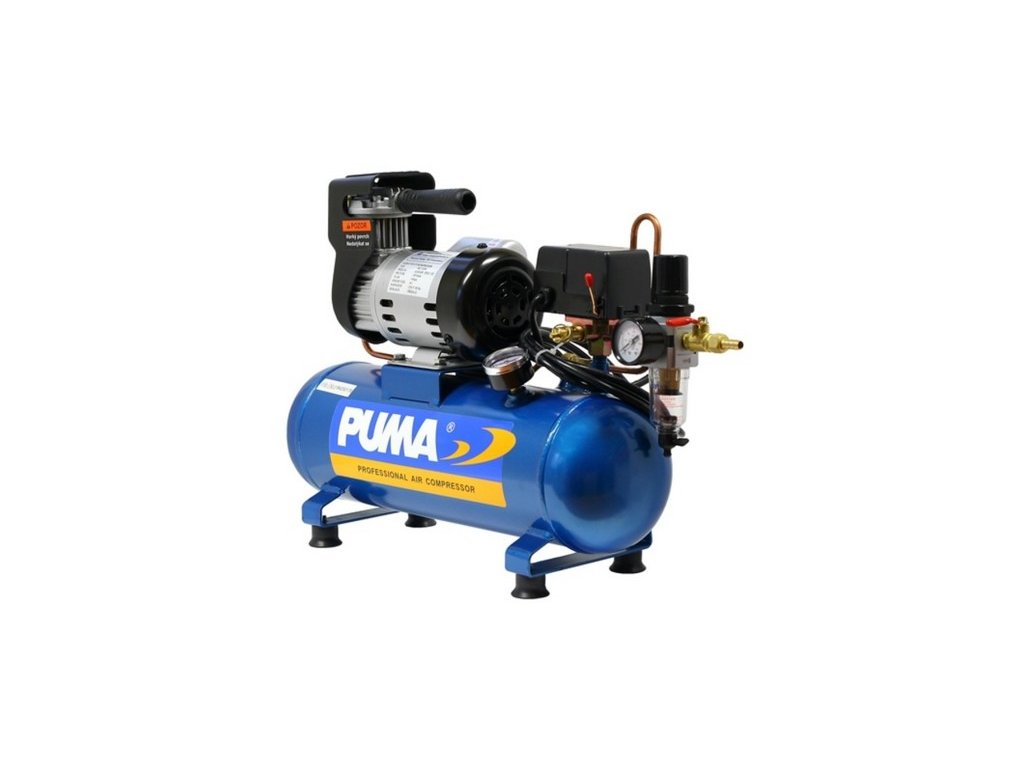

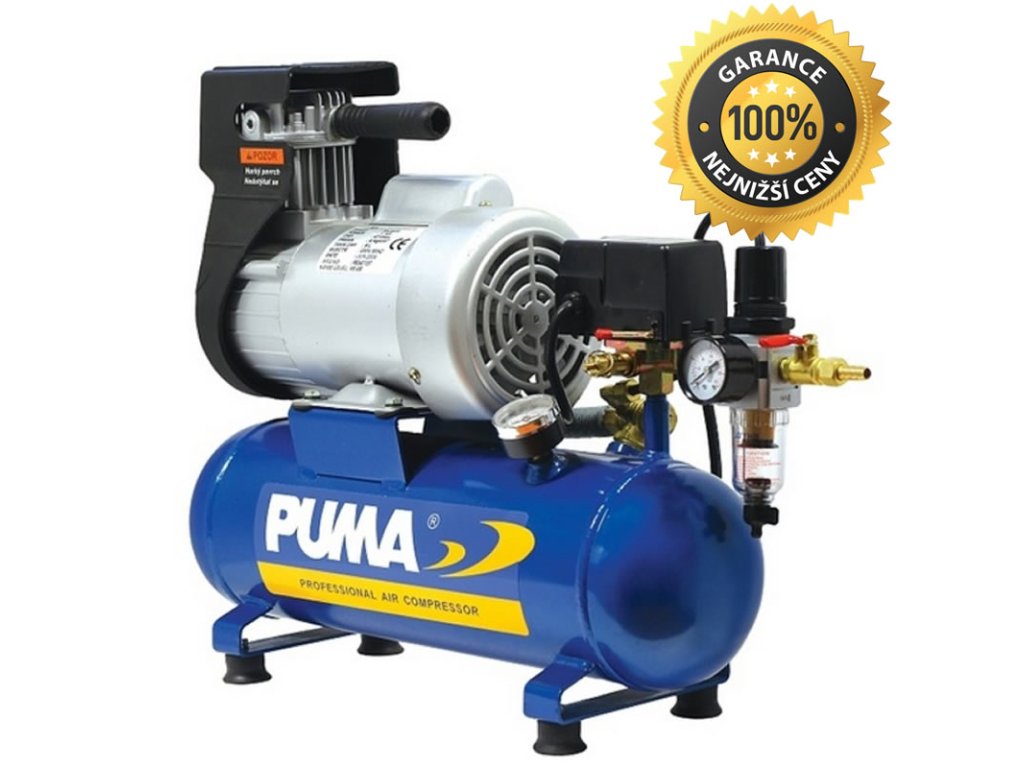

Food Compressor MC5606
Code: MC5606Product detailed description
Main advantages of compressors PUMA
Oil-free technology
Long service life
Quiet operation
Automatic operation
Certification
The compressors have a complete set of certifications for food applications.
ISO-9001:2001 quality management system
Declaration of Conformity (CE)
Directive 97/23/EC - Pressure vessel safety
Directive 2000/14/EC - Outdoor noise
Directive 98/37/EC - Safety of machinery (MD)
Directive 2004/108/EC - Electromagnetic compatibility (EMC)
Directive 2006/95/EC - Electrical equipment within specified voltage limits (LVD)
Fully equipped compressor
Intake air filter
Draining condensate from the storage tank
Tank pressure gauge, safety valve
Automatic adjustable start-stop control according to tank pressure
Inlet pressure regulator with second pressure gauge and G1/4" outlet thread
Compressed air filter with condensate container with forgiveness
Carrying handle, non-slip rubber feet
Power supply 230V, 50 Hz
Beer as it should be |
|
 |
The PUMA MC5606 compressor has been specially developed for the pressurization of beer kegs and for use in restaurants and the food industry. The compressor pumps clean air into the beer barrel, so that the beer retains its original taste and is not contaminated with impurities or oversaturated with carbon dioxide . The compressor is equipped is designed for automatic operation and minimal maintenance. The low weight of the compressor (12 kg) and the handle located above the centre of gravity of the compressor allow easy handling. |
Main advantages |
|
 |
|
Compressor equipment |
|
 |
|
|
Declaration of Conformity (CE)
|
|
Connecting the compressor |
|
 |
The outlet of the compressor is equipped with a straight outlet for 8 mm hose or 1/4G thread. Before the outlet there is a cap, a pressure gauge and a pressure regulator. The compressor automatically regulates the output pressure, starts and stops automatically and no operator is required during operation. |
Compressor pressure vessel |
|
 |
The compressor is equipped with a very strong, welded steel tank with a capacity of 6l. The steel tank is suitable for beer tapping and most food applications. For special super clean applications, a stainless steel tray can be used . |
Air filtration |
|
|
The purity of the outlet air is ensured by two-stage filtration. The intake air passes through the inlet filter and the outlet air is purified in the pressure regulator. Two-stage filtration prevents clogging the compressor with impurities and allows the generation of very clean compressed air. |
Additional parameters
| Category: | Professional reciprocating and screw compressors |
|---|---|
| Version: | Piston compressor |
| Pressure: | 4 bars |
| Displacement: | 65 l/min |
| Pressure vessel volume: | 6 L |
| Design of pressure vessel: | Lying down |
| Connecting: | 1/4", mandrel 8 mm |
| Motor power: | 0.75 kW |
| Mains voltage: | 230/50 V/Hz |
| Speeds: | 1400 rpm |
| Number of cylinders: | 1 |
| Number of grades: | 1 degree |
| Lubrication: | Oil-free |
| Noise: | 67 dB(A) |
| Dimensions: | 470 x 180 x 420 mm |
| Weight: | 12 kg |
| Warranty: | 2 years |
| Gift: | Regulator with 20 um filter |
| Accessories: | Silent blocks, Handle |
