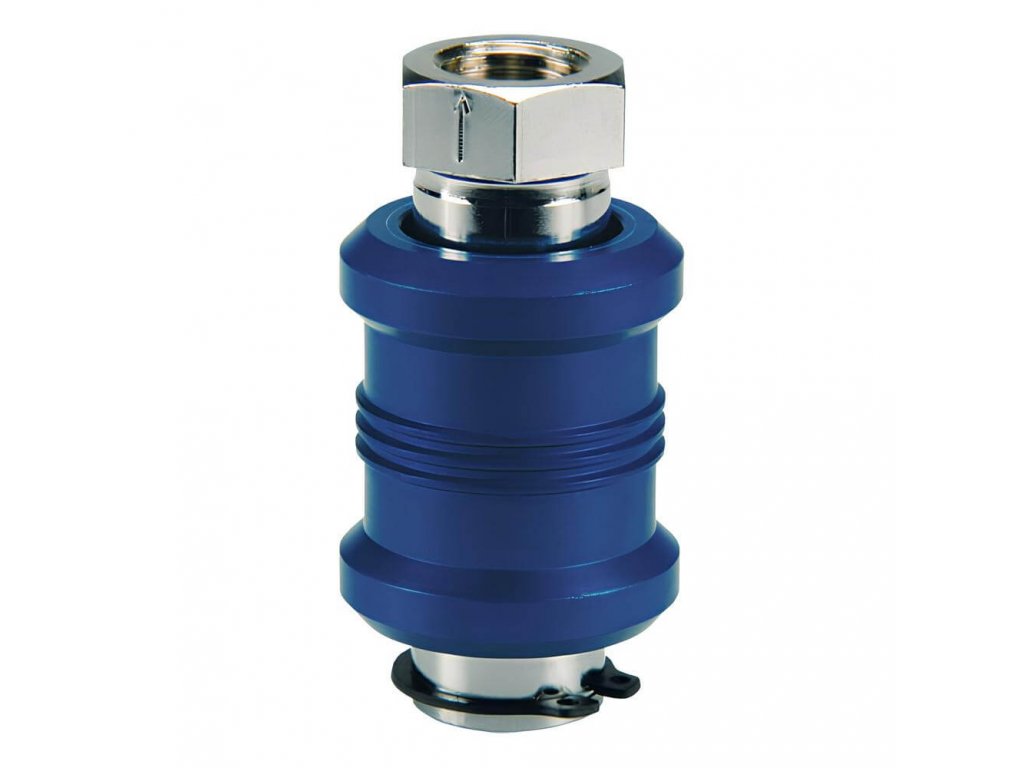

Sliding small valve with internal thread with exhaust G1/8"
Code: V26-18Product detailed description
Sliding hand valve with female thread with blow-off V26-18
- in aluminium/brass design
- supplied with pipe threads
- manual slide valves are designed for closing and venting pneumatic systems
- designed especially for automation, measuring and control technology

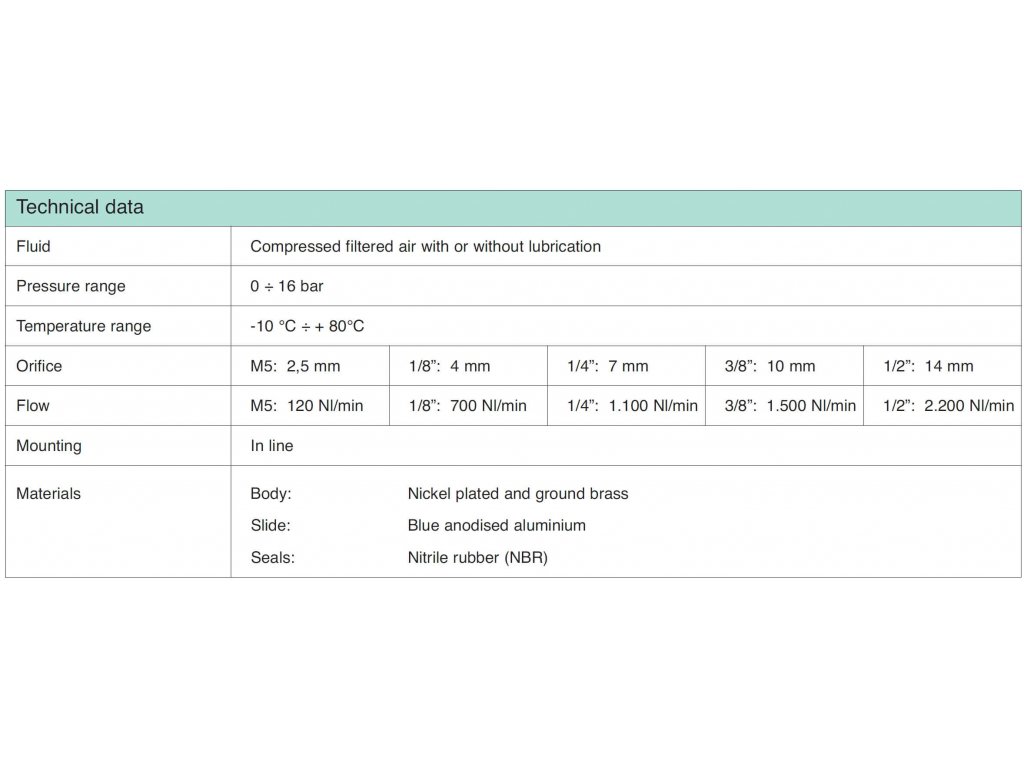

Additional parameters
| Category: | Sliding hand valves internal threads with blow-off |
|---|---|
| Pressure: | 10 bars |
| Material: | Brass, Aluminium |
| Medium: | Compressed air |
| Working temperature: | -10 / +80 °C |
| Flow: | 700 l/min |
| Thread: | G 1/8" |
| Connection system: | Threaded fitting |
