Relief valve 6217 in 3/4" thread size with a flow rate of up to 2,343 m³/hr to discharge high pressure compressed air. Delivery including protocol for setting to the required pressure and sealing. Pressure Equipment Directive 97/23/EG (PED) upon written request to ASME Code Section VIII.

Detailed information

Product detailed description

Pressure relief valve 6217.34 for air and inert gases

  • Relief valves are used to release compressed air from the distribution system in case of excessive pressure load
  • Delivery including setting protocol ; the safety valve is delivered set to the required pressure and sealed
  • Full lift design with external thread and free exhaust to atmosphere
  • Can be used not only for compressed air but also for similar gases
  • Designed for compressed air as a safety feature in pipelines and on pressure vessels

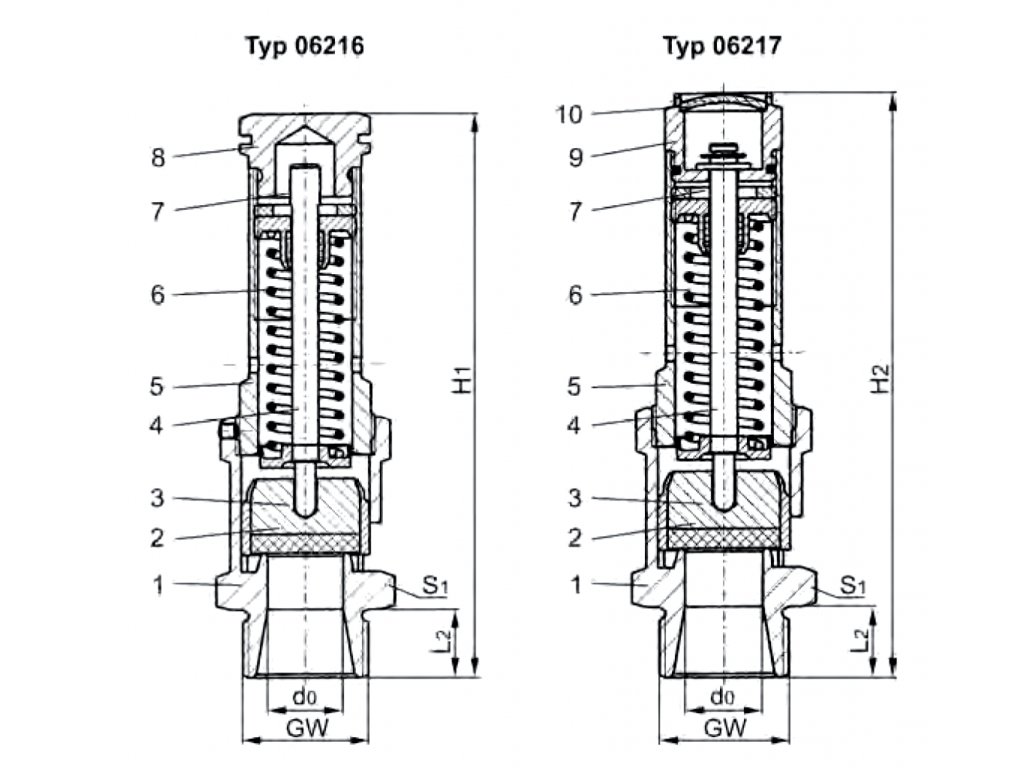

Safety pressure relief valve in version 6217

Pojistný ventil tlaku pro stlačený vzduch 6217 Ordering
number
Thread
"
Luminosity
DN
Pressure setting
bar
Temperature
°C
Material Seals
6217.12 1/2" 12 0,2-25 -40/+200 brass FKM
6217.34 3/4" 15 0,2-30 -40/+200 brass FKM
6217.10 1" 20 0,2-30 -40/+200 brass FKM
6217.54 1 1/4" 25 0,2-22 -40/+200 brass FKM
6217.15 1 1/2" 32 0,2-16 -40/+200 brass FKM
6217.20 2" 40 0,2-12 -40/+200 brass FKM
Please note: We only supply relief valves set to the required pressure in 0.1 bar increments - please specify when ordering

Relief valve flows 6217

Opening pressure ( bar ) 2 4 6 8 10 12 14 16 18 20
Order number Discharge capacity in m³/h
6217.12 200 346 488 632 775 917 1059 1201 1343 1499
6217.34 317 542 763 987 1211 1433 1655 1877 2099 2343
6217.10 495 847 1194 1544 1894 2241 2588 2935 3281 3663
6217.54 752 1287 1815 2346 2878 3405 3933 4460 4987 5567
6217.15 1214 2050 2890 3736 4583 5423 6262 7102 - -
6217.20 2198 3970 5681 7406 9131 10842 - - - -

Additional parameters

Category: Relief valves for compressed air and inert gases 6217
Pressure: 30 bar
Certification: Including certification
Material: Brass
Medium: Compressed air, Inert gases
Settings: 0.2 - 30 bar
Working temperature: -40 / +200 °C
Lightness: DN 15
Seals: FKM
Thread: G 3/4"
