    Pressure relief valves in stainless steel

    Pojistný ventil tlaku 06012 a 06016 v nerezovém provedení pro kryogenní plyny a média
    • safety valves for releasing various media from the piping in case of excessive pressure load
    • normal safety valve, PTFE/carbon seal cone, open spring cover
    • delivery including setting protocol; the safety valve is delivered set to the required pressure and sealed
    • PN63, type approved by TÜV-SV.1048
    • Designed as a safety device to protect pipes and components against thermal expansion.
    • Approved for air gases, steam and liquefied cryogenic gases including LNG.
    • Approved operating temperature: -196°C to +150°C,

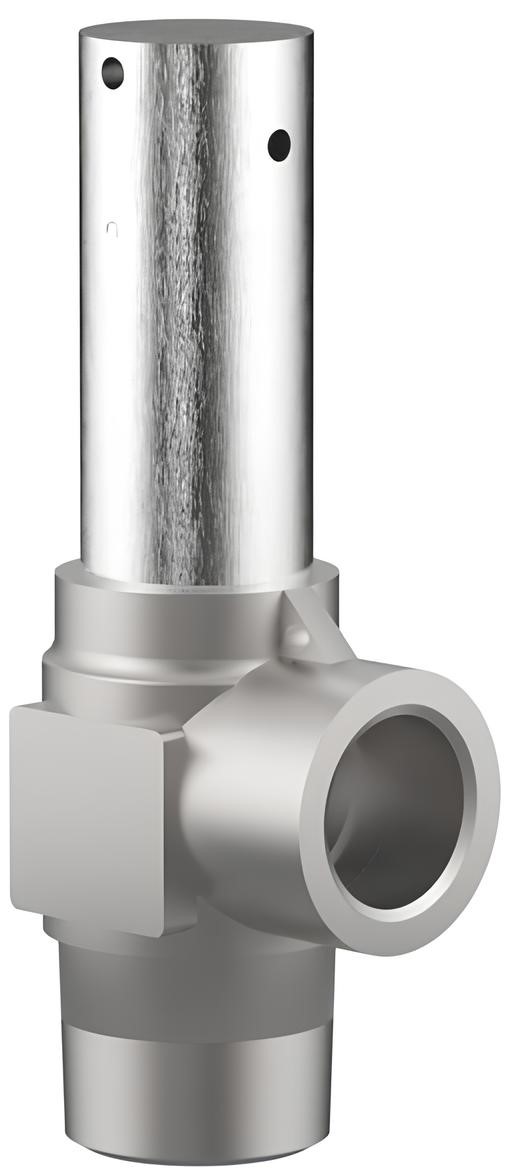

    Safety valves in stainless steel 6012 and 6016
    Pojistný ventily tlaku 06012 v nerezovém provedení pro upuštění nadměrné množství tlaku Ordering
    number    		 Thread
    "    		 Luminosity
    DN    		 Pressure setting
    bar    		 Temperature
    °C    		 Material Membrane
    06012.14 06016.14 1/4" 7 1,0-55 -196/150°C 1.4408 PTFE
    06012.38 06016.38 3/8" 7 1,0-55 -196/150°C 1.4408 PTFE
    06012.12 06016.12 1/2" 12 1,0-55 -196/150°C 1.4408 PTFE
    Please note : Safety valves are only supplied set to the required pressure in 0.1 bar increments

    Flow rates of safety valves 06012 and 06016
    Opening pressure (bar) 2 4 8 14 20 25 30 38 46 55
    Version Discharge power in Nm³/h
    1/4" 26,0 43,8 79,3 132,7 186 23,4 274,9 346,1 417,2 497,2
    3/8" 26,0 43,8 79,3 132,7 186 23,4 274,9 346,1 417,2 497,2
    1/2" 26,0 43,8 79,3 132,7 186 23,4 274,9 346,1 417,2 497,2

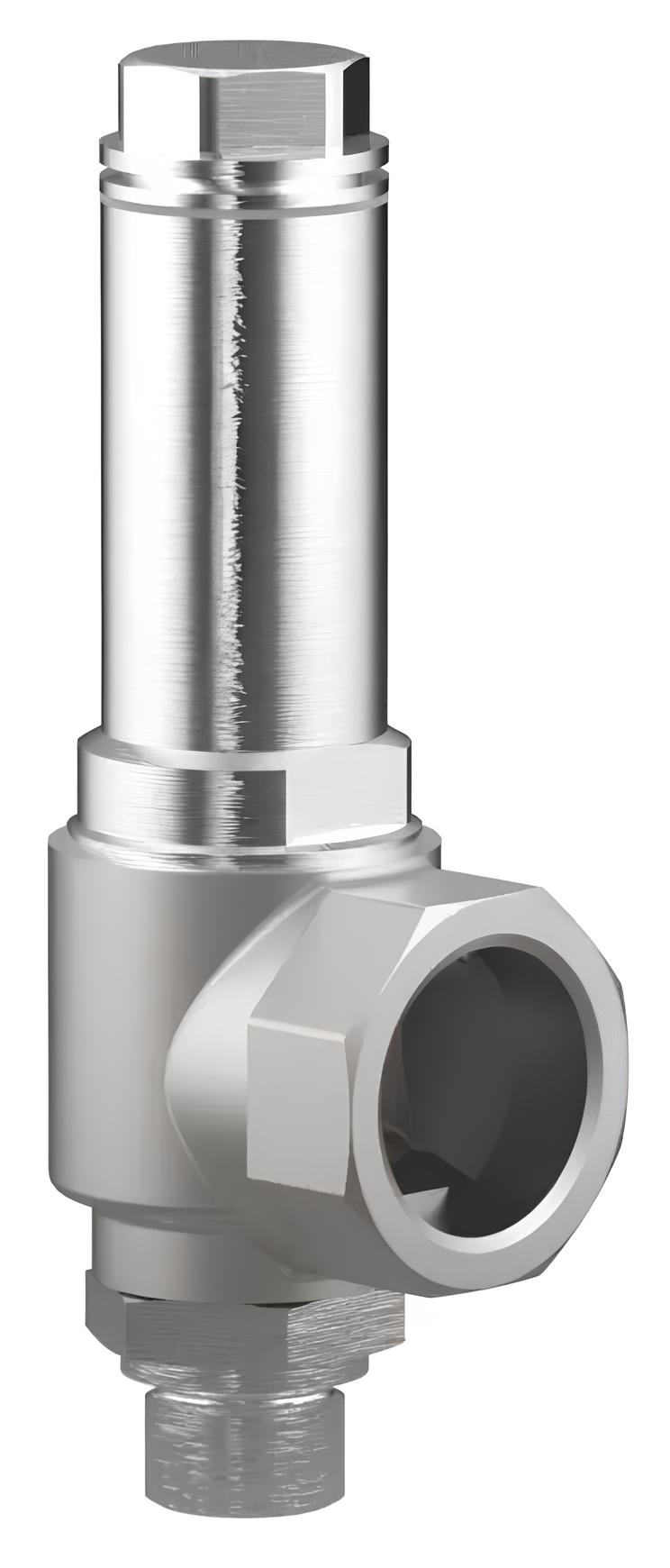

    Safety valves 6383 in stainless steel 1.4301

    Pojistný ventil tlaku 6383 v nerezovém provedení pro kryogenní plyny a média
    • safety valves for releasing various media from the piping in case of excessive pressure load
    • delivery including setting protocol; the safety valve is delivered set to the required pressure and sealed
    • externally threaded, degreased and cleaned for oxygen use
    • designed for air, vapours and cryogenic gases such as oxygen, nitrogen, argon, hydrogen, helium, carbon dioxide, carbon monoxide, methane, ethane, ethylene, LPG and LNG

    Safety valves in stainless steel 6383
    Pojistný ventily tlaku 6383 v nerezovém provedení pro upuštění nadměrné množství tlaku Ordering
    number    		 Thread
    "    		 Luminosity
    DN    		 Pressure setting
    bar    		 Temperature
    °C    		 Material Membrane
    6383.12 1/2" 10,5 2,9-50 -196/+185 stainless steel 1.4301 PTFE
    6383.34 3/4" 10,5 2,9-50 -196/+185 stainless steel 1.4301 PTFE
    6383.10 1" 15 2,9-50 -196/+185 stainless steel 1.4301 PTFE
    6383.54 1 1/4" 23 2,0-50 -196/+185 stainless steel 1.4301 PTFE
    6383.15 1 1/2" 23 2,0-50 -196/+185 stainless steel 1.4301 PTFE
    Please note : Safety valves are only supplied set to the required pressure in 0.1 bar increments

    Relief valve flows 6383
    Opening pressure (bar) 2 4 6 8 10 12 14 16 18 20
    Order number Discharge power in Nm³/h
    6383.12 - 178 251 324 397 470 542 615 687 767
    6383.34 - 178 251 324 397 470 542 615 687 767
    6383.10 - 314 442 357 699 827 954 1082 1209 1350
    6383.54 546 916 1288 1663 2039 2783 2783 3155 3526 1936
    6383.15 546 916 1288 1663 2039 2783 2783 3155 3526 3936
