Oil-free piston compressor - OSS20P-1.5-10RM příkon 1,5 kW, sací výkon 222 l/min, tlak 10 bar, vzdušník 10 l, napětí 230/50 V/Hz
Code: OSS20P-1-5-10RMRelated products
Product detailed description

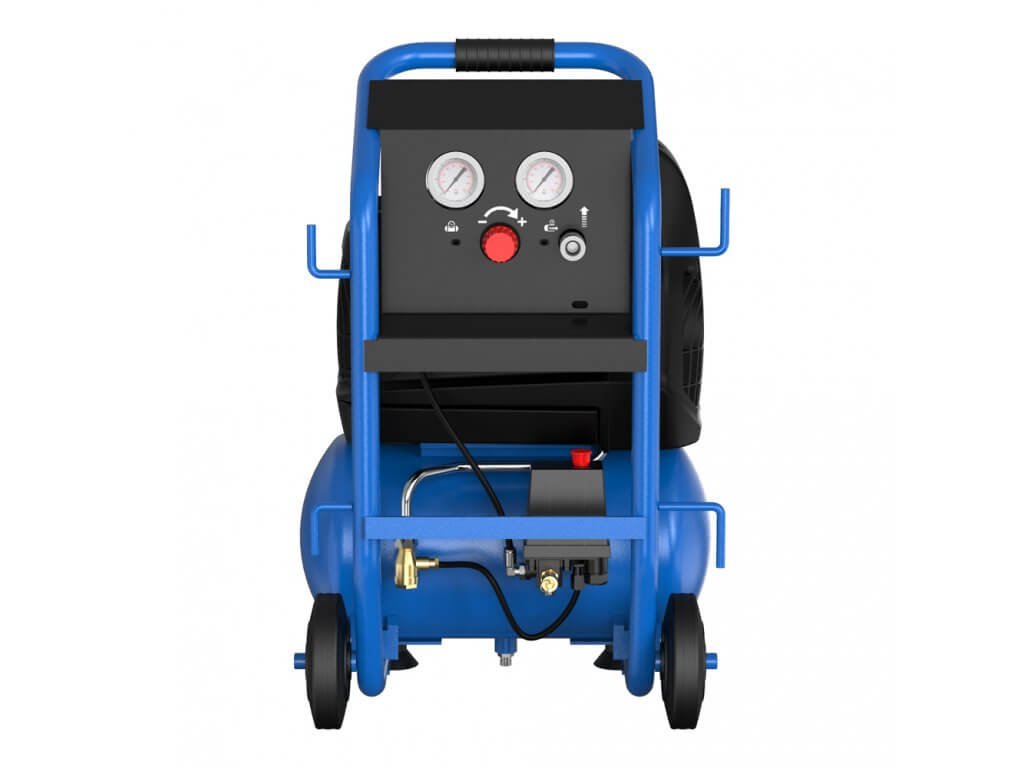

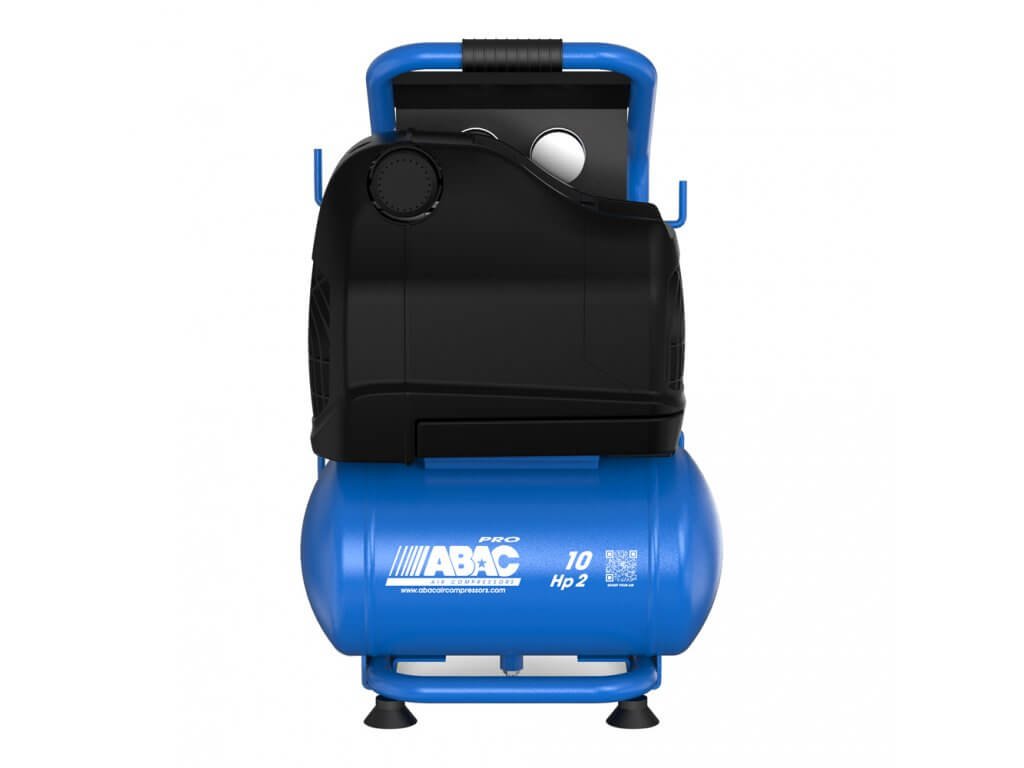

ABAC Super Silent Series Compressor - OSS20P-1,5-10RM
Single-stage compressor from the Line OSS series in oil-free design with direct connection of the electric motor to the OSS20P compressor unit with a suction capacity of 222 l/min. The very quiet machine with an input power of 1.5 kW and a delivered pressure of 10 bar is designed for professional applications with less air consumption. The compressor has the following standard equipment:
- automatic operation control by pressure switch
- output via standard DN7,2 quick coupling
- pressure regulator included in delivery
- two pressure gauges for reading the outlet pressure and the pressure in the air tank
- 10 litre air receiver with condensate release valve
- extended handle for easy carrying and protection during transport
- very robust rubberized wheels
- rubber bases to reduce vibration transmission from the compressor
Easy installation and maintenance thanks to service videos available via the AIRTUBE app after downloading the QR code from the pressure vessel.
We provide a standard 2-year warranty on the compressor and a 10-year warranty on the rusting of the pressure vessel.
Additional parameters
| Category: | OSS portable oil-free reciprocating compressors |
|---|---|
| Warranty: | 2 years |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 222 l/min |
| Displacement: | 90 l/min |
| Pressure vessel volume: | 10 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 1.5 kW |
| Mains voltage: | 230/50 V/Hz |
| Speeds: | 2,900 rpm |
| Number of cylinders: | 1 |
| Number of grades: | 1 degree |
| Lubrication: | Oil-free |
| Noise: | 88 dB - Lwa, 68 dB - Lwp(4m) |
| Dimensions: | 400 x 347 x 630 mm |
| Weight: | 22 kg |
| Accessories: | Pressure regulator, Handle, Quick coupler, Cover |
| Engine: | Electric |
| Soundproofed: | Yes |
| Drive: | Direct |
| Air dryer: | No |
| Retrieved from: | Semi-professional |
| Development: | Mobile |
