Oil-free piston compressor - OSS10P-0.75-6RM příkon 0,75 kW, sací výkon 111 l/min, tlak 10 bar, vzdušník 6 l, napětí 230/50 V/Hz
Code: OSS10P-0-75-6RMRelated products
Product detailed description

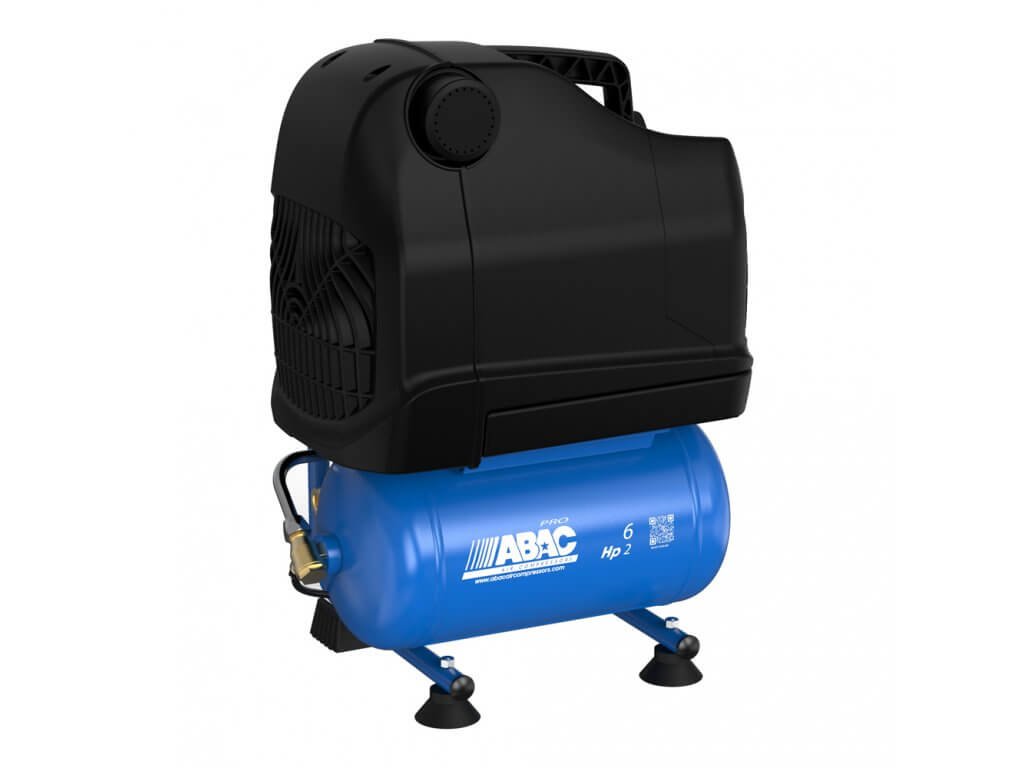

ABAC compressor series OSS - OSS10P-0,75-6RM
- central electric motor with low speed 1450
- automatic operation control by pressure switch
- output via standard DN7,2 quick coupling
- pressure regulator included in delivery
- two pressure gauges for reading the outlet pressure and the pressure in the air tank
- 6 litre airbox with condensate release valve
- handle for easy carrying of the machine
- rubber bases to reduce vibration transmission from the compressor
Easy installation and maintenance thanks to service videos available via the AIRTUBE app after downloading the QR code from the pressure vessel.
We provide a standard 2-year warranty on the compressor and a 10-year warranty on the rusting of the pressure vessel.
Additional parameters
| Category: | OSS portable oil-free reciprocating compressors |
|---|---|
| Warranty: | 2 years |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 111 l/min |
| Displacement: | 46 l/min |
| Pressure vessel volume: | 6 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 0.75 kW |
| Mains voltage: | 230/50 V/Hz |
| Speeds: | 1450 rpm |
| Number of cylinders: | 1 |
| Number of grades: | 1 degree |
| Lubrication: | Oil-free |
| Noise: | 80 dB - Lwa, 60 dB - Lwp(4m) |
| Dimensions: | 372 x 307 x 505 mm |
| Weight: | 19 kg |
| Accessories: | Pressure regulator, Handle, Quick coupler, Cover |
| Engine: | Electric |
| Soundproofed: | Yes |
| Drive: | Direct |
| Air dryer: | No |
| Retrieved from: | Semi-professional |
| Development: | Portable |
Instalace kompresoru
Odpouštění kondenzátu
Údržba kompresoru
Uvedení kompresoru do provozu
