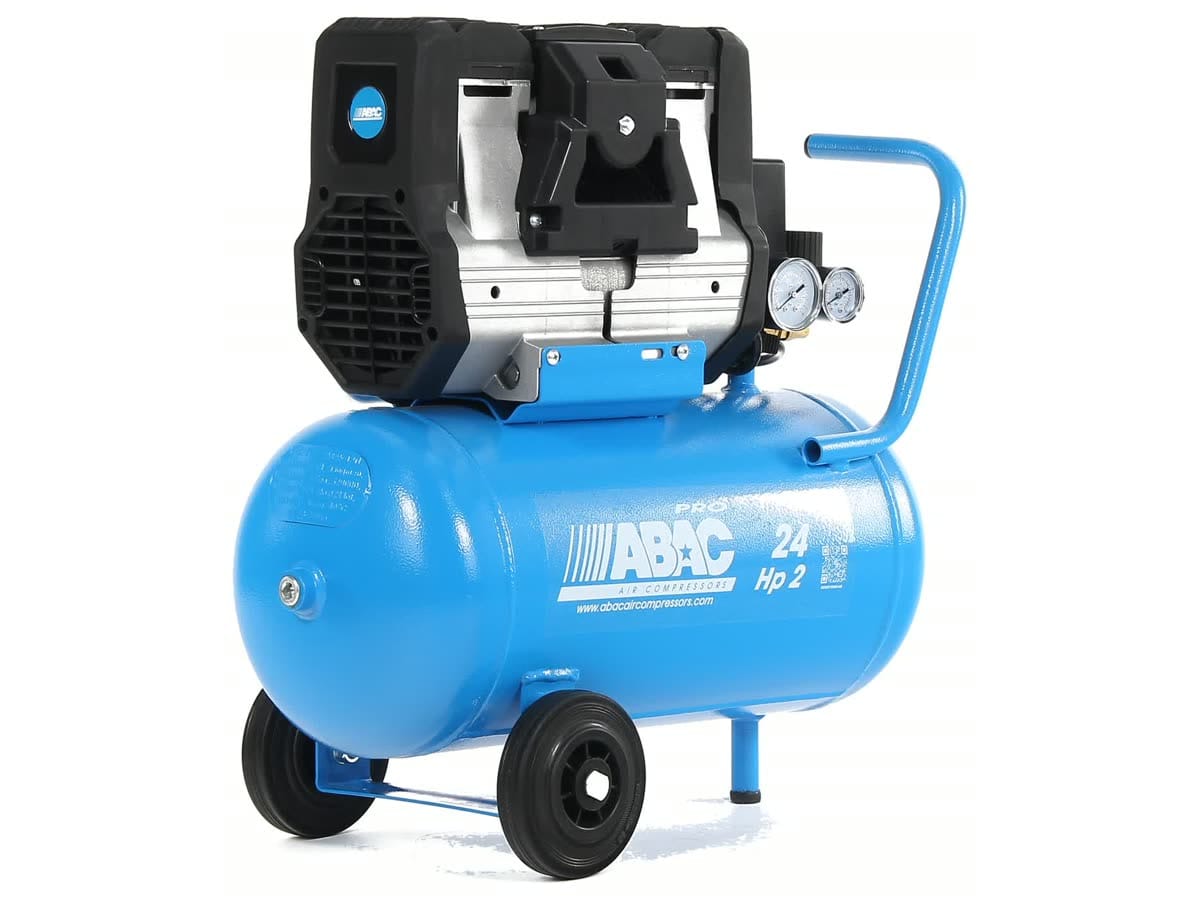

Quiet oil-free compressor ABAC OS20P-1.5-24CM, 24 l motor power 1.5 kW, air displacement 230 l/min, pressure 9 bar, horizontal air receiver 24 l, 65 dB at 4 m, voltage 230/50 V/Hz
Code: OS20P-1-5-24CM
Related products
Product detailed description
24 l · 9 bar · 65 dB at 4 mThe lightest machine in the range on wheels: a quiet compressor one person lifts into the car. The OS20P-1.5-24CM weighs 24 kg; its OS20P pump is the same as on the twenty and the fifty — 1.5 kW, 1,420 rpm, 230 l/min oil-free, 85 dB Lwa and 65 dB at 4 m. The horizontal 24 l tank holds a reserve for a decorating spray gun and a nailer alike, the switch fills it to 9 bar and you wheel it by the handle wherever it is needed. Studio, shop, flat — from an ordinary socket.
The middle of the range: a reserve for spraying, light enough for the car
Against the six it has a tank four times the size and a bar more on the switch: a decorating gun holds its pressure, a nailer fires evenly even in quick succession and when blowing off the motor does not cut in after every squeeze of the trigger — the pump runs in calm cycles and cools down in between. And it is still 24 kg: wheels round the workshop, one person into the boot. Against the twenty in its sack-truck frame it is nine kilos lighter and lower; against the fifty it is eight kilos lighter and nineteen centimetres shorter. If you spray larger areas at a stretch, take the fifty; if inflating and stapling are all you want, save five to seven kilos with a six.
Equipment and details
What the OS20P-1.5-24CM has from the factory
- oil-free twin-piston OS20P pump with direct drive, 1.5 kW, 1,420 rpm, Teflon-coated cylinders
- single-phase 230 V / 50 Hz motor, enclosed pump cover with a recessed intake filter
- horizontal 24 l tank, 9 bar, condensate drain valve underneath

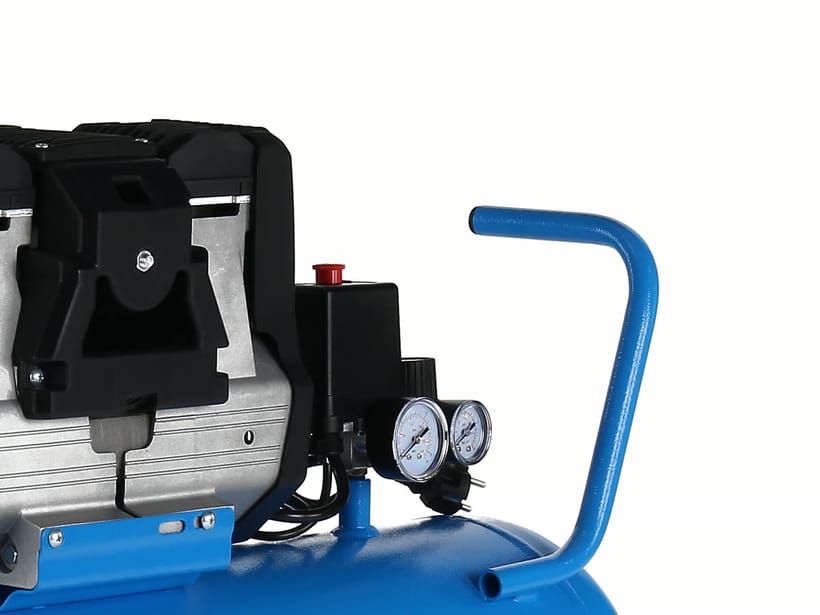

- pressure switch with a start button, outlet pressure regulator, two gauges, DN 7.2 quick coupling
- two wheels, rubber foot, handle
- noise 85 dB Lwa, 65 dB at 4 m
- QR code on the tank opens service videos in the AirTube app
- 2-year warranty, 10 years on the tank against rusting through
Machine details
Where next if the OS20P-1.5-24CM is not the right fit
If you spray larger areas at a stretch, twice the reserve comes with the OS20P-1.5-50CM; if your work is behind customers' doors and you push the machine rather than lift it, choose the OS20P-1.5-20RM. The table of all six machines is on the Super Silent OS range page, and twenty-four-litre machines from other brands are among compressors with a 24 l tank. Condensate before a decorating gun is caught by a regulator with filter.
Values apply to a 230 V / 50 Hz supply. Noise is given as the sound power level Lwa and the sound pressure at 4 m from the machine. The machine is built for intermittent duty, not for continuous operation.
Ventilek advises
The twenty-four is the middle of the range — enough reserve for a decorating gun, 65 dB at 4 m, and you still lift it into the boot on your own.
Additional parameters
| Category: | Compressors for all applications - hobby and industrial |
|---|---|
| Warranty: | 2 years |
| EAN: | 0745125779225 |
| Compressor type: | Piston compressor |
| Pressure: | 9 bar |
| Suction power: | 230 l/min |
| Displacement: | 94 l/min |
| Pressure vessel volume: | 24L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 1.5 kW |
| Mains voltage: | 230/50 V/Hz |
| Speeds: | 1 420 ot/min |
| Number of cylinders: | 2 |
| Number of grades: | 1 – single-stage compressor |
| Lubrication: | Oil-free |
| Noise: | 85 dB - Lwa|65 dB - Lwp(4m) |
| Dimensions: | 616 × 300 × 574 mm |
| Weight: | 24 kg |
| Accessories: | Regulátor tlaku|Madlo|Rychlospojka|Kryt |
| Engine: | Electric |
| Soundproofed: | Yes |
| Drive: | Direct |
| Air dryer: | No |
| Retrieved from: | Semi-professional |
| Development: | Mobile |
| In stock: | In store, External warehouse |
