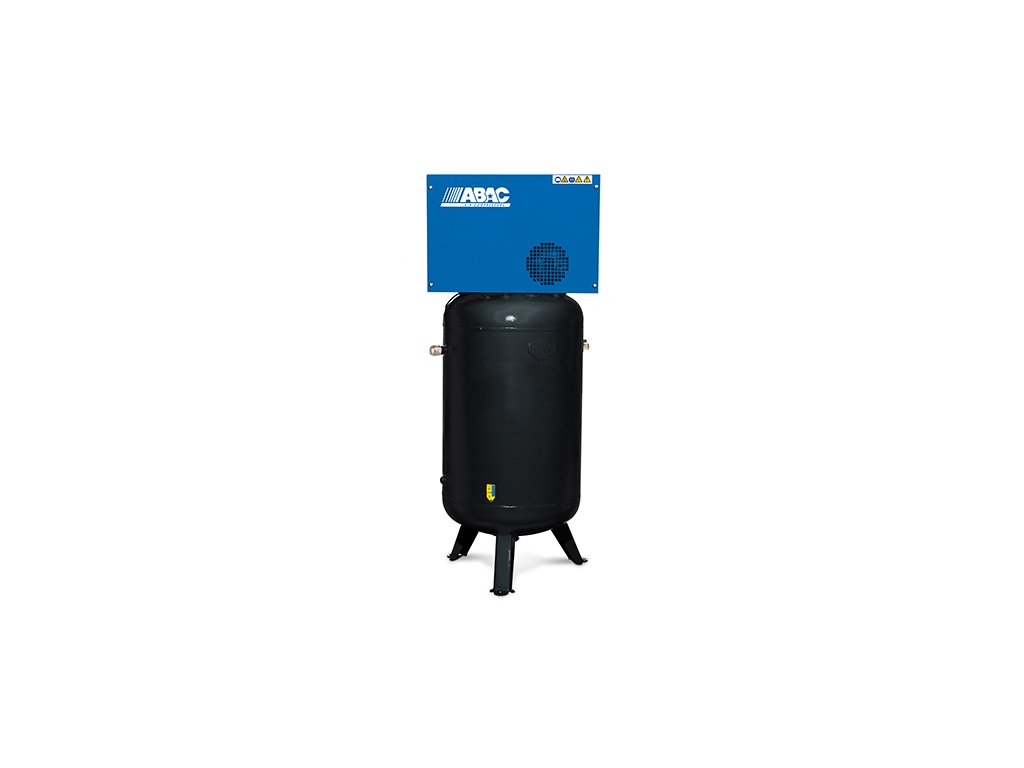

Piston compressor with metal housing ABAC - SLN-5,5-500VT
- soundproof two-stage reciprocating compressors with V-belt drive, pressure 11 and 15 bar
- horizontal or vertical pressure vessel with metal cover
- higher volume capacity -> low speed operation, good machine cooling
- special valve plates with higher load resistance
- pressure switch including motor hour counter for versions without Y-D switch
- Longer life, reduced temperature, cost competitive
Technical parameters
| Category: | Compressors for all applications - hobby and industrial |
|---|---|
| Warranty: | 3 years |
| Compressor type: | Piston compressor |
| Pressure: | 11 bars |
| Suction power: | 784 l/min |
| Pressure vessel volume: | 500 l (0,5 m³, 500 000 cm³) |
| Design of pressure vessel: | Standing |
| Connecting: | 1/2" tap |
| Motor power: | 5.5 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 688 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 2 stage |
| Lubrication: | Oily |
| Noise: | 73 dB(A) |
| Dimensions: | 1 050 x 700 x 1 950 mm |
| Accessories: | Silent blocks, Cover, Hour counter |
| Engine: | Electric |
| Soundproofed: | Yes |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Stationary |
