Piston compressor Perfect - 2.2/90 XE + prodloužená záruka + Olej Atmos zdarma
Code: P22090EXCZ
Related products
Product detailed description
ATMOS Perfect 2,2 kW - 90 l (reciprocating compressor for workshops and smaller plants)
🔹 Professional performance - 2,2 kW, 90l airbox, 323 l/min discharge
🔹 Cast iron aggregate - robust construction, slow speed, long service life
🔹 Low noise level - only 72 dB(A), quiet and smooth operation
🔹 Automatic operation - Condor pressure switch, motor protection, aftercooler
🔹 Mobility and ease of use - wheels, handle, stable construction
🔹 5 years extended warranty - quality you can rely on
Who is this compressor ideal for?
The ATMOS Perfect 2.2/90 compressor is a great choice for craftsmen, garages, workshops and smaller operations where a quality and durable source of compressed air is needed for pneumatic tools, blowing, spraying or inflating tyres. Thanks to the single-phase 230 V power supply, it can be easily connected in a regular garage without the need for a three-phase connection.
Technical specifications |
||||||||||||
| Parameter | Value | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Motor power | 2,2 kW (single phase 230 V) | |||||||||||
| Max. pressure | 10 bars | |||||||||||
| Suction power | 420 l/min | |||||||||||
| Displacement (air supplied) | 323 l/min | |||||||||||
| Air tank volume | 90 liters | |||||||||||
| Number of cylinders/stages | 2 cylinders / 1 stage | |||||||||||
| Compressor speed | 1180 rpm | |||||||||||
| Lubrication | Oily | |||||||||||
| Drive | V-belt | |||||||||||
| Noise level | 72 dB(A) | |||||||||||
| Weight | 79 kg | |||||||||||
| Air outlet | 1/2" ball valve | |||||||||||
| Guarantee | 5 years | |||||||||||
✅ Key advantages over the competition
✔ Robust cast iron aggregate and slow speed → longer life, less wear, lower noise.
✔ High performance and efficiency → more air at the same power input, optimized energy consumption.
✔ Automatic operation and safety features → pressure switch, aftercooler, motor protection.
✔ Low noise 72 dB(A) → suitable for closed workshops, less vibration.
✔ Mobility and easy handling → wheels, handle, solid construction.
✔ Superior 5 years warranty → long term reliability and quality assurance.
📖 How to choose the right compressor?
Not sure if this model is right for you? Read our detailed guide to choosing a compressor:
🔗 How to choose a compressor - everything you need to know
👉 Find out what type of compressor is best for you, what parameters to look for and what to look out for when choosing one.
❄ How to minimize humidity in compressed air?
Moisture in the air can corrode tools and reduce the quality of work. Read our article:
🔗 How to remove moisture from compressed air
🔎 Other models from the ATMOS Perfect series
Are you looking for a more powerful compressor with a larger airbox? Check out other models:
➡ ATMOS Perfect 4 kW / 150 l - more power, higher air volume.
➡ ATMOS Perfect 5,5 kW / 270 l - ideal for larger plants.
➡ ATMOS Perfect 7,5 kW / 500 l - top performance for industrial applications.
📢 Do you need help choosing ? Contact us, we will be happy to help you choose the right model!
Additional parameters
| Category: | Compressors for all applications - hobby and industrial |
|---|---|
| Warranty: | 5 years |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 420 l/min |
| Displacement: | 323 l/min |
| Pressure vessel volume: | 90 L |
| Design of pressure vessel: | Lying down |
| Connecting: | 1/2" |
| Motor power: | 2.2 kW |
| Mains voltage: | 230/50 V/Hz |
| Speeds: | 1180 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 1 degree |
| Lubrication: | Oily |
| Noise: | 72 dB(A) |
| Accessories: | Wheels, Handle, Ball cock |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Mobile |
| Piston unit: | LB 30 |
| Dimensions: | 1 150 x 520 x 880 mm |
| Weight: | 79 kg |
| Container outlet: | Ball valve 1/2" |
| Compressor switching pressure: | 8 bar |
| Compressor cut-out pressure: | 10 bars |
| Pressure difference: | 2 bars |
-
Manuál k použití (1.1 MB)
-
Produktový list (3.1 MB)
-
Technický výkres (333.6 kB)
-

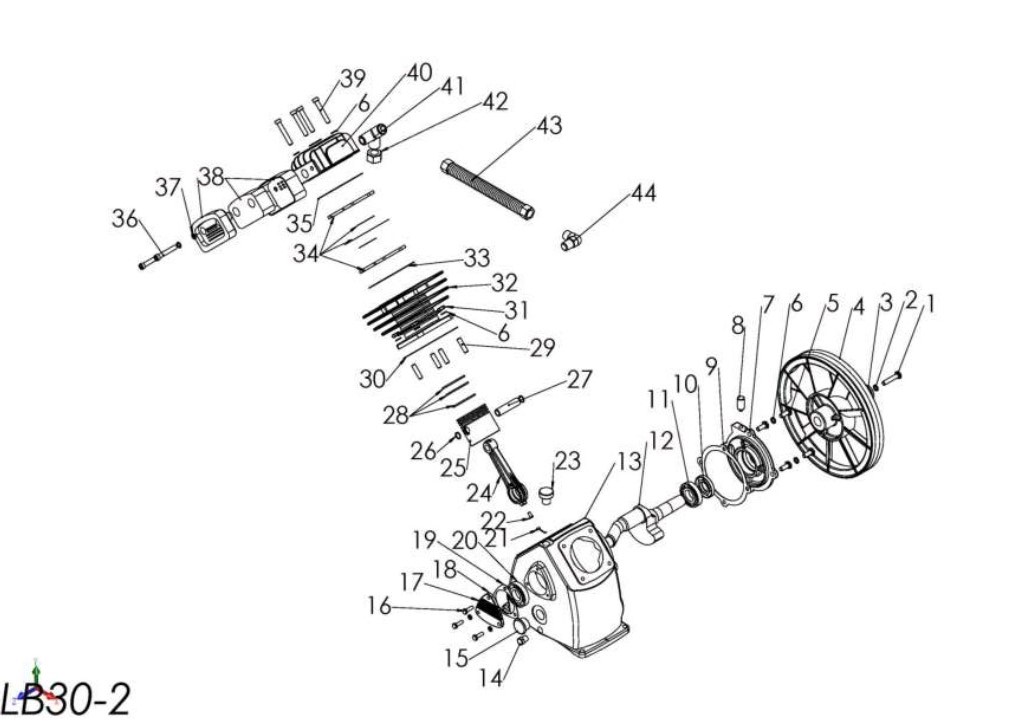

Rozklad agregátu (82.3 kB)
Jak vznikají české kompresory ATMOS: Pohled do výroby!
test
Be the first who will post an article to this item!
A domestic company of world quality
One of the leading companies operating in the field of compressed air not only in the Czech Republic, but also in the world, is the domestic manufacturer ATMOS Chrást s.r.o., which presents itself mainly by the production of screw and piston compressors, screw blocks and motor generators. The roots of the company go back to 1899, when foundries and machine shops were established in the West Bohemian village; during the communist regime, the machine shops belonged to the national company Škoda Plzeň. It was at the end of this era that the company began licensed production of screw blocks and screw compressors, which became very popular over the years due to their reliability. Since then, ATMOS has come up with more than 25 new compressor types - creating a range of mobile, locomotive or stationary compressors that are subject to the most stringent global standards, adding the hallmark of honest design that is so much a part of ATMOS even in today's consumer age.
 |
.jpg) |
 |
 |
A product offer for everyone
ATMOS is constantly working on new compressors and the characteristics are subject to regular technological research. As a result, the company has already come up with innovative ideas on several occasions, such as when it extremely reduced the noise level of stationary compressors without losing their top performance parameters, thanks to which they have been widely exported abroad. However, in addition to large companies, ATMOS also meets the needs of private customers with smaller workshop machines. Another breakthrough was the creation of the small and compact Albert compressors, whose product range is constantly expanding and are suitable for hobby use. More than 60 of these types are currently in production, with outputs ranging from 3 to 22 kW. The company is the youngest to launch motor generators, filling one of the gaps in the domestic market.
An overview of the compressors offered by ATMOS at Air Compressors can be found below.
