Piston compressor A29B-2,2-90CT příkon 2,2 kW, sací výkon 320 l/min, tlak 10 bar, vzdušník 90 l, napětí 400/50 V/Hz
Code: A29B-2-2-90CTRelated products
Product detailed description
Professional reciprocating compressor ABAC A29B-2,2-90CT
A single stage compressor from the Pro Line range with extended features in an oil lubricated design for many professional applications. Connection of the electric motor to the A29B compressor unit via V-belts with a suction capacity of 320 l/min and the following standard equipment:

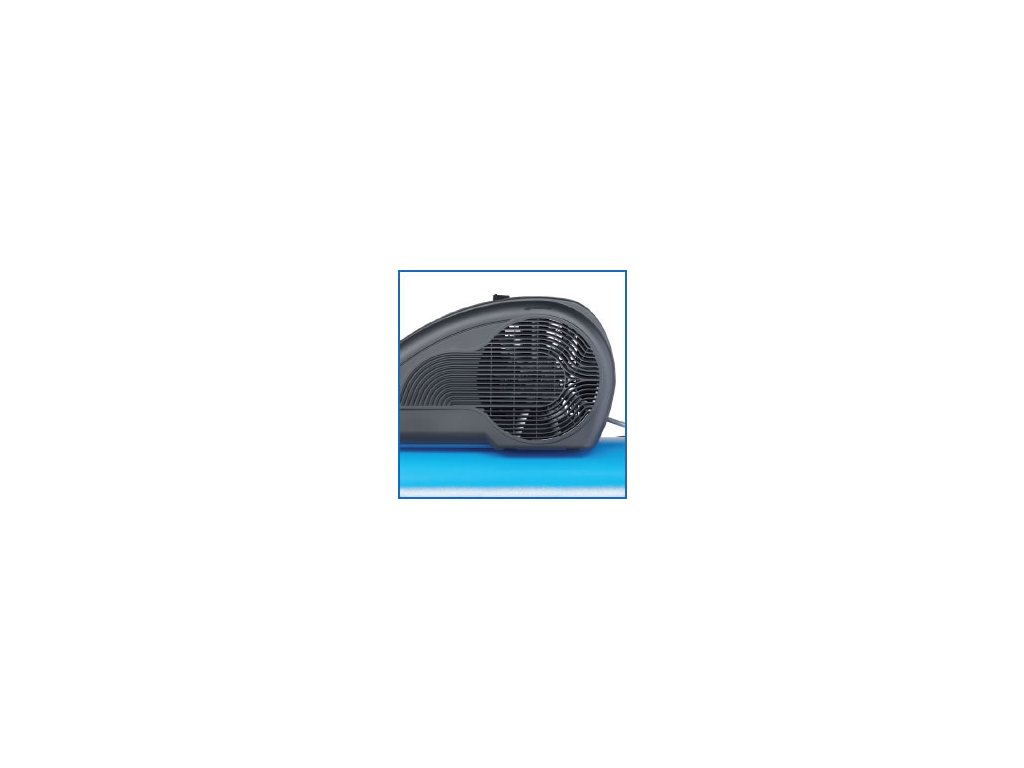

- unique belt gear cover with aerodynamically shaped grooves and aftercooler at the compressor outlet reduce the outlet air temperature by up to +35°C and ensure extreme increase in compressor lifetime

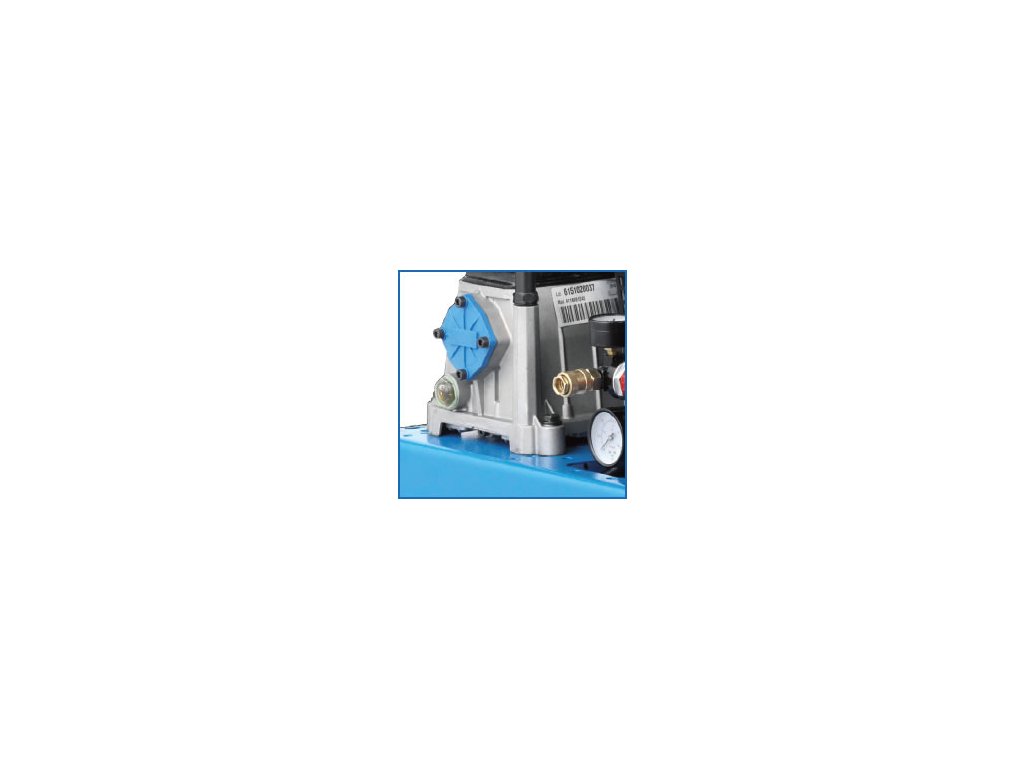

- oil reservoir equipped with oil gauge for easy reading of oil level
- automatic operation control by pressure switch
- electric motor equipped with temperature protection
- output via standard DN7,2 quick coupling

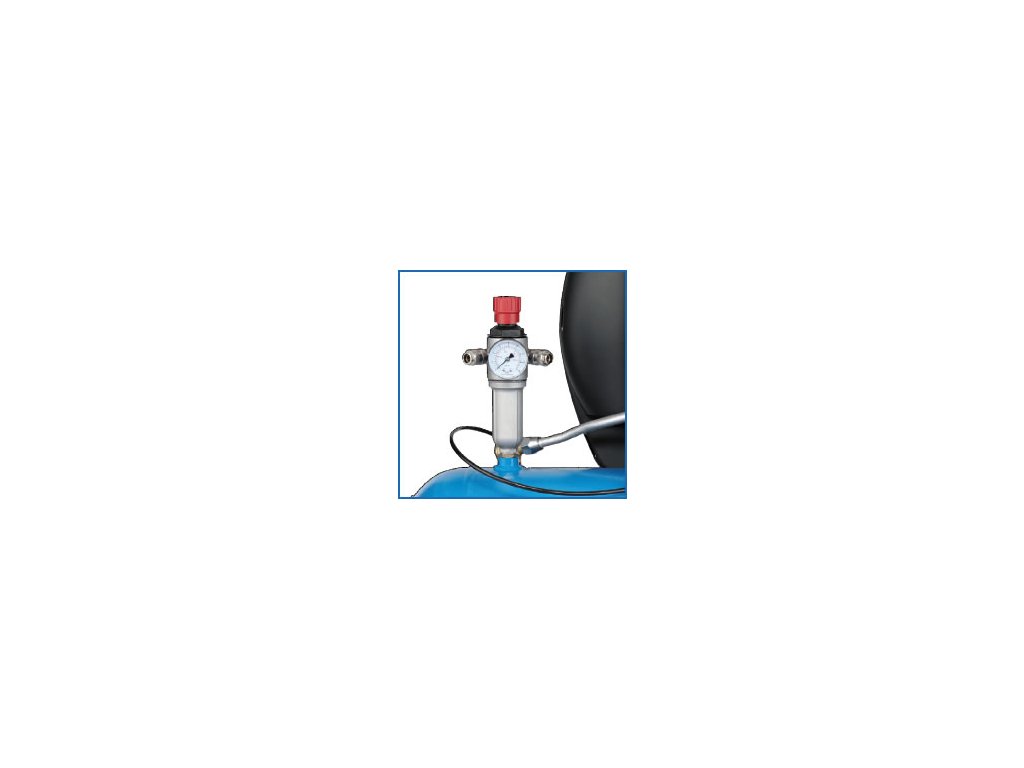

- pressure regulator included in delivery
- two pressure gauges for reading the outlet pressure and the pressure in the air tank
- 90-litre aerator with ball valve for convenient condensate drainage
- two front wheels with brakes significantly increase the stability of the machine and improve handling
- rubberised handle for perfect user comfort
Easy installation and maintenance thanks to service videos available via the AIRTUBE app after downloading the QR code from the pressure vessel.
We provide a standard warranty period of 2 years with the possibility of extending it to 3 years and a 10-year warranty on the rusting of the pressure vessel.
Additional parameters
| Category: | Single stage piston compressors A29B |
|---|---|
| Warranty: | 3 years |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 320 l/min |
| Displacement: | 230 l/min |
| Pressure vessel volume: | 90 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 2.2 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1,300 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 1 degree |
| Lubrication: | Oily |
| Noise: | 93 dB - Lwa, 73 dB - Lwp(4m) |
| Dimensions: | 1 010 x 415 x 900 mm |
| Weight: | 56 kg |
| Accessories: | Pressure regulator, Wheels, Handle, Quick coupler |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Mobile |
Instalace kompresoru
Odpouštění kondenzátu
Servisní KIT kompresoru a výměna
Údržba sacího filtru
Uvedení do provozu
Výměna oleje u kompresoru
Výměna řemenu
Be the first who will post an article to this item!
Be the first who will post an article to this item!
Since its establishment in 1980, the company ABAC has been among the most important manufacturers of piston compressors on the world market. Currently, the ABAC brand is owned by ATLAS COPCO, the largest compressor manufacturer in the world and is part of the PAD (Professional Air Division) multinational group. The goal of the ABAC brand is to become a world leader in the development, production and sale of piston compressors.
Production
Compressors ABAC are produced in 5 production centers in the world, whose annual production reaches almost 2 million manufactured compressors. The mother plant of the brand ABAC in Turin, Italy employs around 250 employees and is mainly focused on the design and production of professional V-belt compressors with a daily production capacity of over 600 machines. Plant ABAC also has a wide warehouse facility with several thousand compressors for immediate delivery.
Innovative concept
ABAC does not mean only the manufacture of compressors. We are directly involved in the development of key innovations and advanced solutions and set trends in the compressor market. The efforts of our designers have resulted in, for example, an aerodynamic pulley housing for temperature reduction of up to 35°C, the revolutionary XPAND hose reel compressor or the PRO LINE ZERO oil-free compressors with V-belts. In the program ABAC you will always find the most modern and unique solution for the production of compressed air on the market.
A modern solution
We are a modern company that is aware of the current trends around us. We are bringing advanced technologies to the compressor field, such as the use of QR codes and the AIR TUBE app to make it easier for the user of our compressor to access the information they need. We use social media, chat and multimedia instead of traditional marketing and documentation formats. With compressors ABAC you will always have comfortable access to all the necessary information.
Program
In the supply program of the brand ABAC you will find the widest selection of piston compressors on the market. The basic range includes more than 340 models ranging from small portable compressors for home applications to larger stationary compressors for permanent deployment.
