Piston compressor A29B-2.2-90CM příkon 2,2 kW, sací výkon 320 l/min, tlak 10 bar, vzdušník 90 l, napětí 230/50 V/Hz
Code: A29B-2-2-90CMRelated products
Product detailed description
Professional reciprocating compressor ABAC A29B-2,2-90CM
A single stage compressor from the Pro Line range with extended features in an oil lubricated design for many professional applications. Connection of the electric motor to the A29B compressor unit via V-belts with a suction capacity of 320 l/min and the following standard equipment:

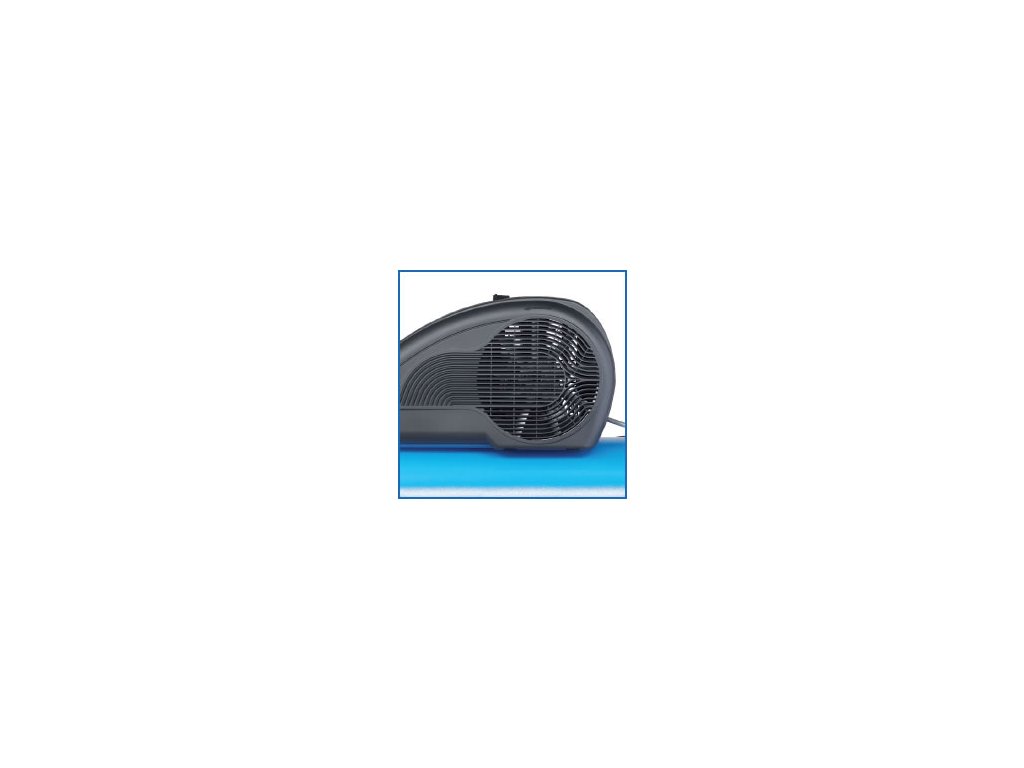

- unique belt gear cover with aerodynamically shaped grooves and aftercooler at the compressor outlet reduce the outlet air temperature by up to +35°C and ensure extreme increase in compressor lifetime

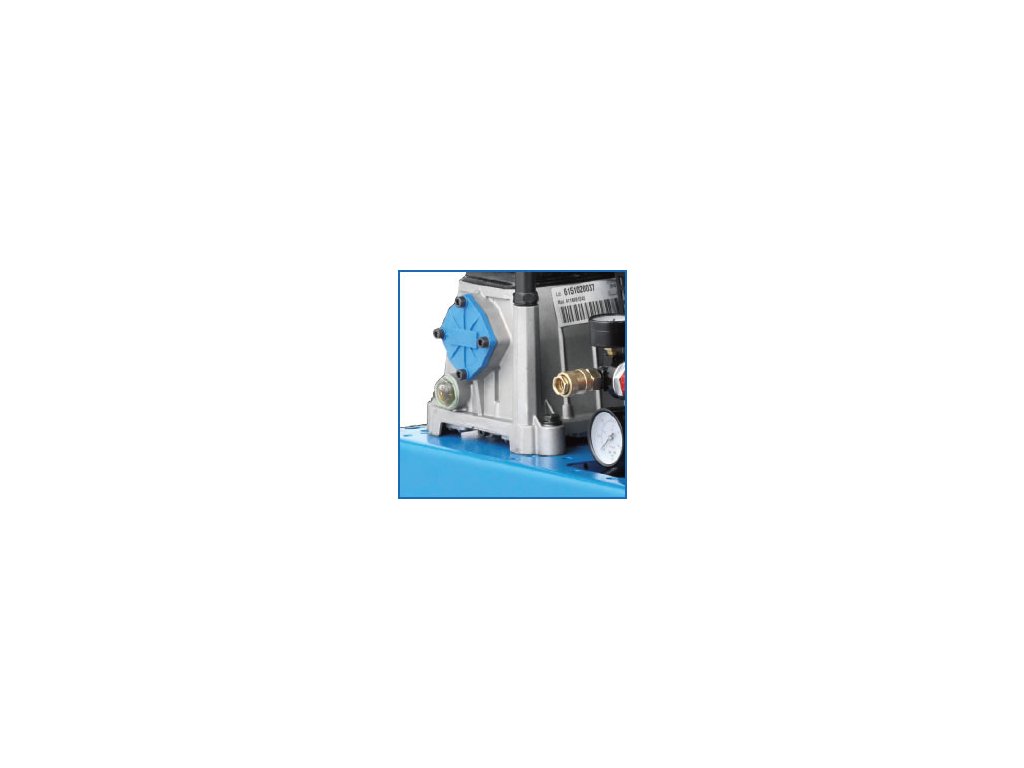

- oil reservoir equipped with oil gauge for easy reading of oil level
- automatic operation control by pressure switch
- electric motor equipped with temperature protection
- output via standard DN7,2 quick coupling

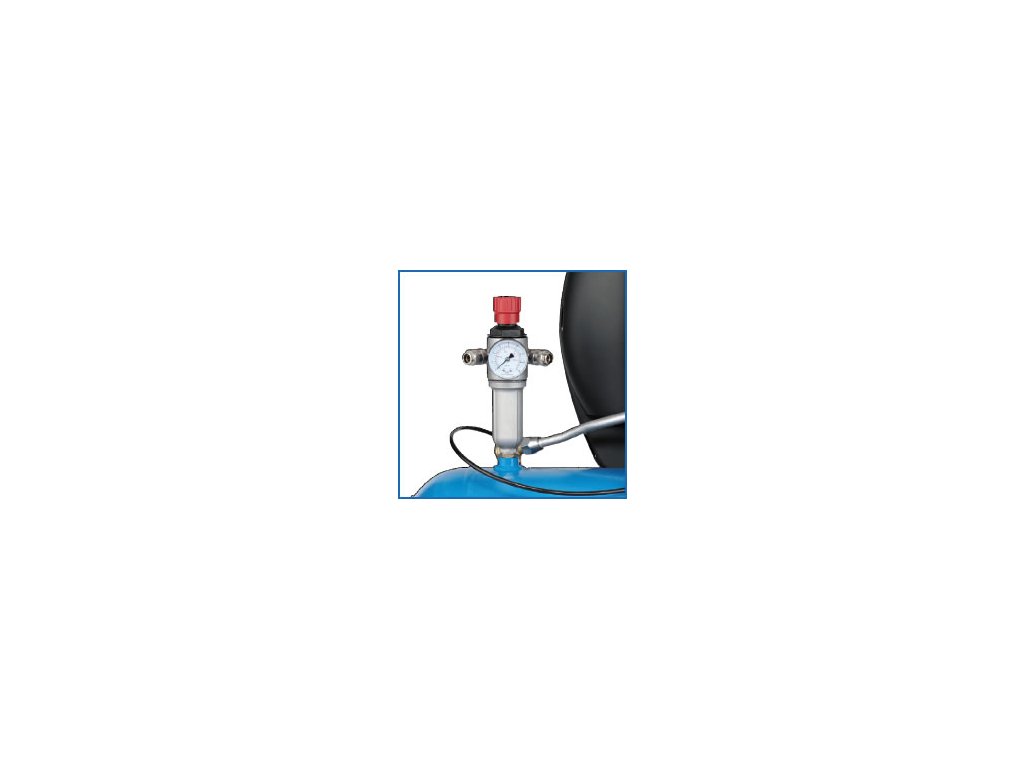

- pressure regulator included in delivery
- two pressure gauges for reading the outlet pressure and the pressure in the air tank

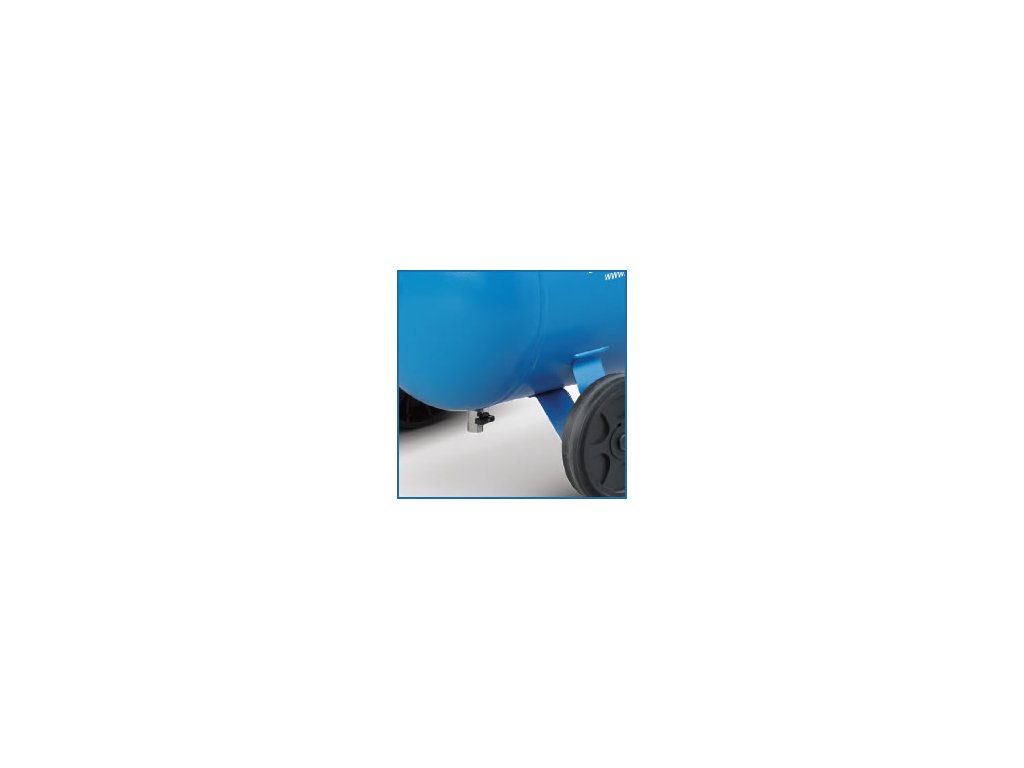

- 90-litre aerator with ball valve for convenient condensate drainage
- two front wheels with brakes significantly increase the stability of the machine and improve handling
- rubberised handle for perfect user comfort
Easy installation and maintenance thanks to service videos available via the AIRTUBE app after downloading the QR code from the pressure vessel.
We provide a standard warranty period of 2 years for the compressor with the possibility of extending it for 3 years and a 10-year warranty on pressure vessel rusting.
Additional parameters
| Category: | Single stage piston compressors A29B |
|---|---|
| Warranty: | 3 years |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 320 l/min |
| Displacement: | 230 l/min |
| Pressure vessel volume: | 90 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 2.2 kW |
| Mains voltage: | 230/50 V/Hz |
| Speeds: | 1,300 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 1 degree |
| Lubrication: | Oily |
| Noise: | 93 dB - Lwa, 73 dB - Lwp(4m) |
| Dimensions: | 1 010 x 415 x 900 mm |
| Weight: | 56 kg |
| Accessories: | Pressure regulator, Wheels, Handle, Quick coupler |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Mobile |
