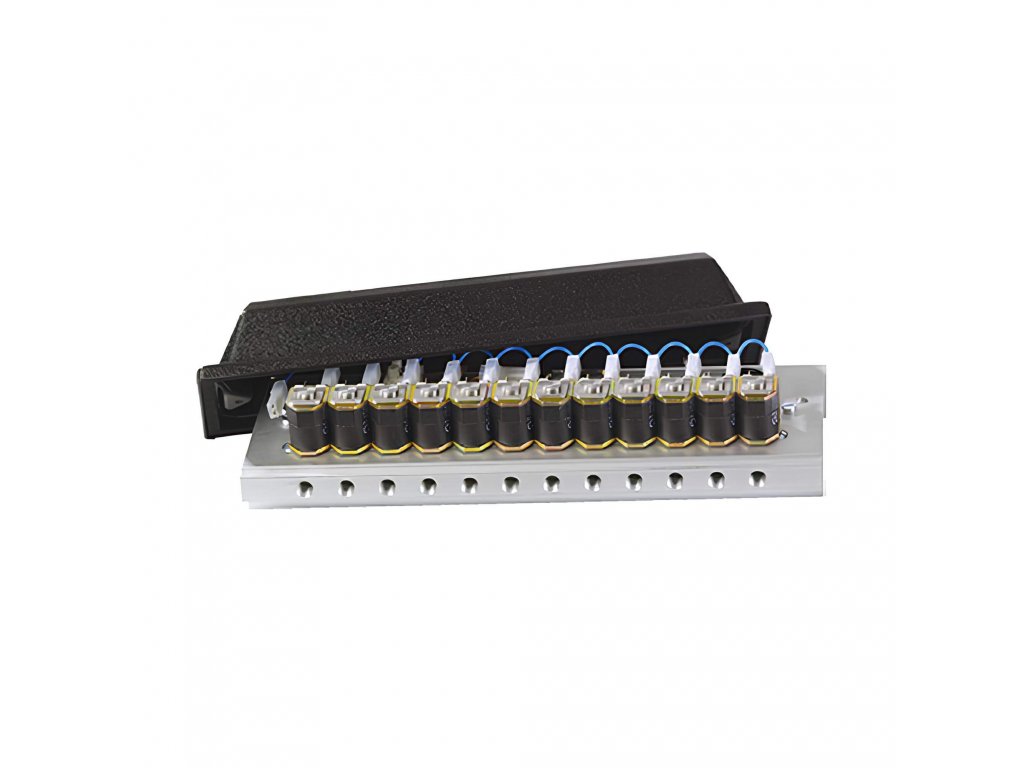

Pilot boxes G110 T1-11

Code: G110T-T1-11-115VAC G110T-T1-11-230VAC G110T-T1-11-24VAC G110T-T1-11-24VDC Choose variant
34 927 Kč 34 927 Kč from 34 927 Kč –100 % - –100 % - up to –100 %
Pilot boxes G110 T1-11
34 927 Kč 34 927 Kč from 34 927 Kč –100 % - –100 % - up to –100 % 1 Kč / pcs 37 108 Kč / pcs 1 Kč / pcs 37 108 Kč / pcs from 1 Kč / pcs 1 Kč excl. VAT 30 668 Kč excl. VAT 1 Kč excl. VAT 30 668 Kč excl. VAT from 1 Kč excl. VAT
up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
Coil
Chosen variant is not available. Reset selected parameters.
Delivery to:
13.12.2024 13.12.2024 13.12.2024 13.12.2024 Choose variant
G110 compact pilot boxes with eleven valves and one heating element. Function 2/2 NC, connection thread G1/8", clearance DN 3,6, flow Kv 5,8 l/min. Minimum operating temperature -15°C. Made of aluminium, ABS plastic cover, NBR gasket.

Detailed information

Product detailed description

Pilot boxes G110 T1-11

  • 2/2 NC function
  • 11 valves
  • with 1 heating
  • connection thread G1/8"
  • clearance DN 3.6
  • flow rate Kv 5,8 l/min
  • minimum pressure 0 bar
  • minimum temperature -15°C
  • material aluminum

Additional parameters

Category: G110 pilot boxes for pulse valve control
Pressure: 8,5 bar
Coil: 24 V AC, 24 V DC, 115 V AC, 230 V AC
Functions: 2/2 NC
Material: Aluminium
Medium: Air
Flow: 5,8 l/min
Brightness DN: 3,6
Seals: NBR
Thread: G 1/8"
Management: Directly controlled
