Fixed teat with protective spring 6.5 x 10 mm
Code: ES65SSVK
Related products
Product detailed description

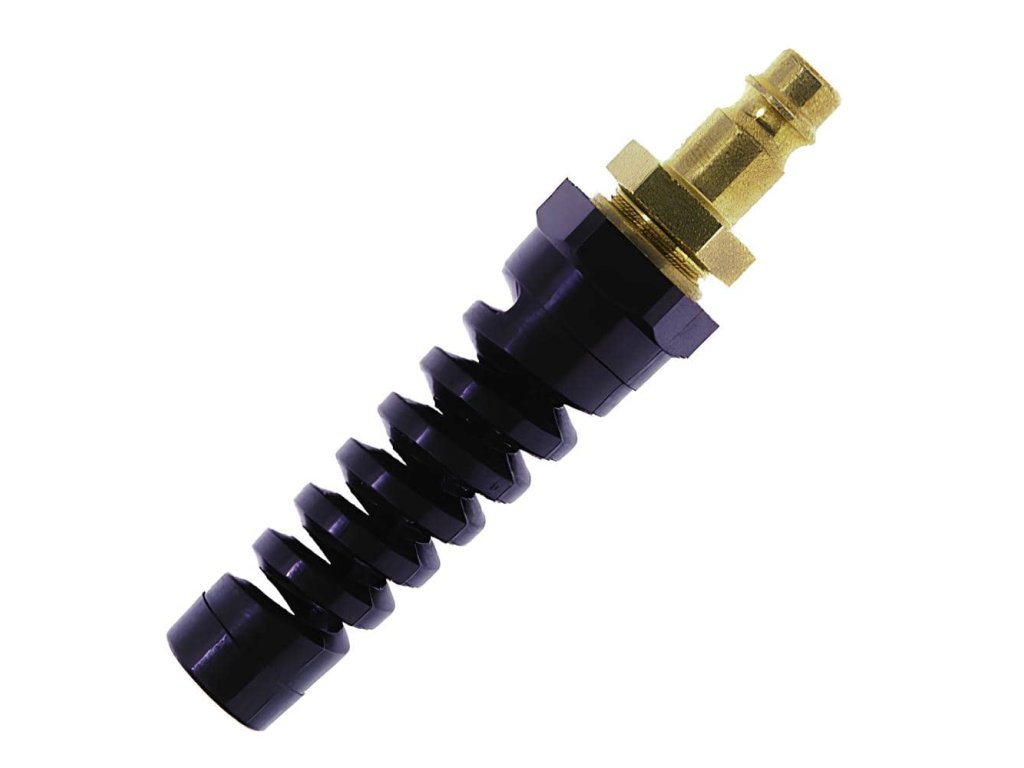

Swivel nipple with protection spring ES65SSVK
- special series of hose ends made with dimensions exactly for spiral hoses, all ends are disassembled - can be reused
- construction with extreme resistance to pressure and tension, the swivel design is sealed with a double o-ring and seeger lock
- external threads tapered with Loctite seal coating nipples dimensions DN7,2
Additional parameters
| Category: | ES-SSVK spring-loaded nipples for spiral hoses |
|---|---|
| Pressure: | 15 bar |
| DN: | 7,2 |
| Material: | Brass |
| Medium: | Air |
| For the hose: | 6.5 x 10 mm |
| Temperature: | -40/+85°C |
| Thorn on the hose: | 6.5 mm |

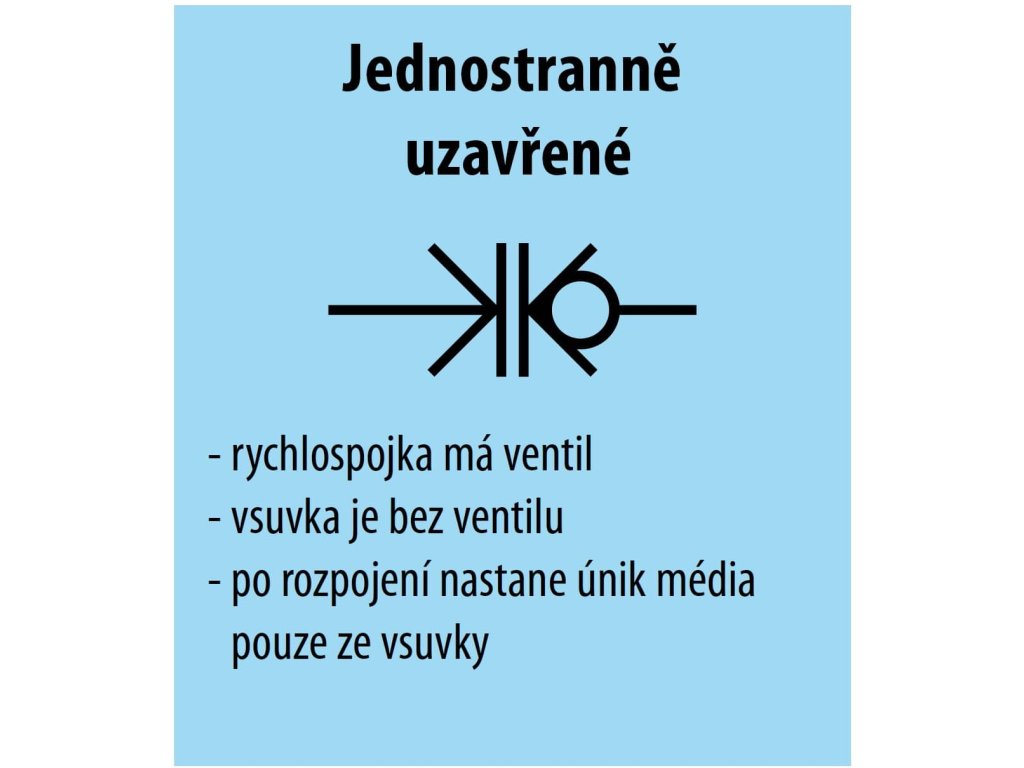

| Closure: | One-sided closed |
| Safety ring: | No |

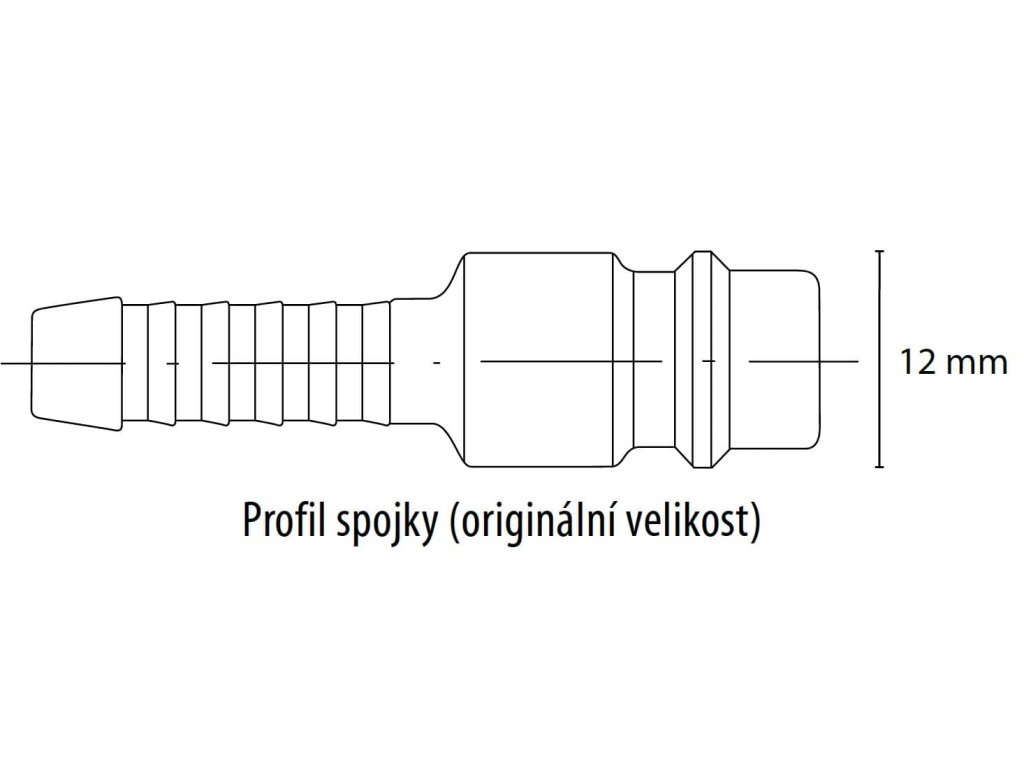

| Clutch profile: | EC (DN7.2) |
| Male / female: | Pacifier |
| Connection system: | Quick couplings |
