Swivel fitting with external thread 1/4" - hose 8 x 12 mm

Code: DVK81214
525 Kč –4 %
Swivel fitting with external thread 1/4" - hose 8 x 12 mm
525 Kč –4 % 499 Kč / pcs 412 Kč excl. VAT
Stock (12 pcs)
Delivery to:
03.04.2025
Delivery offer

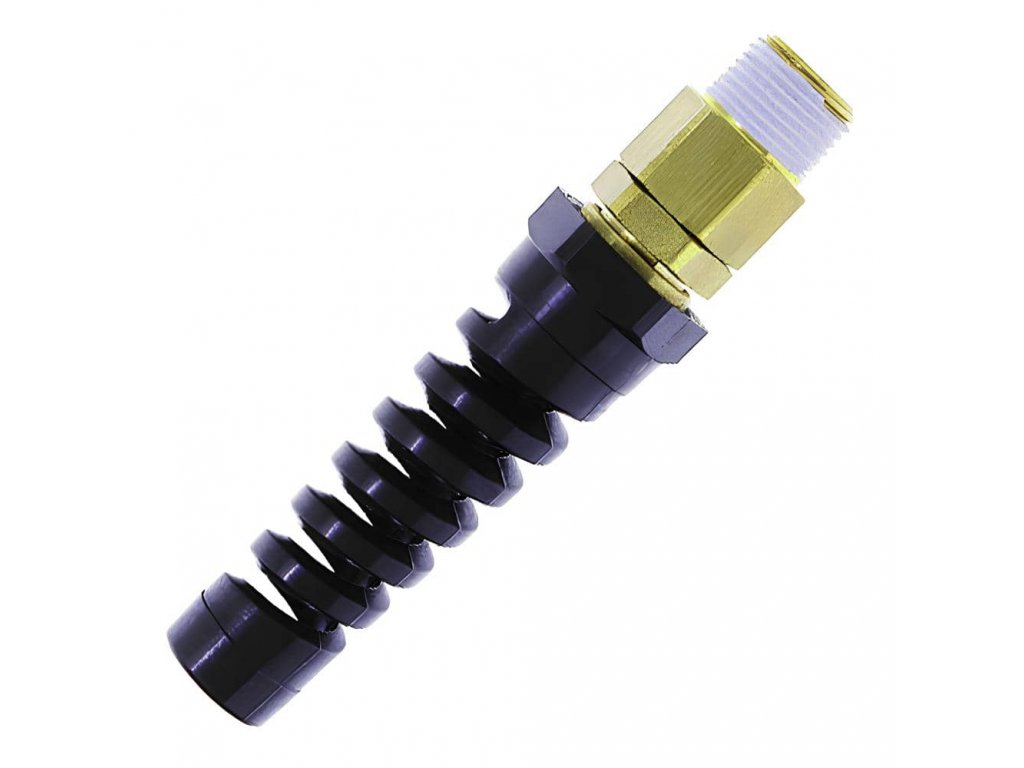

Swivel fitting with male tapered thread R1/4" for hose size 8 x 12 mm. The end caps are detachable - they can be used again. Construction with extreme resistance to pressure and tension. The swivel design is sealed with a double o-ring and seeger lock.

Detailed information

Free shipping
Free shipping
For purchases over 5,000 CZK
We guarantee
We guarantee
Extended warranty and service
Discount voucher
Discount voucher
For every purchase
Return of goods within 30 days
Return of goods within 30 days
Completely at our expense

Product detailed description

Swivel fitting with male thread R - DVS81214

  • special series of hose ends made with dimensions exactly for spiral hoses, all ends are disassembled - can be reused
  • construction with extreme resistance to pressure and tension, the swivel design is sealed with a double o-ring and seeger lock
  • external tapered threads with Loctite seal coating, quick couplings and nipples DN7,2

Additional parameters

Category: Swivel fittings for spiral hoses
Pressure: 15 bar
Material: Brass
Medium: Air
For the hose: 8 x 12 mm
Temperature: -40/+85°C
Thorn on the hose: 8 mm
Thread: R 1/4"
