Product detailed description

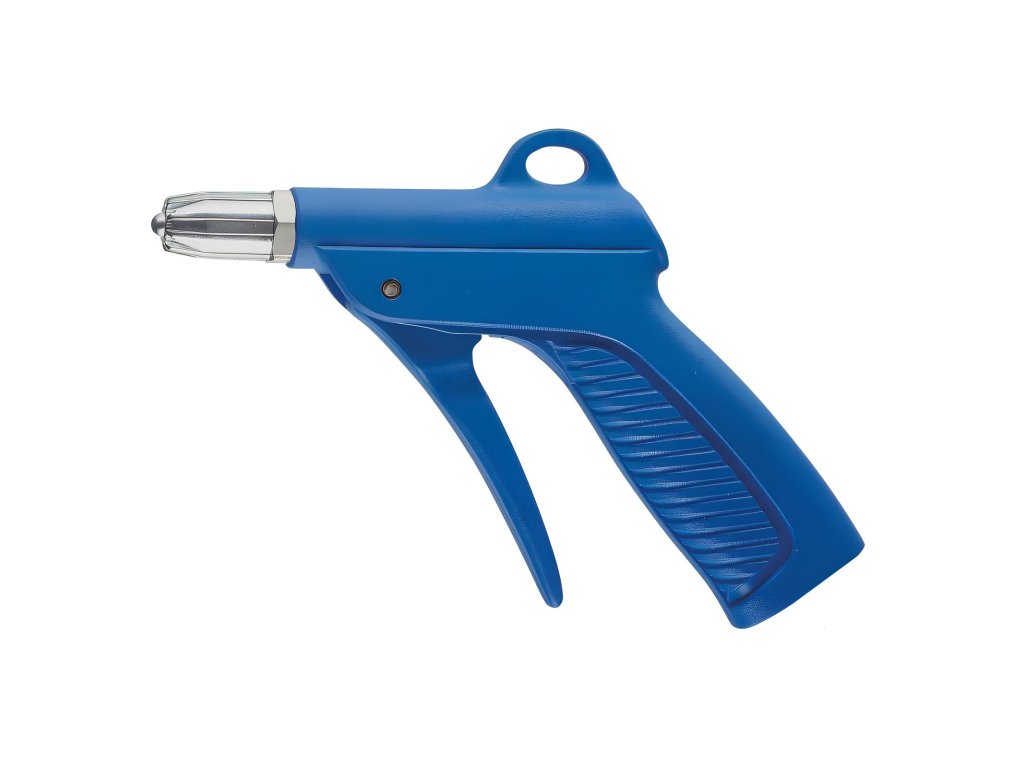

Blowing gun in plastic version BG470S-14I
- lightweight blow guns with hardened polyamide body for long life, ideal for jobs with maximum weight requirements
- infinitely variable flow control from zero to maximum flow by means of a trigger lever
- the body is equipped with an eye for the possibility of hanging the gun on the balancer
- nozzle thread M12x1,25 - possibility of mounting the whole range of nozzles, materials : body polyamide 6 GK30
- operating temperature -10/50°Cm for use in demanding professional and industrial applications
Additional parameters
Category: | Blow gun BG470 made of hardened polyamide |
---|---|
Pressure: | 10 bars |
Connecting: | Internal thread: 1/4" |
Material: | Polyamide 6 GK30 |
Nozzle material: | Aluminium |
Medium: | Compressed air |
Nozzle opening: | 1.5 mm |
Flow rate at 6 bar: | 300 l/min |
Temperature: | -10/+50°C |
Jet: | Safety soundproofed |
Nozzle thread: | M12 x 1.25 |
Minimální tlak: | 2 bar |
