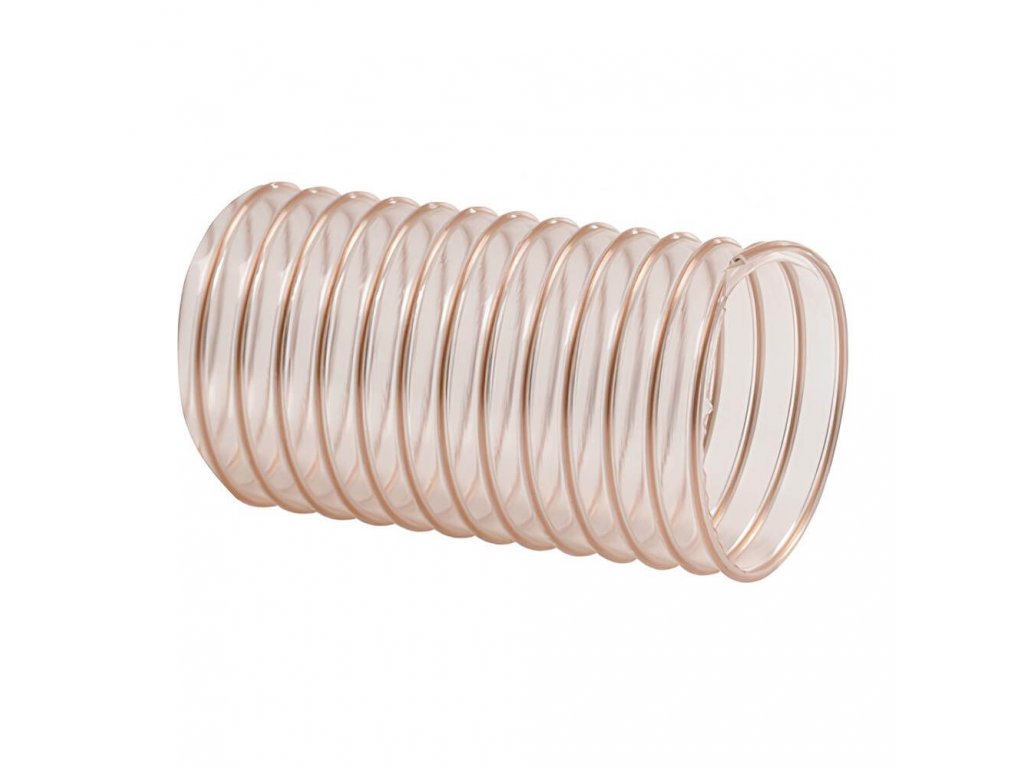

Extraction hose FoxiPro PUR H 60mm
Code: FPH-060Related products
Product detailed description
Extraction hose FoxiPro FPH-060
- material design: polyester-polyurethane with non-flammable adhesives and steel wire strut, wall thickness 1.45 mm
- working temperature -40/+90°C
- inner wall smooth for exceptional abrasion resistance and minimized pressure loss of the medium
- intended mainly for the transport of granules in plate glass production and also as abrasion hoses for metalworking, woodworking and industry
Additional parameters
| Category: | Extraction hose FoxiPro PUR H |
|---|---|
| Pressure: | 2,40 bar |
| Barva: | Clear - transparent |
| Material: | Polyester PU - non-flammable additives |
| Medium: | Air, Water, Steam, Ventilation, Air conditioning, Gases, Smoke, Dust, Abrasive material, Liquids, Sawdust, Slightly abrasive mat., Granules, Non-abrasive particles |
| Negative pressure: | 72.5 kPa |
| Bend radius: | 100 mm |
| Temperature: | -40 / +90 °C |
| Wall strength: | 1.45 mm |
| Inner diameter: | 60 mm |
| Reinforcement: | Copper coated steel wire |
