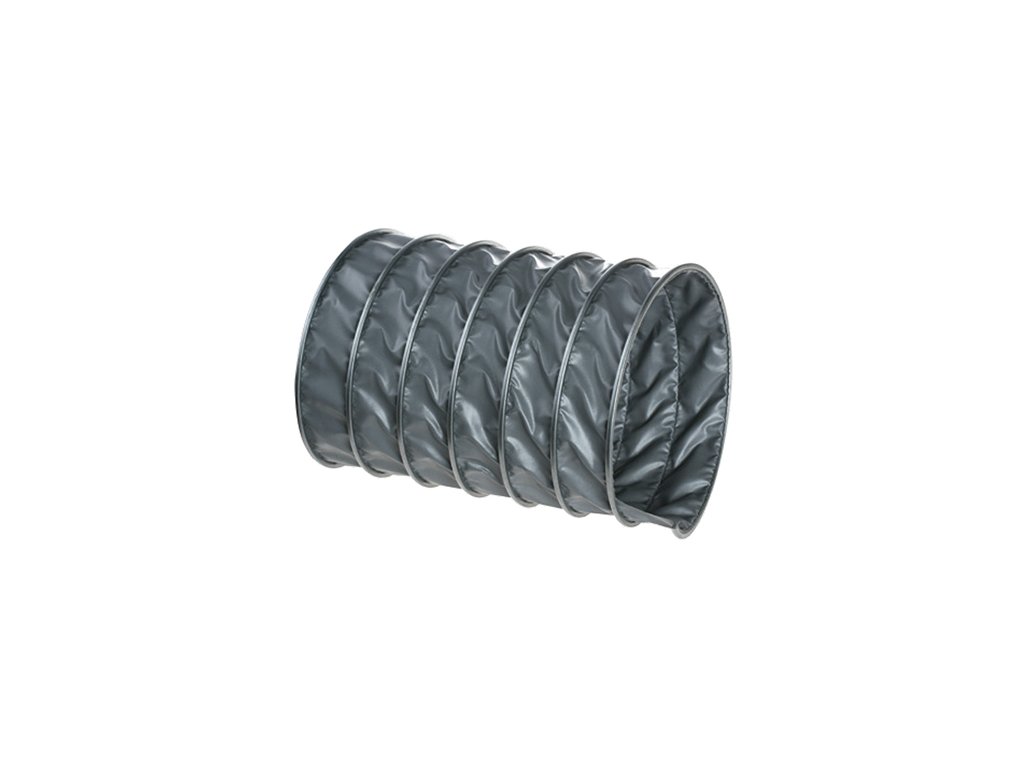

Extraction hose FoxiMulti PVC-Weld 90mm
Code: FMPW-090Product detailed description
Extraction hose FoxiMulti FMPW-090
- material design: glass fibre coated PVC with hot-dip galvanized steel spiral
- operating temperature up to -20/+90°C
- self-extinguishing, resistant to flying sparks
- universal hose for extraction of welding and soldering fumes
Additional parameters
| Category: | PVC-Weld suction hose with galvanized spiral |
|---|---|
| Pressure: | 0,28 bar |
| Barva: | Grey |
| Material: | Glass fiber, PVC |
| Medium: | Air, Steam, Ventilation, Air conditioning, Gases, Smoke, Dust |
| Negative pressure: | 13.0 kPa |
| Bend radius: | 83 mm |
| Temperature: | -20 / +100 °C |
| Inner diameter: | 90 mm |
| Reinforcement: | Hot-dip galvanized steel strip |
Be the first who will post an article to this item!
Be the first who will post an article to this item!
Extreme Heat is No ProblemFOXIflex is a unique supplier of original hoses, whose quality is hard to surpass. FOXImulti suction hoses are specially manufactured hoses that are world-leading due to their high mechanical resistance, even under demanding conditions. The hose body consists of several layers. Inside the hose, there are two layers of special fabrics mechanically attached to an external metal spiral that protects the hose. Hoses made in this patented way are distinguished by their resistance to damage and especially by their extreme temperature resistance, which can reach up to 1000 °C. They find applications, for example, in extremely demanding tests of high-performance engines, in the foundry industry, in exhaust emission technology, or in aerospace technology. |
  |
 |
Two Guarantees of Quality and HonestyThe quality of these innovative processes was noticed by the German association VTH, which, in collaboration with FOXIflex, established a strict DIN standard for spiral hoses made of thermoplastic polyurethane. FOXIflex products thus became the model for establishing this standard, which speaks to their quality. As if that were not enough, the company introduced its own quality mark alongside the DIN certificate. This solemn declaration with a small label states that the product was made from 100% original materials without any unscrupulous additives. The company thus shows its customers that they can fully trust FOXIflex. |
The offer of FOXIflex suction hoses at Kompresory vzduchotechnika can be found below.
