FoxiBase Santoprene SL 38 mm suction hose

Code: FBSNS-038
629 Kč / m 520 Kč excl. VAT
up to 20 days
Delivery to:
01.05.2025
Delivery offer

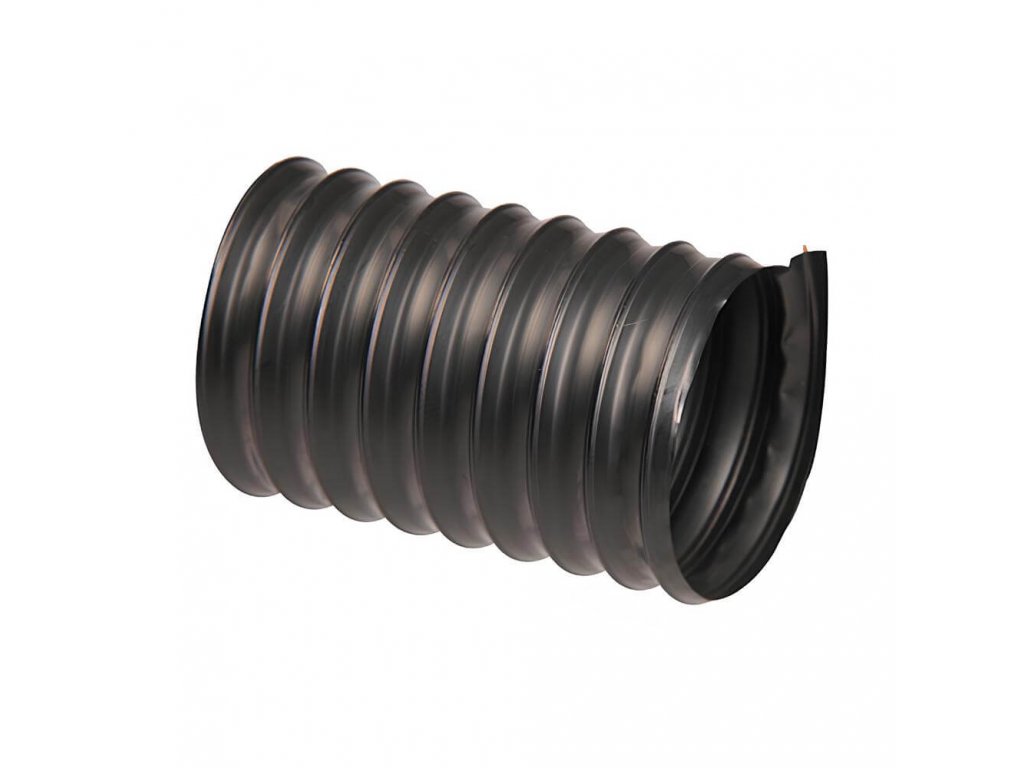

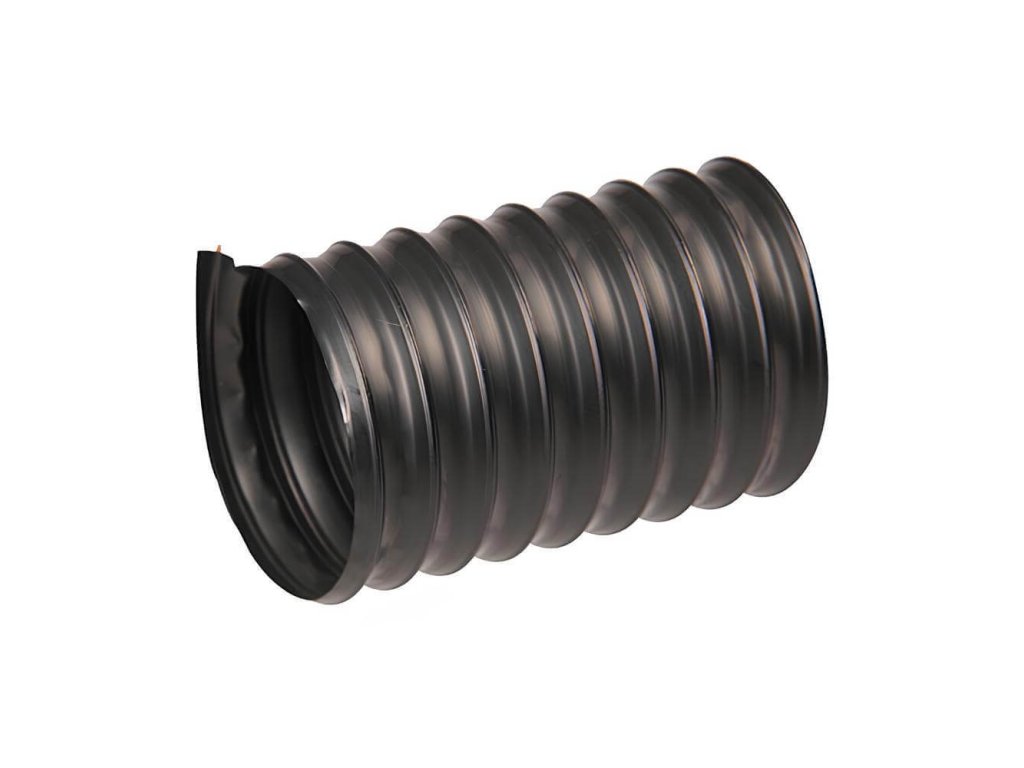

FoxiBase Santoprene SL 38 mm diameter suction hose made of 0.55 mm thick santoprene TPV with steel wire spiral. Smooth inside for exceptional abrasion resistance and to ensure constant media pressure. Resistant to hydrolysis and chemicals. Designed primarily for the conduction of water vapour from industrial ironing and drying plants, from pressing plants and for liquid substances.

Detailed information

Free shipping
Free shipping
For purchases over 5,000 CZK
We guarantee
We guarantee
Extended warranty and service
Discount voucher
Discount voucher
For every purchase
Return of goods within 30 days
Return of goods within 30 days
Completely at our expense

Product detailed description

Extraction hose FoxiBase FBSNS-038

  • material design: black TPV santoprene and steel wire strut, wall thickness 0.55 mm
  • working temperature up to +130°C
  • inner wall smooth for exceptional abrasion resistance and minimized pressure loss of the medium
  • lightweight construction, extremely flexible, resistant to hydrolysis and chemicals
  • designed mainly for extraction of water vapour from drying and ironing machines and from pressing machines

Additional parameters

Category: FoxiBase Santoprene SL suction hose
Pressure: 0.75 bar
Barva: Clear - transparent, White
Material: Santroprene TPV
Medium: Air, Water, Steam, Ventilation, Air conditioning, Gases, Liquids
Negative pressure: 25.0 kPa
Bend radius: 20 mm
Temperature: 0 / +130 °C
Wall strength: 0.55 mm
Inner diameter: 38 mm
Reinforcement: Copper coated steel wire

Be the first who will post an article to this item!

Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:

Security check

Extreme heat is no problem

FOXIflex is a unique supplier of original hoses, the quality of which is hard to beat. FOXImulti suction hoses are specially manufactured hoses that are world-leading in their high mechanical resistance, even under demanding conditions. The hose body is composed of several layers. Inside the hose there are two layers of special fabrics mechanically clamped to the outer metal spiral that protects the hose. The hoses produced in this patented way are distinguished by their resistance to damage and especially by their extreme thermal resistance, which can reach up to 1000 °C. It is thus used, for example, in the extremely demanding testing of high-performance engines, in the foundry industry, in exhaust emission technology or in aerospace engineering.

csm_Foxi_Logo-Zusatz_2015-f51aef_d890ed419912310
foxiflex-qualitaetssiegel-gr

Two guarantees of quality and honesty

The quality of these innovative processes was noticed by the German VTH association, which, in cooperation with the company FOXIflex, set a strict DIN standard for spiral hoses made of thermoplastic polyurethane. FOXIflex's products have thus become the basis for setting this standard, which is a testament to their quality. To make matters worse, in addition to the DIN certificate, the company also came up with its own quality label. This affidavit declares with a small label that the product has been made from 100% original ingredients without any unfair additives. The company is thus letting its customers know that they can fully trust FOXIflex.

The offer of suction hoses FOXIflex for Air conditioning compressors can be found below.
