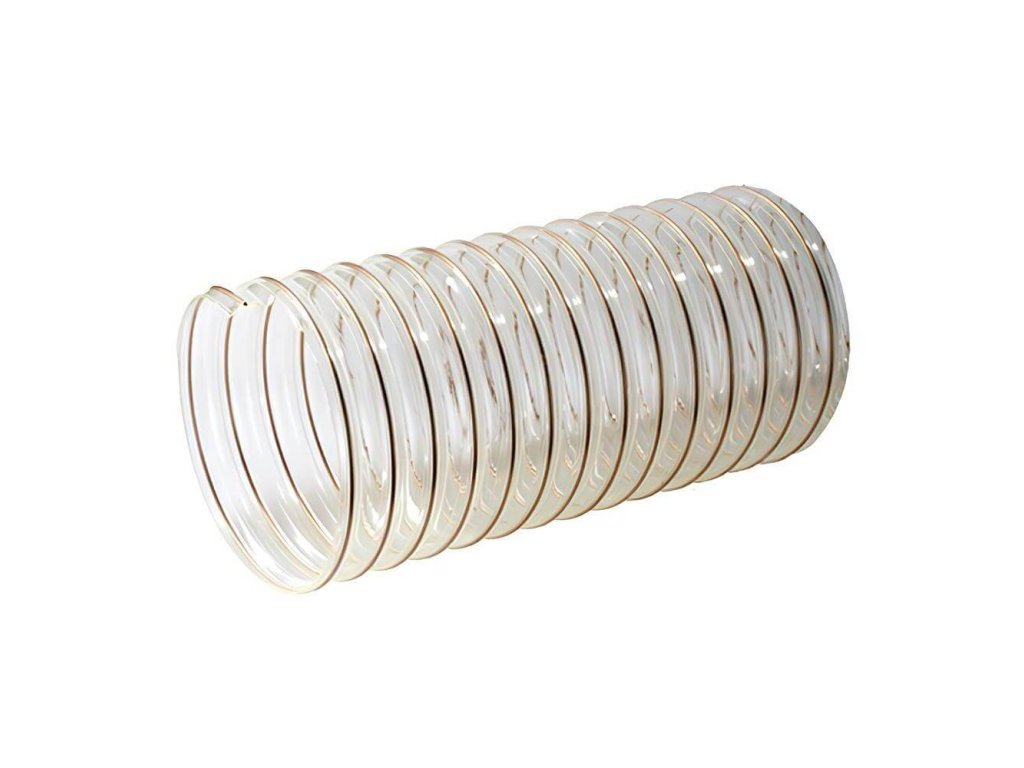

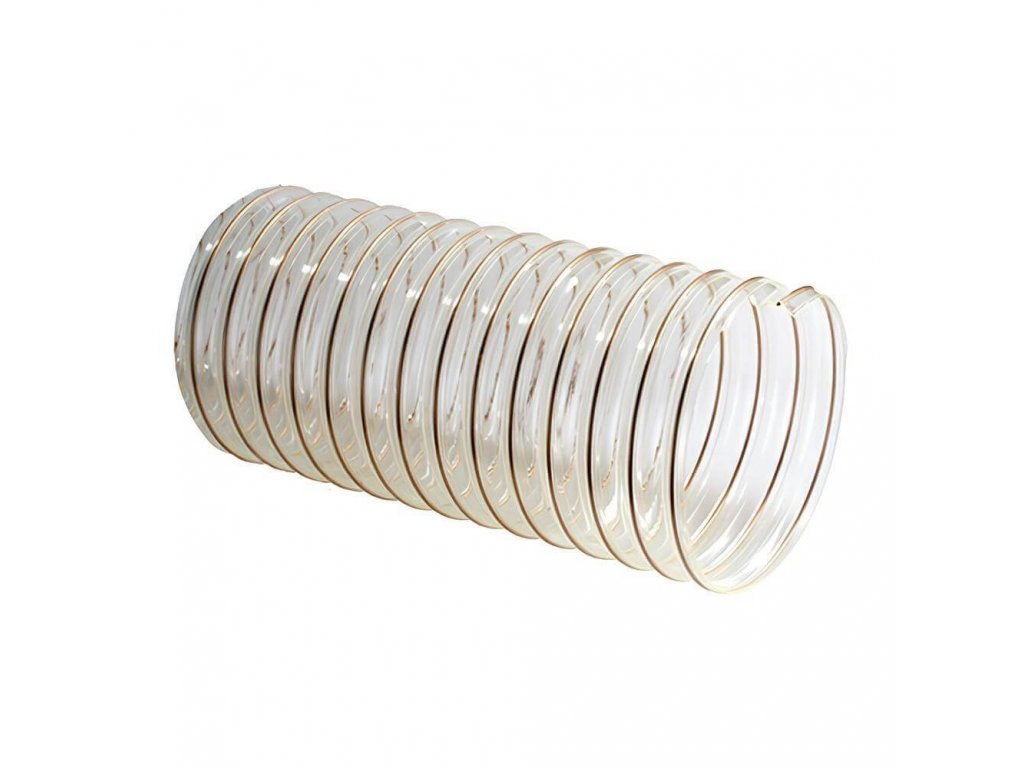

Extraction hose FoxiBase PUR SL-SE0.4 203 mm
Code: FBSE-203Related products
Product detailed description
Extraction hose FoxiBase FBSE-203
- material design: polyester-polyurethane with flame retardant additives and steel wire strut
- working temperature -40/+90°C
- flame retardant design according to DIN4102 B1
- designed for air intake and ventilation, for CNC machines and lightly abrasive material
Additional parameters
| Category: | Suction hose PUR SL-SE0,4 |
|---|---|
| Pressure: | 0,13 bar |
| Barva: | Clear - transparent |
| Material: | Polyester PU - non-flammable additives |
| Medium: | Air, Steam, Ventilation, Air conditioning, Gases, Smoke, Dust, Abrasive material, Liquids, Sawdust, Slightly abrasive mat. |
| Negative pressure: | 3.0 kPa |
| Bend radius: | 113 mm |
| Temperature: | -40 / +90 °C |
| Wall strength: | 0.4 mm |
| Inner diameter: | 203 mm |
| Reinforcement: | Copper coated steel wire |
Be the first who will post an article to this item!
Be the first who will post an article to this item!
Extreme Heat is No ProblemFOXIflex is a unique supplier of original hoses, whose quality is hard to surpass. FOXImulti suction hoses are specially manufactured hoses that are world-leading due to their high mechanical resistance, even under demanding conditions. The hose body consists of several layers. Inside the hose, there are two layers of special fabrics mechanically attached to an external metal spiral that protects the hose. Hoses made in this patented way are distinguished by their resistance to damage and especially by their extreme temperature resistance, which can reach up to 1000 °C. They find applications, for example, in extremely demanding tests of high-performance engines, in the foundry industry, in exhaust emission technology, or in aerospace technology. |
  |
 |
Two Guarantees of Quality and HonestyThe quality of these innovative processes was noticed by the German association VTH, which, in collaboration with FOXIflex, established a strict DIN standard for spiral hoses made of thermoplastic polyurethane. FOXIflex products thus became the model for establishing this standard, which speaks to their quality. As if that were not enough, the company introduced its own quality mark alongside the DIN certificate. This solemn declaration with a small label states that the product was made from 100% original materials without any unscrupulous additives. The company thus shows its customers that they can fully trust FOXIflex. |
The offer of FOXIflex suction hoses at Kompresory vzduchotechnika can be found below.
