Condensate drainage of OMEGA AIR filters

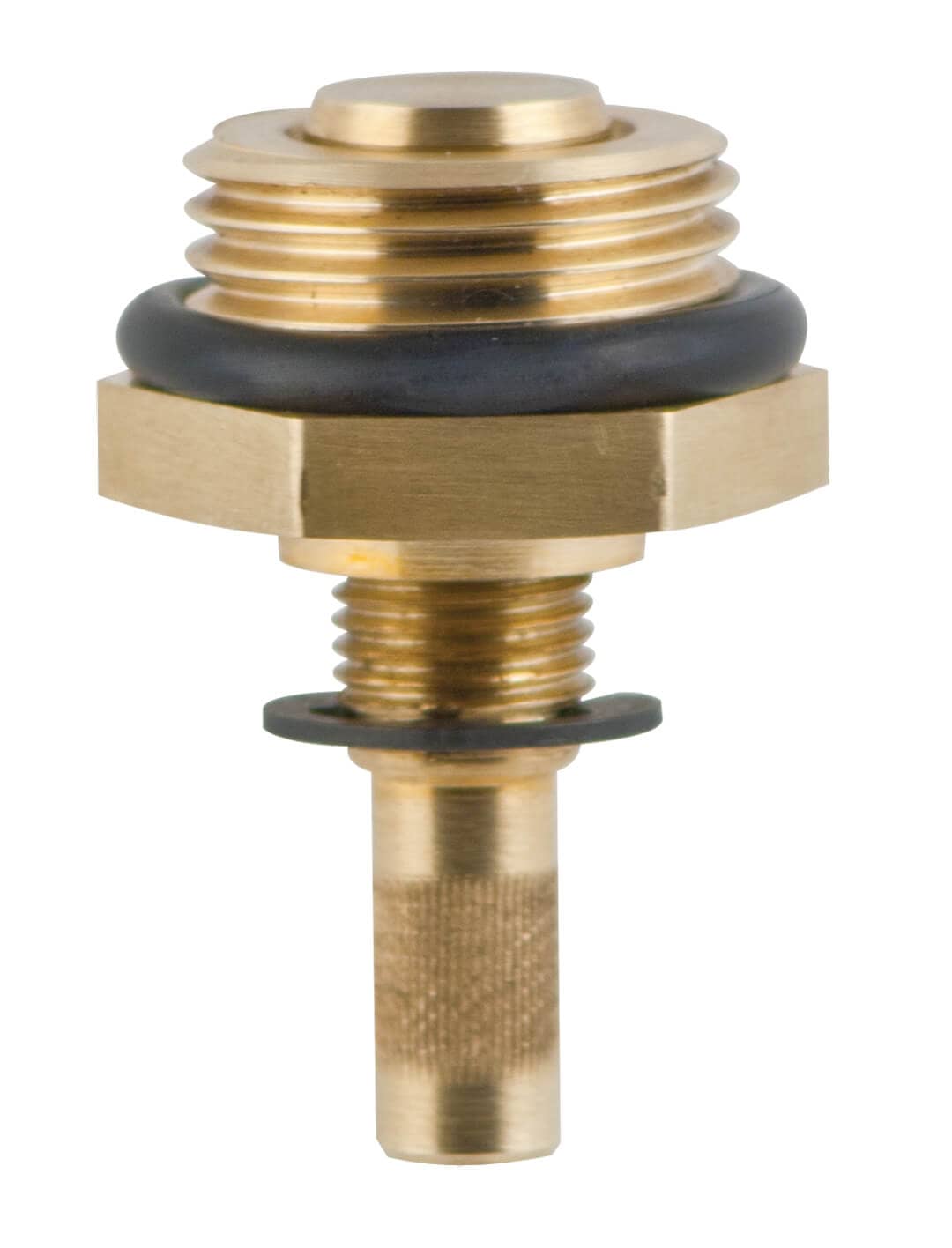

Manual MCD forgiveness
	the simplest way to drain condensate from pressure vessels and filter vessels threaded connection, control of the discharge by means of a rotary pin
Ordering number	Material	Pressure bar	Thread	SW mm
MCD	brass	20	1/2"	24

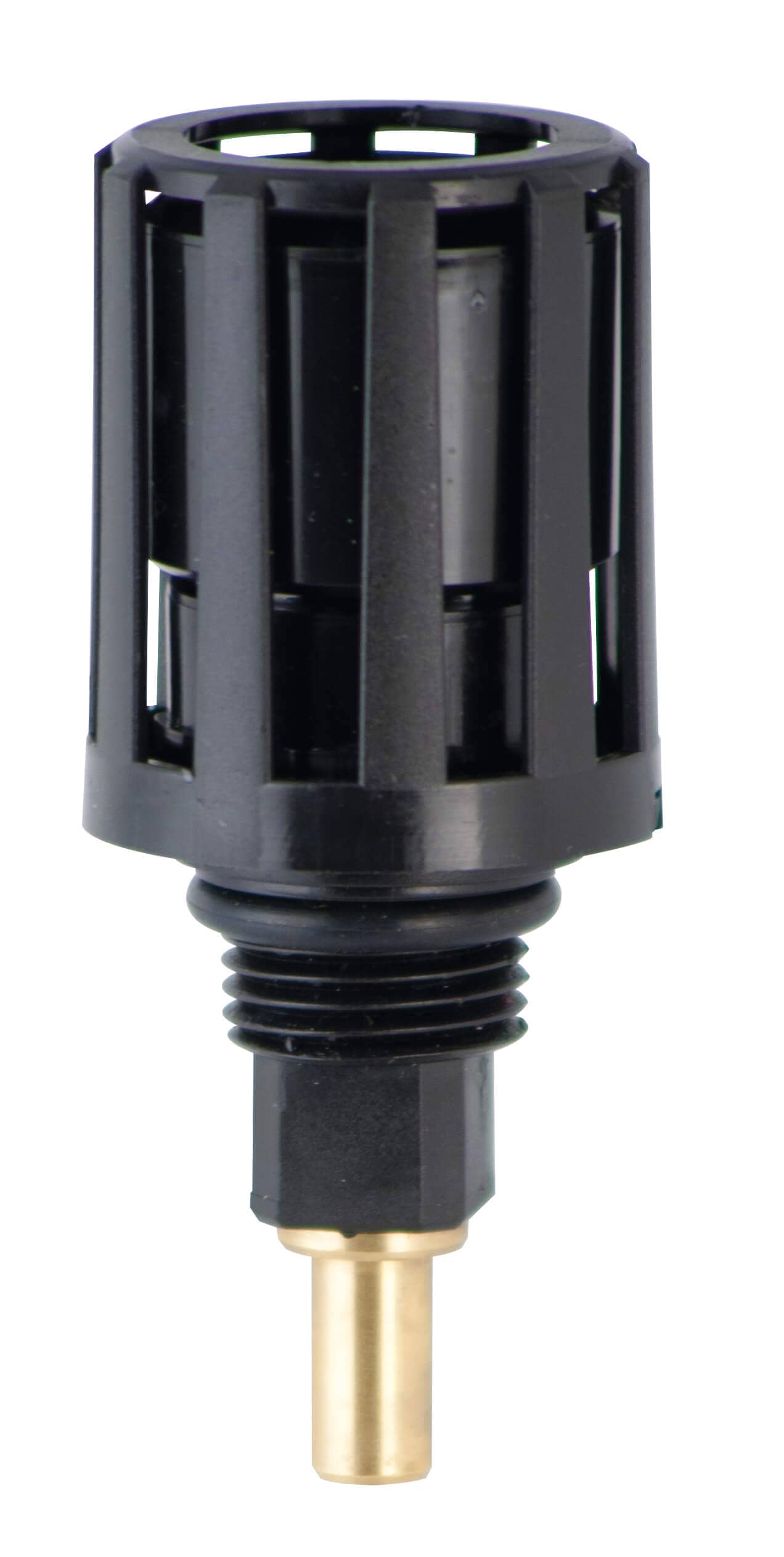

AOK16B float forgiveness for air filters
	automatic condensate discharge on float principle primarily designed for discharge from OMEGA AIR series filter vessels made of brass and hardened plastic threaded connection, emergency manual opening
Ordering number	Pressure bar	Thread "	Thorn mm
AOK16B	16 bar	1/2"	8

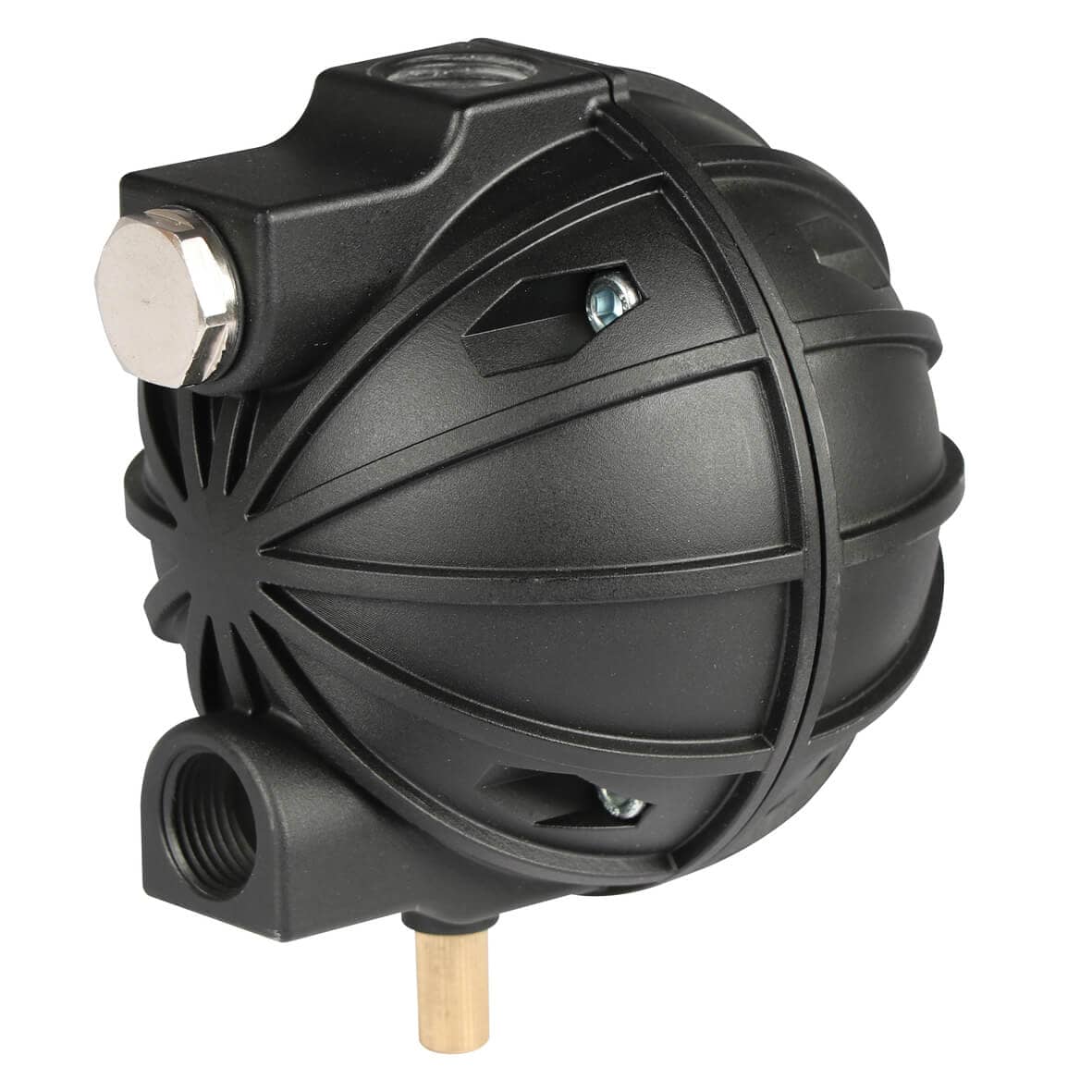

AOK13PA condensate drain float
	for mounting on the outside of the filter vessel made of PA; working pressure up to 13 bar connection thread 1/2"
Ordering number	Pressure bar	Thread "	Thorn mm
AOK13PA	13 bar	1/2"	8

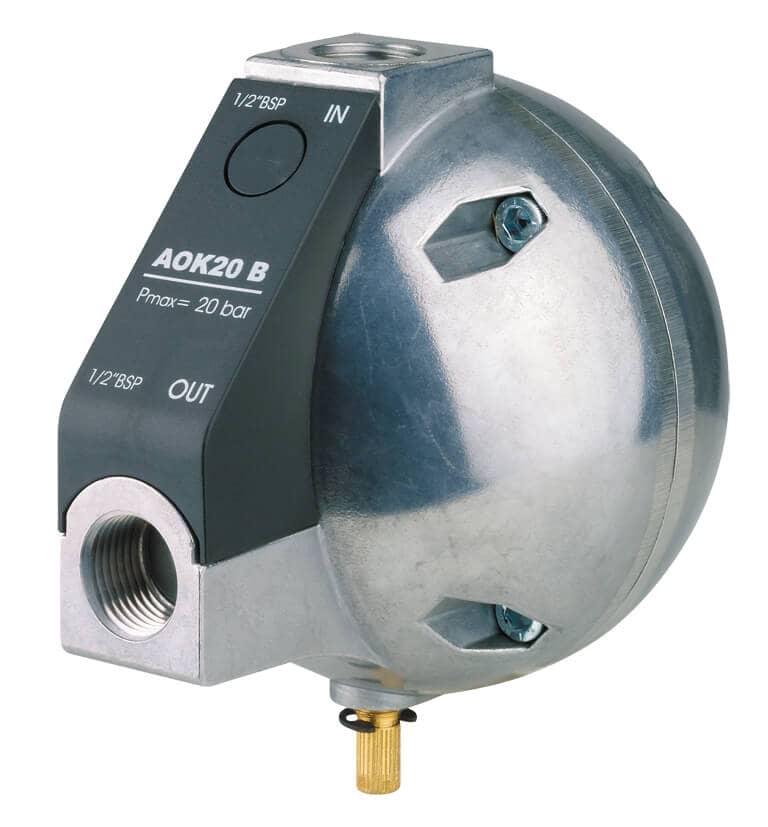

AOK20B condensate drain float
	for mounting on the outside of the filter vessel aluminium design; working pressure up to 20 bar connection thread 1/2"
Ordering number	Pressure bar	Thread "	Thorn mm
AOK20B	20 bar	1/2"	8

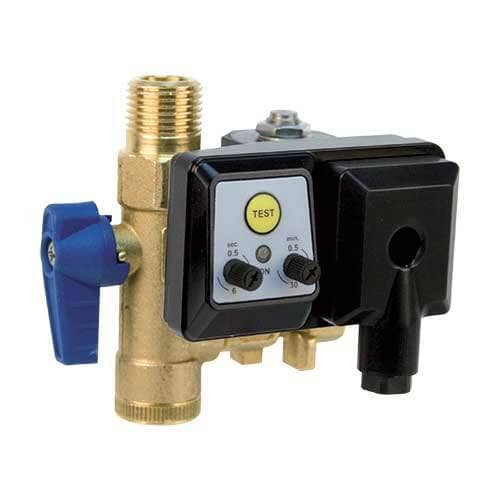

Timed condensate discharge TD
	time relay controlled solenoid relief valves possibility of setting the periodicity and the time of firing in the range of 0.5-45 min and 0-10 s by means of control wheels auxiliary manual valve closure with lever, valve body made of brass or stainless steel designed for automatic condensate discharge from dryers, pressure vessels and filters flow rate in Kvs is indicated for TDM420 drainers
Ordering number	Forgiveness (l/h)	Pressure bar	Thread "	Valve body	Forgiving interval
TD16M	144,0	16 bar	1/2"	brass	0.5 - 45 min
TD25M	113,0	25 bar	1/2"	brass	0.5 - 45 min
TD50M	74,0	50 bar	1/2"	brass	0.5 - 45 min
TD150M	95,0	150 bar	1/2"	brass	0.5 - 45 min
TD16MR	204,0	16 bar	1/2"	stainless steel	0.5 - 45 min
TD420M-230VAC	0,3	420 bar	1/2"	stainless steel	0.5 - 45 min
TD420M-24VDC	0,3	420 bar	1/2"	stainless steel	0.5 - 45 min

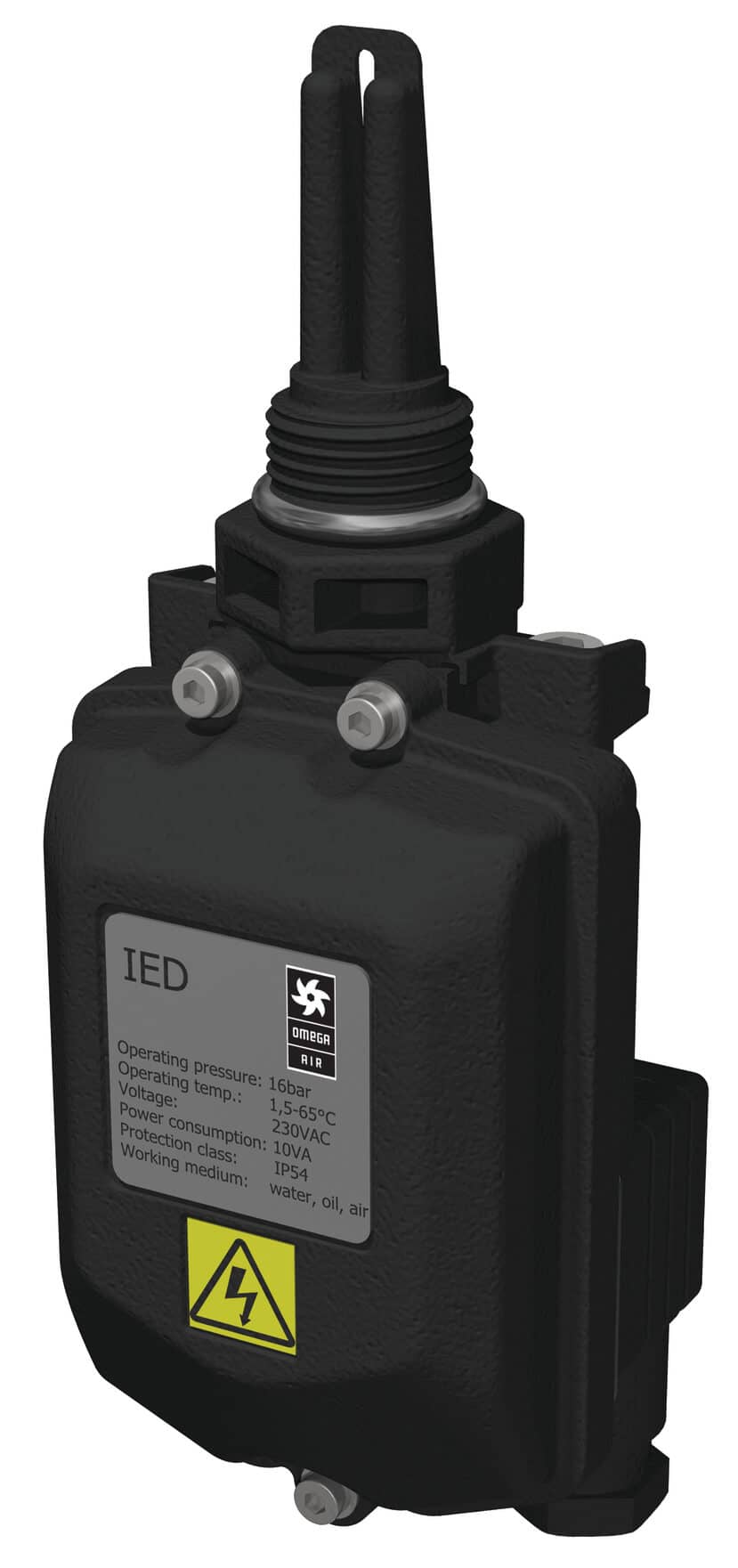

Electronic IED Condensate Relief
	electronic condensate drainage IEDs are primarily designed to drain condensed water from filter vessels equipped with LED indicator and test button iEDC version with alarm output for remote monitoring and service connection for obtaining operating data from the device operating temperature +1,5 °C to +65 °C, electrical protection IP54, sensor height in the container 50 mm voltage 230 V
Ordering number	Pressure bar	Version	Thread "
IED	16 bar	LED indication	1/2"
IEDC	16 bar	LED indication with alarm output	1/2"
IED-MK	IED and IEDC condensate discharge service kit

Bestsellers

1 858 Kč –2 %

AOK20B float release

(16 pcs)

Code: AOK20B

Was: 1 858 Kč (–2 %)

1 820 Kč

(1 504 Kč excl. VAT)

1 177 Kč –2 %

Float release AOK16B

(54 pcs)

Code: AOK16B

Was: 1 177 Kč (–2 %)

1 153 Kč

(953 Kč excl. VAT)

td420m 24vdc odpoustec kondenzatu vysokotlak kompresor bar nerez (1)

63 465 Kč –2 %

Time condensate drain TD420M-24VDC

Code: TD420M-24VDC

Was: 63 465 Kč (–2 %)

62 196 Kč

(51 402 Kč excl. VAT)

60 936 Kč –2 %

Time condensate drain TD420M-230VAC

Code: TD420M-230VAC

Was: 60 936 Kč (–2 %)

59 717 Kč

(49 353 Kč excl. VAT)

TD16MR odpoustec kondenzatu vysokotlak kompresor bar nerez

6 794 Kč –2 %

Time condensate drain TD16MR

Code: TD16MR

Was: 6 794 Kč (–2 %)

6 658 Kč

(5 502 Kč excl. VAT)

TD16M odpoustec kondenzatu vysokotlak kompresor bar mosaz

6 586 Kč –2 %

Time condensate drain TD150M

Code: TD150M

Was: 6 586 Kč (–2 %)

6 454 Kč

(5 334 Kč excl. VAT)

6 586 Kč –2 %

Time condensate drain TD50M

(2 pcs)

Code: TD50M

Was: 6 586 Kč (–2 %)

6 454 Kč

(5 334 Kč excl. VAT)

5 013 Kč –1 %

Time condensate drain TD25M

Code: TD25M

Was: 5 013 Kč (–1 %)

4 913 Kč

(4 060 Kč excl. VAT)

IED MK IED elektronicky odpoustec kondenzatu filtru omega air

1 705 Kč –1 %

Service kit for condensate evacuator IED

(4 pcs)

Code: IED-MK

Was: 1 705 Kč (–1 %)

1 671 Kč

(1 381 Kč excl. VAT)

IED elektronicky odpoustec kondenzatu filtru omega air

5 905 Kč –2 %

IEDC electronic condensate drain

Code: IEDC

Was: 5 905 Kč (–2 %)

5 787 Kč

(4 783 Kč excl. VAT)

Show more products

14 items total

Original parts

6 586 Kč –2 %

Time condensate drain TD50M

(2 pcs)

5 334 Kč excl. VAT

6 454 Kč / pcs

Electronic timed condensate drain for compressed air systems up to 50 bar, operating on a time switching valve. External mounting on the filter body with 1/2" thread. Simple...

Code: TD50M

Original parts

3 694 Kč –2 %

Electronic condensate drain IED

(4 pcs)

2 992 Kč excl. VAT

3 620 Kč / pcs

Electronic IEDs are primarily designed to drain condensed water from filter vessels. Equipped with LED indicator and test button. Operating temperature +1,5 °C to +65 °C,...

Code: IED

New Original parts

3 526 Kč –2 %

Time condensate drain TD16M

(58 pcs)

2 855 Kč excl. VAT

3 455 Kč / pcs

Electronic timed condensate drain for compressed air systems up to 16 bar, operating on a time switching valve. External mounting on the filter body with 1/2" thread. Simple...

Code: TD16M

Original parts

1 177 Kč –2 %

Float release AOK16B

(54 pcs)

953 Kč excl. VAT

1 153 Kč / pcs

Float valve for condensate discharge from compressed air system working on float principle. Version AOK16B for internal mounting of filter vessels using 1/2" thread.

Code: AOK16B

Original parts

1 335 Kč –2 %

AOK13PA float release

(8 pcs)

1 081 Kč excl. VAT

1 308 Kč / pcs

Float-operated condensate drain valve for compressed air systems up to 13 bar. Version AOK13PA for external mounting on the filter body with 1/2" thread.

Code: AOK13PA

Original parts

1 858 Kč –2 %

AOK20B float release

(16 pcs)

1 504 Kč excl. VAT

1 820 Kč / pcs

Float-operated condensate drain valve for compressed air systems up to 20 bar. Version AOK20B for external mounting on the filter body with 1/2" thread.

Code: AOK20B

Original parts

436 Kč –1 %

Manual condensate drain MCD

(4 pcs)

354 Kč excl. VAT

428 Kč / pcs

The simplest way to drain condensate from pressure vessels and filter vessels. Connection by thread, control of the firing by a rotary pin.

Code: MCD

Original parts

1 705 Kč –1 %

Service kit for condensate evacuator IED

(4 pcs)

1 381 Kč excl. VAT

1 671 Kč / pcs

Service kit for condensate evacuator IED for eelectronic IED triggers. The devices are primarily designed to drain condensed water from the filter vessels.

Code: IED-MK

Original parts

5 905 Kč –2 %

IEDC electronic condensate drain

4 783 Kč excl. VAT

5 787 Kč / pcs

The IEDC electronic skimmers with alarm output for remote monitoring and with the possibility of service connection for obtaining operating data from the device are primarily...

Code: IEDC

Original parts

6 586 Kč –2 %

Time condensate drain TD150M

5 334 Kč excl. VAT

6 454 Kč / pcs

Electronic timed condensate drain for compressed air systems up to 150 bar, operating on a time switching valve. External mounting on the filter body with 1/2" thread. Simple...

Code: TD150M

Original parts

6 794 Kč –2 %

Time condensate drain TD16MR

5 502 Kč excl. VAT

6 658 Kč / pcs

Electronic stainless steel timed condensate drain from compressed air system up to 16 bar, working on time switching valve. External mounting on the filter body with 1/2"...

Code: TD16MR

Original parts

5 013 Kč –1 %

Time condensate drain TD25M

4 060 Kč excl. VAT

4 913 Kč / pcs

Electronic timed condensate drain for compressed air systems up to 25 bar, operating on a time switching valve. External mounting on the filter body with 1/2" thread. Simple...

Code: TD25M

Original parts

60 936 Kč –2 %

Time condensate drain TD420M-230VAC

49 353 Kč excl. VAT

59 717 Kč / pcs

Electronic timed condensate drain for compressed air systems up to 420 bar, operating on a time switching valve. External mounting on the filter body with 1/4" thread. Simple...

Code: TD420M-230VAC

Original parts

63 465 Kč –2 %

Time condensate drain TD420M-24VDC

51 402 Kč excl. VAT

62 196 Kč / pcs

Electronic time release condensate drain with 24V DC voltage from compressed air system up to 420 bar, working on time switching valve. External mounting on the filter body with...

Code: TD420M-24VDC
