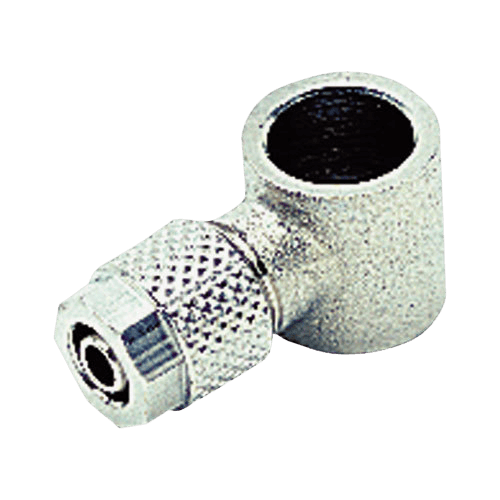

    Clamps with screw sleeves with overrunning nut

    Objímky pro šroubení s převlečnou maticí
    • The system ensures reliable connection of plastic and PVC tubing
    • Nickel-plated brass body MS 58, NBR sealing ring
    • Tubular, tapered or metric threads
    • Designed especially for applications with requirements for resistance to mechanical stress, use in automation, measuring and control technology

    Sleeves for single hollow screws for screwdriving with overdrive nut
    Ordering
    number    		 Tube
    mm    		 Thread
    "    		 Diameter
    mm    		 Height
    mm    		 Length
    mm
    1500-M66 6/4 mm M6 9 12,5 16,5
    1500-186 6/4 mm 1/8" 14 15 23,3
    1500-146 6/4 mm 1/4" 18 17 25,3
    1500-386 6/4 mm 3/8" 21 20 26,5
    1500-188 8/6 mm 1/8" 14 15 24,7
    1500-148 8/6 mm 1/4" 18 17 27,6
    1500-388 8/6 mm 3/8" 21 20 27,7
    1500-128 8/6 mm 1/2" 26 24 31,2
    1500-1410 10/8 mm 1/4" 18 17 29,5
    1500-3810 10/8 mm 3/8" 21 20 30,5
    1500-1210 10/8 mm 1/2" 26 24 34
    1500-3812 12/10 mm 3/8" 21 20 31,5
    1500-1212 12/10 mm 1/2" 26 24 35
    1500-1215 15/12.5 mm 1/2" 26 24 36,5
