Bypass pipe for RDP-300 and RDP-380
Code: RDP-300-BPRelated products
Product detailed description

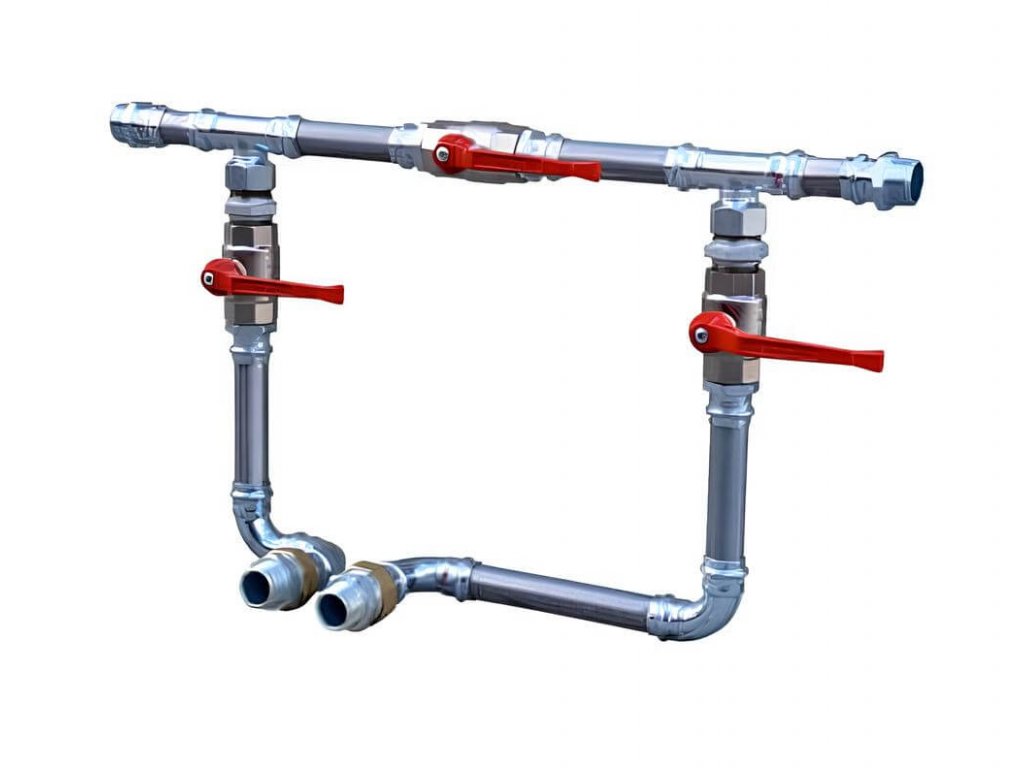

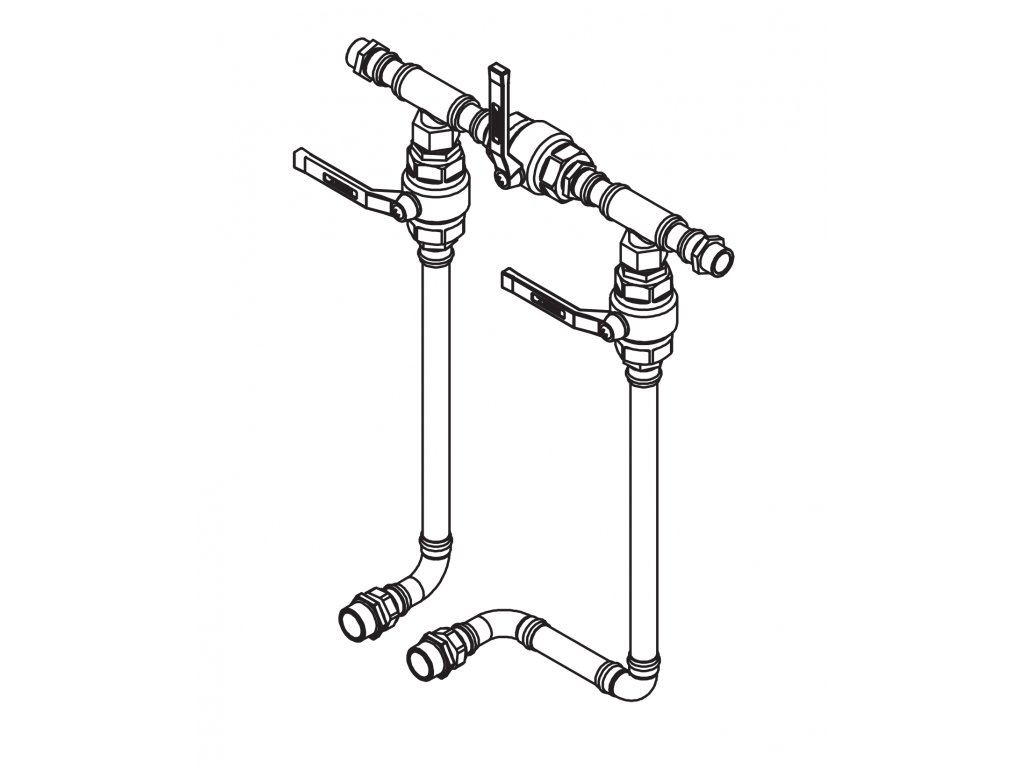

Bypass piping for RDP-300/RDT-300 to RDP-380/RDT-380

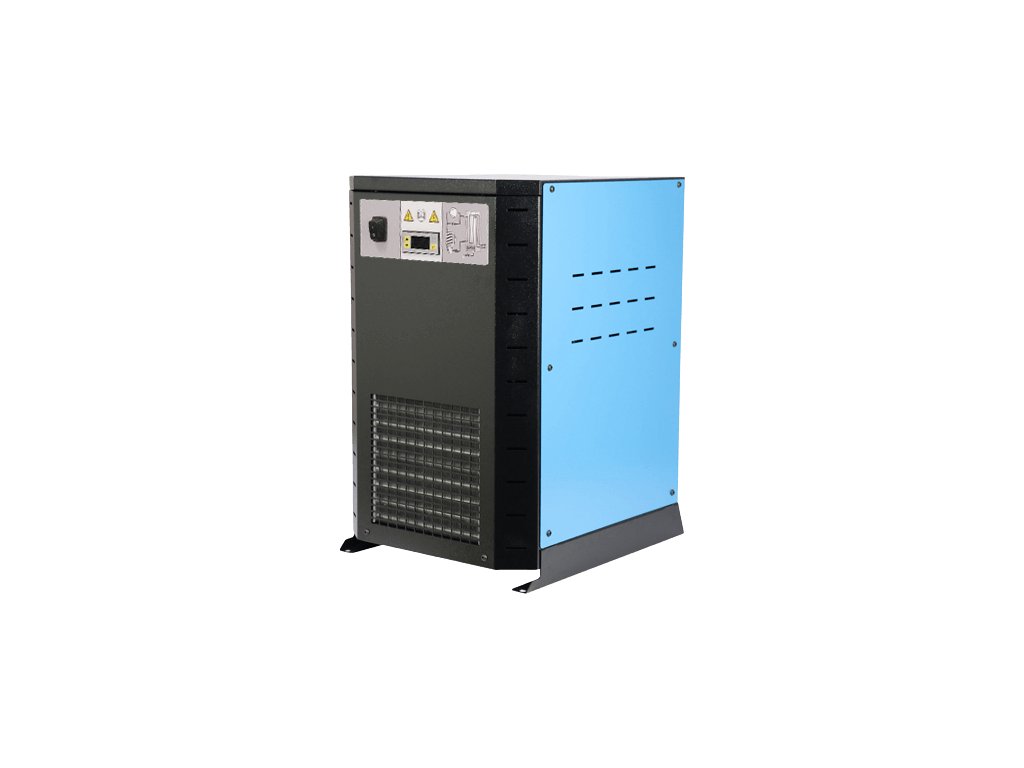

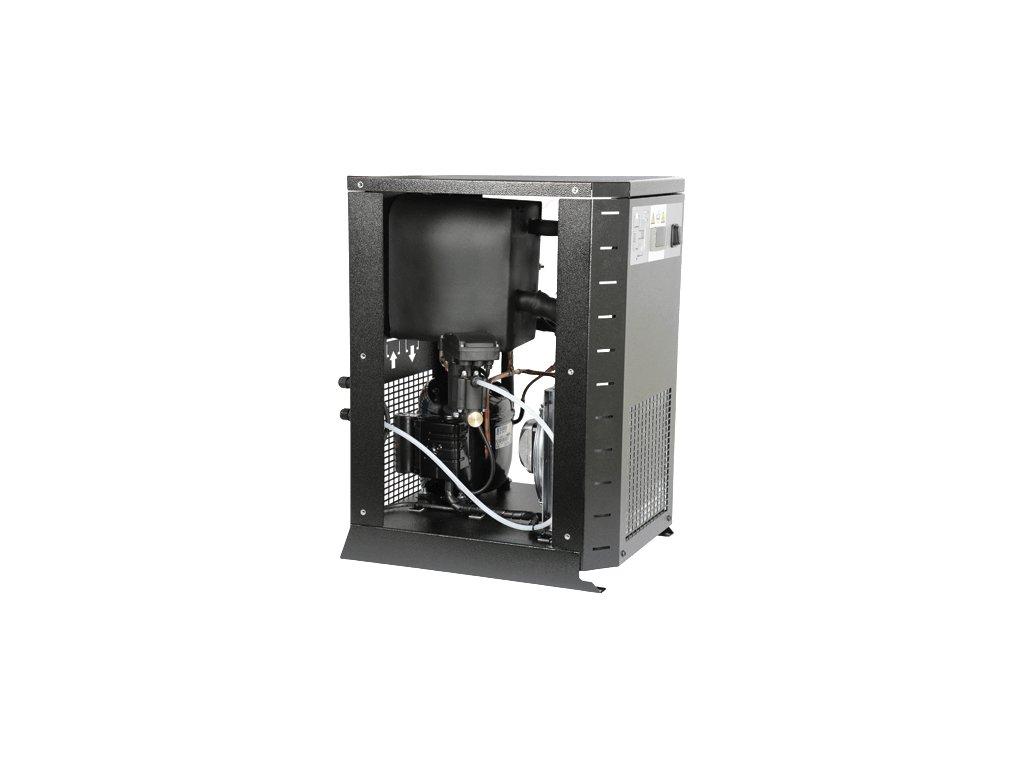

- condensation dryers for removing moisture from compressed air
- electronic control unit with dew point display, alarm setting (high/low temperature and temperature sensor failure)
- integrated lossless electronic condensate drain EMD12 with self-cleaning directly controlled valve (from model RDP-900 - 2 drains)
- switching on/off via button next to the control unit
- pressure dew point +3 °C; modern environmentally friendly refrigerant R134a
- working pressure 14 bar, operating temperature in the installation room +1.5 °C to +45 °C, maximum medium temperature +55 °C
- reference conditions for flow measurement: ambient temperature +25 °C, medium temperature +35 °C, working pressure 7 bar, dew point +3 °C
- note: for conditions other than the reference, a correction factor must be used for the calculation - please contact our company
Correction factor - Working pressure |
||||||||
| Working pressure bar | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 |
| Correction factor | 0,77 | 0,86 | 0,93 | 1,00 | 1,05 | 1,14 | 1,21 | 1,27 |
Correction factor - Inlet temperature |
||||||||
| Temperature °C | ≤25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 |
| Correction factor | 1,20 | 1,12 | 1,00 | 0,83 | 0,69 | 0,59 | 0,50 | 0,45 |
Additional parameters
| Category: | RDP Condensing Compressed Air Dryers |
|---|---|
| Pressure: | 14 bar |
| Connecting: | 1 1/4" |
