    Bypass pipe for RDP-140 to RDP-235

    Code: RDP-140-BP
    Not rated
    Brand: OMEGA AIR
    FREEFREE 11 028 Kč –1 %
    Bypass pipe for RDP-140 to RDP-235
    11 028 Kč –1 % 10 808 Kč / pcs 8 932 Kč excl. VAT
    Stock (2 pcs)
    Delivery to:
    26.02.2025
    Delivery offer

    Bypass or bypass piping for Omega Air compressed air dryers RDP-140/RDT-140 to RDP-235/RDT-235 for easy maintenance and servicing of the machine.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Related products

    RDP 100 susicky vzduchu OMEGA AIR
    Tip
    FREEFREE 46 870 Kč –2 %
    Air dryer OMEGA - RDP-140
    Stock (2 pcs)
    37 961 Kč excl. VAT
    45 933 Kč

    Compressed air condensation dryer for dew point +3°C. The maximum inlet pressure is 14 bar with a flow rate of up to 144 m³/hr (2,333 l/min) and a G1" male thread connection....

    Code: RDP-140
    RDP 100 susicky vzduchu OMEGA AIR
    Tip
    FREEFREE 52 863 Kč –2 %
    Air dryer OMEGA - RDP-180
    Stock (9 pcs)
    42 815 Kč excl. VAT
    51 806 Kč

    Compressed air condensation dryer for dew point +3°C. The maximum inlet pressure is 14 bar with a flow rate of up to 180 m³/hr (3,000 l/min) and connection via a G1" male...

    Code: RDP-180
    RDP 100 susicky vzduchu OMEGA AIR
    Tip
    FREEFREE 55 015 Kč –2 %
    Air dryer OMEGA - RDP-235
    Stock (9 pcs)
    44 557 Kč excl. VAT
    53 914 Kč

    Compressed air condensation dryer for dew point +3°C. The maximum inlet pressure is 14 bar with a flow rate of up to 235 m³/hr (3,916 l/min) and a G1" male thread connection....

    Code: RDP-235
    Air dryer OMEGA - RDL-180
    FREEFREE 38 822 Kč –2 %
    Air dryer OMEGA - RDL-180
    Stock (1 pcs)
    31 442 Kč excl. VAT
    38 045 Kč

    Condensing compressed air dryer for dew point +5°C. The maximum inlet pressure is 13 bar with a flow rate of up to 180 m³/hr (3,000 l/min) and connection via a G 1" male thread....

    Code: RDL-180
    Air dryer OMEGA - RDL-235
    FREEFREE 41 289 Kč –2 %
    Air dryer OMEGA - RDL-235
    up to 14 days
    33 440 Kč excl. VAT
    40 463 Kč

    Condensing compressed air dryer for dew point +5°C. The maximum inlet pressure is 13 bar with a flow rate of up to 235 m³/hr (3 916 l/min) and connection via a G 1" male thread....

    Code: RDL-235
    Filter insert for pre-filter AFM-60
    Sellout Original parts
    1 982 Kč –2 %
    Filter insert for pre-filter AFM-60
    Stock (1 pcs)
    1 605 Kč excl. VAT
    1 942 Kč

    AFM prefilters according to ISO 8573.1. Filtration capacity 0,1 um, residual oil 0,1 mg/m3. AFM filters are used to remove coarse mechanical impurities from compressed air and...

    Code: AFM-60V
    Filter insert for AFS-170 microfilter
    Sellout Original parts
    4 378 Kč –2 %
    Filter insert for AFS-170 microfilter
    Stock (3 pcs)
    3 545 Kč excl. VAT
    4 290 Kč

    The AFS filter insert is used to remove the largest mechanical impurities from compressed air up to 0.01 um according to ISO 8573-1 class 1. Easy replacement thanks to removable...

    Code: AFS-170V
    Filter insert for dust filter AFR-20
    Sellout Original parts
    1 115 Kč –1 %
    Filter insert for dust filter AFR-20
    Stock (1 pcs)
    903 Kč excl. VAT
    1 093 Kč

    AFR dust filters according to ISO 8573.1. Filtration capacity 1 um. AFR filters are designed for systems with high dust content, typically used as an outlet filter on adsorption...

    Code: AFR-20V
    Show all related products Previous product Next product

    Product detailed description

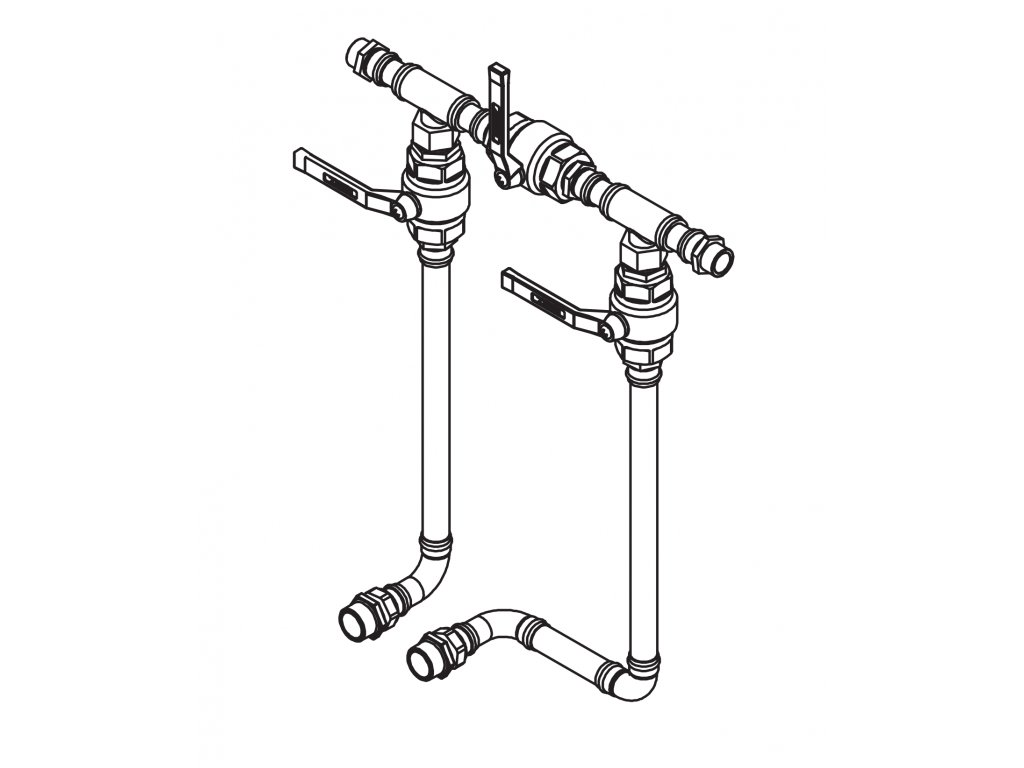

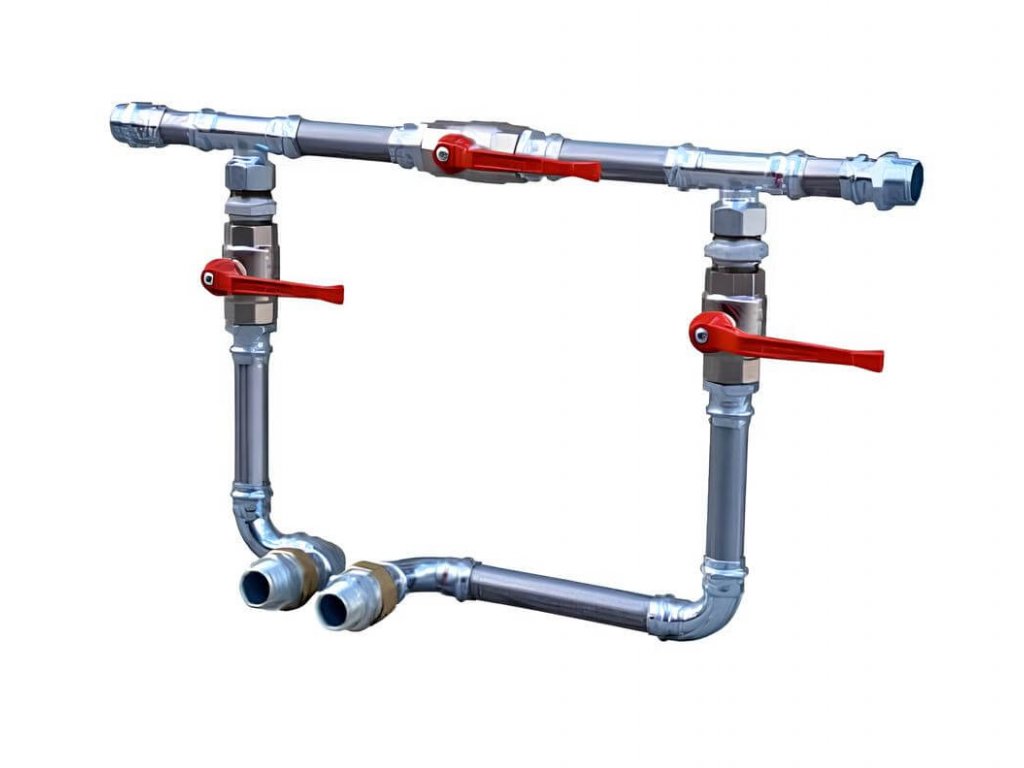

    Bypass piping for RDP-140/RDT-140 to RDP-235/RDT-235

    • condensation dryers for removing moisture from compressed air
    • electronic control unit with dew point display, alarm setting (high/low temperature and temperature sensor failure)
    • integrated lossless electronic condensate drain EMD12 with self-cleaning directly controlled valve (from model RDP-900 - 2 drains)
    • switching on/off via button next to the control unit
    • pressure dew point +3 °C; modern environmentally friendly refrigerant R134a
    • working pressure 14 bar, operating temperature in the installation room +1.5 °C to +45 °C, maximum medium temperature +55 °C
    • reference conditions for flow measurement: ambient temperature +25 °C, medium temperature +35 °C, working pressure 7 bar, dew point +3 °C
    • note: for conditions other than the reference, a correction factor must be used for the calculation - please contact our company

    Correction factor - Working pressure
    Working pressure bar 4 5 6 7 8 10 12 14
    Correction factor 0,77 0,86 0,93 1,00 1,05 1,14 1,21 1,27

    Correction factor - Inlet temperature
    Temperature °C ≤25 30 35 40 45 50 55 60
    Correction factor 1,20 1,12 1,00 0,83 0,69 0,59 0,50 0,45

    Additional parameters

    Category: Compressed Air Moisture Removal Air Dryers
    Pressure: 14 bar
    Connecting: 1"
