Stainless steel two-piece faucet - 3/8"
Code: 009V-010-316Product detailed description

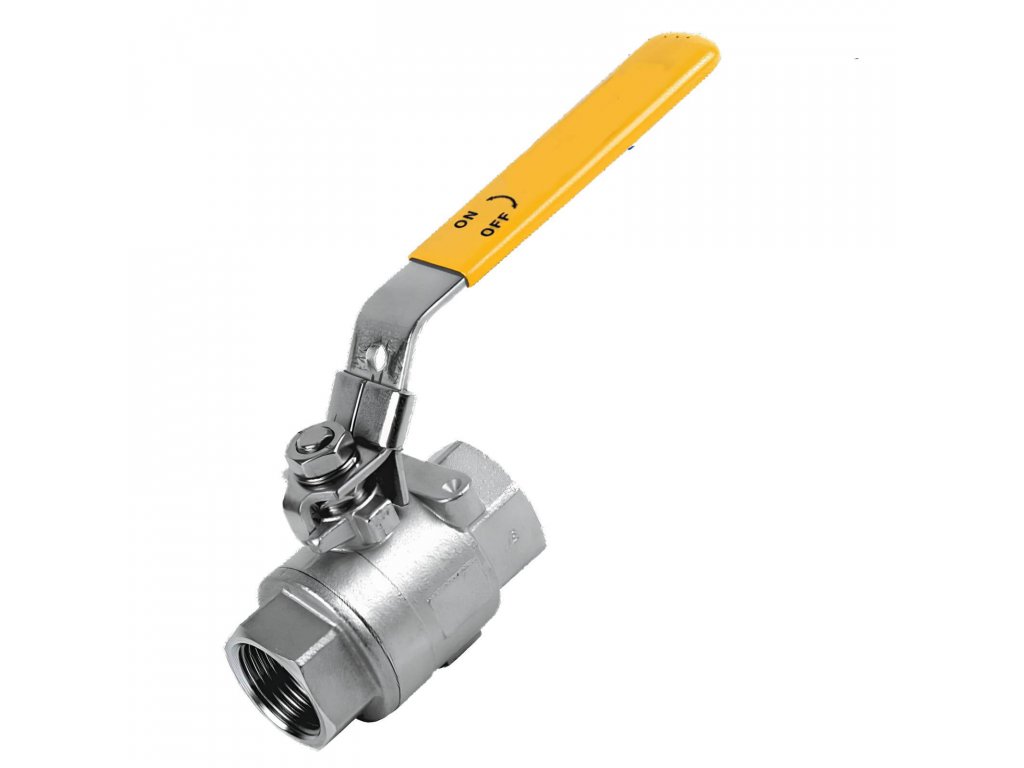

Two-piece ball valve in stainless steel 009V-010-316
- Use as a shut-off valve for aggressive and non-aggressive liquids, gases and bulk solids mainly in the food and chemical industries
- It is very suitable where contamination of the working substance with corrosive fumes is undesirable
- The kouhout has soft saddles and a floating ball. Teflon seal and can be tightened when worn
- The construction lengths are shorter than the CSN and DIN standards
- Inner pipe threads G 3/8"
Additional parameters
| Category: | Two-part lockable stainless steel taps |
|---|---|
| Pressure: | 63 bar |
| Connecting: | Thread |
| Material: | Stainless steel |
| Medium: | Air, Water, Aggressive media |
| Thread design: | Internal |
| Brightness DN: | 10 |
| Seals: | PTFE |
| Thread: | G 3/8" |
| Controls: | Manual |
| Design of fittings: | Direct, Two-piece |
