MDX stainless steel circular cylinder 25 mm

Code: 25/10MDX 25/25MDX 25/50MDX 25/80MDX 25/100MDX 25/125MDX 25/160MDX 25/200MDX 25/250MDX 25/320MDX 25/400MDX 25/500MDX Choose variant
4 851 Kč 4 969 Kč 5 198 Kč 5 426 Kč 5 575 Kč 5 768 Kč 6 021 Kč 6 320 Kč 6 711 Kč 7 331 Kč 8 099 Kč 8 840 Kč from 4 851 Kč –4 % –5 % –4 % –4 % –5 % –4 % –5 % –5 % –5 % –5 % –5 % –5 % up to –5 %
MDMX valec pneumaticky automatizace valve API vzduch tlak
4 851 Kč 4 969 Kč 5 198 Kč 5 426 Kč 5 575 Kč 5 768 Kč 6 021 Kč 6 320 Kč 6 711 Kč 7 331 Kč 8 099 Kč 8 840 Kč from 4 851 Kč –4 % –5 % –4 % –4 % –5 % –4 % –5 % –5 % –5 % –5 % –5 % –5 % up to –5 % 4 609 Kč / pcs 4 720 Kč / pcs 4 939 Kč / pcs 5 155 Kč / pcs 5 296 Kč / pcs 5 480 Kč / pcs 5 720 Kč / pcs 6 004 Kč / pcs 6 375 Kč / pcs 6 964 Kč / pcs 7 694 Kč / pcs 8 398 Kč / pcs from 4 609 Kč / pcs 3 809 Kč excl. VAT 3 901 Kč excl. VAT 4 082 Kč excl. VAT 4 260 Kč excl. VAT 4 377 Kč excl. VAT 4 529 Kč excl. VAT 4 727 Kč excl. VAT 4 962 Kč excl. VAT 5 269 Kč excl. VAT 5 755 Kč excl. VAT 6 359 Kč excl. VAT 6 940 Kč excl. VAT from 3 809 Kč excl. VAT
up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
Cylinder stroke
Chosen variant is not available. Reset selected parameters.
Delivery to:
11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 Choose variant
Delivery offer

Stainless steel pneumatic cylinder in stainless steel MDX with a diameter of 25 mm without magnet. Compliant with ISO 6432 dimensional standard. The cylinder is characterized by perfect tightness thanks to the pressing of the individual parts into each other. The cylinder stroke range can be supplied from 1 - 1000 mm. Made entirely of stainless steel.

Detailed information

Free shipping
Free shipping
For purchases over 5,000 CZK
We guarantee
We guarantee
Extended warranty and service
Discount voucher
Discount voucher
For every purchase
Return of goods within 30 days
Return of goods within 30 days
Completely at our expense

Product detailed description

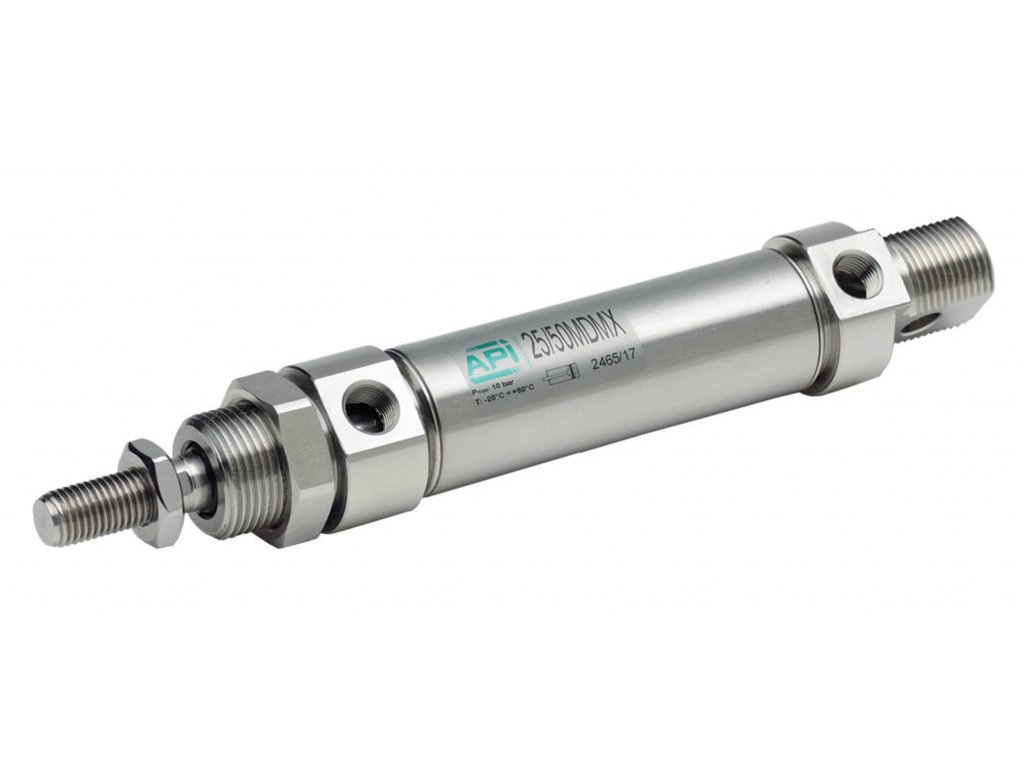

Stainless steel round pneumatic cylinder without magnet - 25/...MDX

  • diameter 25 mm
  • strokes 1 - 1000 mm
  • connection by 1/8" thread
  • pressure 10 bar
  • made of stainless steel

Nerezové kruhové pneumatické válce MDMX

Additional parameters

Category: MDMX and MDX stainless steel pneumatic cylinders
Version: Double acting cylinders
Pressure: 10 bars
Connecting: 1/8"
Magnet: without magnet
Piston rod material: Stainless steel AISI316
Piston material: Brass
Profile material: Stainless steel AISI304
Lid material: Stainless steel AISI316
Average: 25 mm
Temperature: -20/+80°C
Seals: PU
Cylinder thrust: 265 N
Cylinder type: Circular
Stroke selection: 1 - 1000 mm
Connecting rod thread: M10 x 1.25

Be the first who will post an article to this item!

Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:

Security check

Advanced Pneumatic Industries - Pneumatic components for automation technology

A wide range of products complements our extensive experience

One of the traditional suppliers of pneumatic components is API (Advanced Pneumatic Industries), which was founded in the late 1980s near Milan, Italy. More than three decades of experience have served API to improve the manufacture of all pneumatic components. At the turn of the new millennium, the company invested heavily in its own development and started its own production of valves and cylinders. Since 2007, the API catalogue contains the widest possible range in its field and the products soon travel all over the world. Today, the company offers production and assembly of valves, cylinders and mounting accessories not only in aluminium and steel, but also in stainless steel. In addition to the standard offer, API also offers the possibility of supplying solutions such as valve terminal assemblies or special ATEX designs.

api-provozovna
API

Quality certificate at a good price

For all the Italian company's product range, the customer can rely on it. These are products with good technical features, while the price tag is still within reasonable ranges. These words are confirmed by our hundreds of satisfied customers (mainly from industry) for whom API is the preferred brand. Beyond words, however, the reliability of the products is proven by meticulous quality systems such as ISO 9001, CISQ, ICIM or IQNet, whose certificates the products boast. The supply range currently includes pneumatic cylinders, grippers, swing drives, cylinder accessories and mounting brackets, solenoid, pneumatic, mechanical and manual valves, air treatment equipment, fittings, couplings and hoses.

The range of products offered by API is brought to you by our company Air Compressors here.
