    Stainless steel gauges 100 mm for measuring the pressure of the medium

    Nerezový manometr s průměrem ukazatele 100 mm pro měření tlaku média
    • Materials used : body and measuring member in AISI 316L stainless steel, sight glass
    • Stainless steel gauges with 100 mm indicator with 1/2" threaded bottom and rear connection
    • Pressure measurement of aggressive media with high demands on mechanical resistance for the food and chemical industry

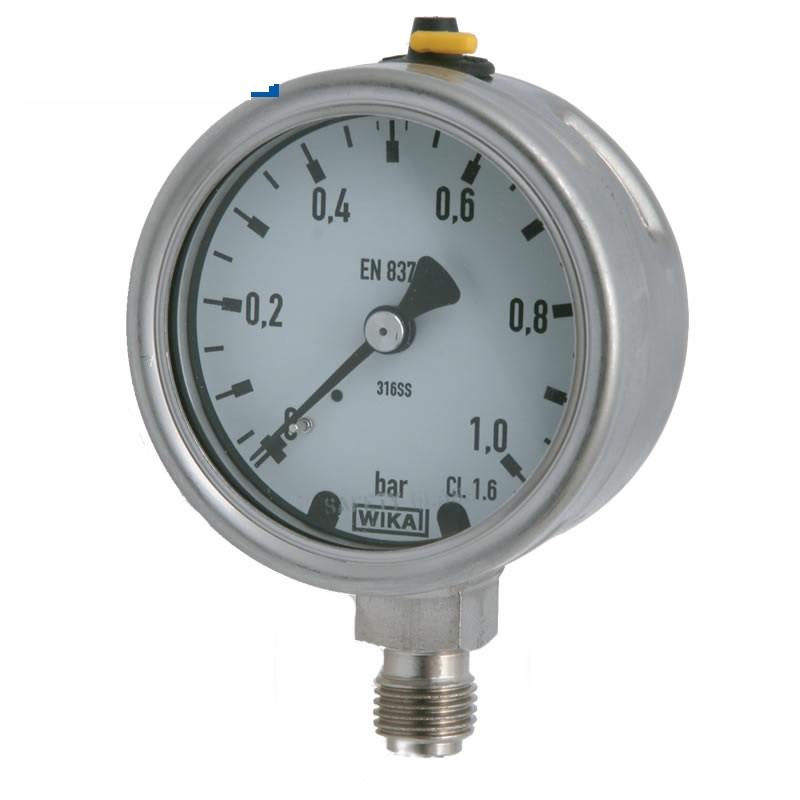

    Stainless steel side gauges - 100 mm indicator and 1/2" bottom connection
    Ordering
    number    		 Average
    mm    		 Pressure range
    bar    		 Connecting Thread
    "    		 Class
    accuracy
    %    		 Operating
    temperature
    °C    		 Nerezový stranový manometr s průměrem ukazatele 100 mm pro měření tlaku média
    MNS301 100 -1 to 0 lower 1/2" 1,0% -40/+60
    MNS302 100 -1 to 0.6 lower 1/2" 1,0% -40/+60
    MNS303 100 -1 to 1.5 lower 1/2" 1,0% -40/+60
    MNS304 100 -1 to 3 lower 1/2" 1,0% -40/+60
    MNS305 100 -1 to 5 lower 1/2" 1,0% -40/+60
    MNS306 100 -1 to 9 lower 1/2" 1,0% -40/+60
    MNS307 100 -1 to 15 lower 1/2" 1,0% -40/+60
    MNS308 100 0 to 0.6 lower 1/2" 1,0% -40/+60
    MNS309 100 0 to 1 lower 1/2" 1,0% -40/+60
    MNS310 100 0 to 1.6 lower 1/2" 1,0% -40/+60
    MNS311 100 0 to 2.5 lower 1/2" 1,0% -40/+60
    MNS312 100 0 to 4 lower 1/2" 1,0% -40/+60
    MNS313 100 0 to 6 lower 1/2" 1,0% -40/+60
    MNS314 100 0 to 10 lower 1/2" 1,0% -40/+60
    MNS315 100 0 to 16 lower 1/2" 1,0% -40/+60
    MNS316 100 0 to 25 lower 1/2" 1,0% -40/+60
    MNS317 100 0 to 40 lower 1/2" 1,0% -40/+60
    MNS318 100 0 to 60 lower 1/2" 1,0% -40/+60
    MNS319 100 0 to 100 lower 1/2" 1,0% -40/+60
    MNS320 100 0 to 160 lower 1/2" 1,0% -40/+60
    MNS321 100 0 to 250 lower 1/2" 1,0% -40/+60
    MNS322 100 0 to 400 lower 1/2" 1,0% -40/+60
    MNS323 100 0 to 600 lower 1/2" 1,0% -40/+60
    MNS324 100 0 to 1000 lower 1/2" 1,0% -40/+60

    Stainless steel rear gauges - 100 mm indicator and 1/2" bottom connection
    Nerezový zadní manometr s průměrem ukazatele 100 mm pro měření tlaku média Ordering
    number    		 Average
    indicators
    mm    		 Pressure range
    bar    		 Connecting Thread
    "    		 Class
    accuracy
    %    		 Operating
    temperature
    °C
    MNZ411 100 0 to 2.5 rear 1/2" 1,0% -40/+60
    MNZ412 100 0 to 4 rear 1/2" 1,0% -40/+60
    MNZ413 100 0 to 6 rear 1/2" 1,0% -40/+60
    MNZ414 100 0 to 10 rear 1/2" 1,0% -40/+60
    MNZ415 100 0 to 16 rear 1/2" 1,0% -40/+60
    MNZ416 100 0 to 25 rear 1/2" 1,0% -40/+60
    MNZ417 100 0 to 40 rear 1/2" 1,0% -40/+60
    MNZ418 100 0 to 60 rear 1/2" 1,0% -40/+60
