    Home / Air conditioning / Air dryers; air moisture removal / Spare membrane for MADRY-18M dryer

    Spare membrane for MADRY-18M dryer

    Code: MADRY-18M
    Not rated
    Brand: OMEGA AIR
    FREEFREE 60 795 Kč –2 %
    madry nahradni membrana susicka vzduchu membranova kondenzat kompresor 1
    60 795 Kč –2 % 59 579 Kč / pcs 49 239 Kč excl. VAT
    up to 14 days
    Delivery to:
    17.03.2025
    Delivery offer

    Replacement diaphragm for MADRY-18M compressed air dryer from compressor working on the principle of water separation by means of hollow fibre diaphragm.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Related products

    Membrane air dryer MADRY-18
    FREEFREE 65 882 Kč –2 %
    Membrane air dryer MADRY-18
    up to 14 days
    53 360 Kč excl. VAT
    64 565 Kč

    MADRY-18 membrane dryer with compressed air flow up to 18 m³/hr up to 12 bar. Including 2 filters through the dryer and filter cartridge clogging indication. Designed to supply...

    Code: MADRY-18
    Filter insert for AFS-170 microfilter
    Sellout Original parts
    4 378 Kč –2 %
    Filter insert for AFS-170 microfilter
    Stock (3 pcs)
    3 545 Kč excl. VAT
    4 290 Kč

    The AFS filter insert is used to remove the largest mechanical impurities from compressed air up to 0.01 um according to ISO 8573-1 class 1. Easy replacement thanks to removable...

    Code: AFS-170V
    Filter insert for dust filter AFR-20
    Sellout Original parts
    1 115 Kč –1 %
    Filter insert for dust filter AFR-20
    Stock (1 pcs)
    903 Kč excl. VAT
    1 093 Kč

    AFR dust filters according to ISO 8573.1. Filtration capacity 1 um. AFR filters are designed for systems with high dust content, typically used as an outlet filter on adsorption...

    Code: AFR-20V
    Filter insert for pre-filter AFM-60
    Sellout Original parts
    1 982 Kč –2 %
    Filter insert for pre-filter AFM-60
    Stock (1 pcs)
    1 605 Kč excl. VAT
    1 942 Kč

    AFM prefilters according to ISO 8573.1. Filtration capacity 0,1 um, residual oil 0,1 mg/m3. AFM filters are used to remove coarse mechanical impurities from compressed air and...

    Code: AFM-60V
    Show all related products

    Product detailed description

    Replacement membrane for compressed air dryer - MADRY-18M

    • dryers working on the principle of water separation by means of a hollow fibre membrane
    • designed for highly efficient removal of residual water vapour from compressed air
    • the dew point value depends on the input conditions and the flow rate
    • 0.1 μm pre-filter and 0.01 μm microfilter with float skimmer included
    • operating temperature +1.5/+60 °C, working pressure 0-12 bar
    • recommended maintenance: check differential pressure once a month, change activated carbon cartridge once a year
    • designed for the supply of compressed air with low dew point at low flow rates
    • important note: Membrane dryers require 10-30% of the supplied air for operation, depending on the pressure dew point

    Membránové sušičky Princip sušení

    Membránové sušičky M-DRY stlačeného vzduchu od kompresoru

    Adsorpční sušičky M-DRY vzduchu kompresorů

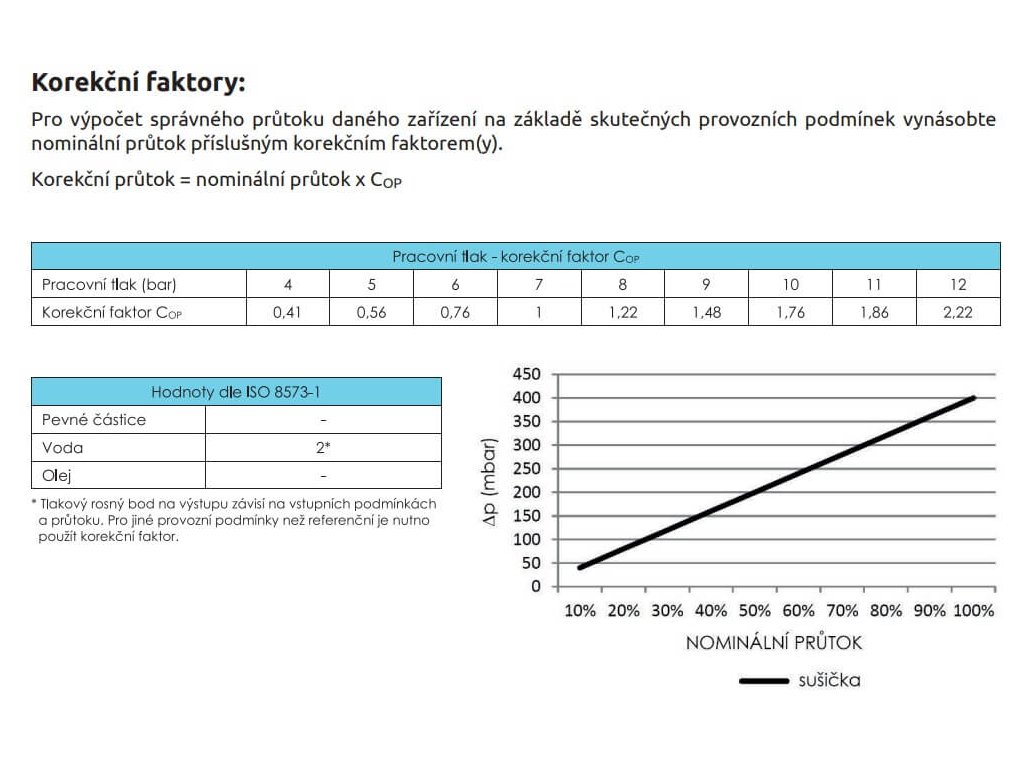

    Korekční faktory adsorpční sušičky M-DRY vzduchu kompresorů

    Additional parameters

    Category: Compressed Air Moisture Removal Air Dryers, Sušičky vzduchu - typ membránové sušičky
    Dryer type: Membrane dryer
