Mobile compressor L20N-1.5-50CM příkon 1,5 kW, sací výkon 220 l/min, tlak 10 bar, vzdušník 50 l, napětí 230/50 V/Hz
Code: L20N-1-5-50CMRelated products
Product detailed description

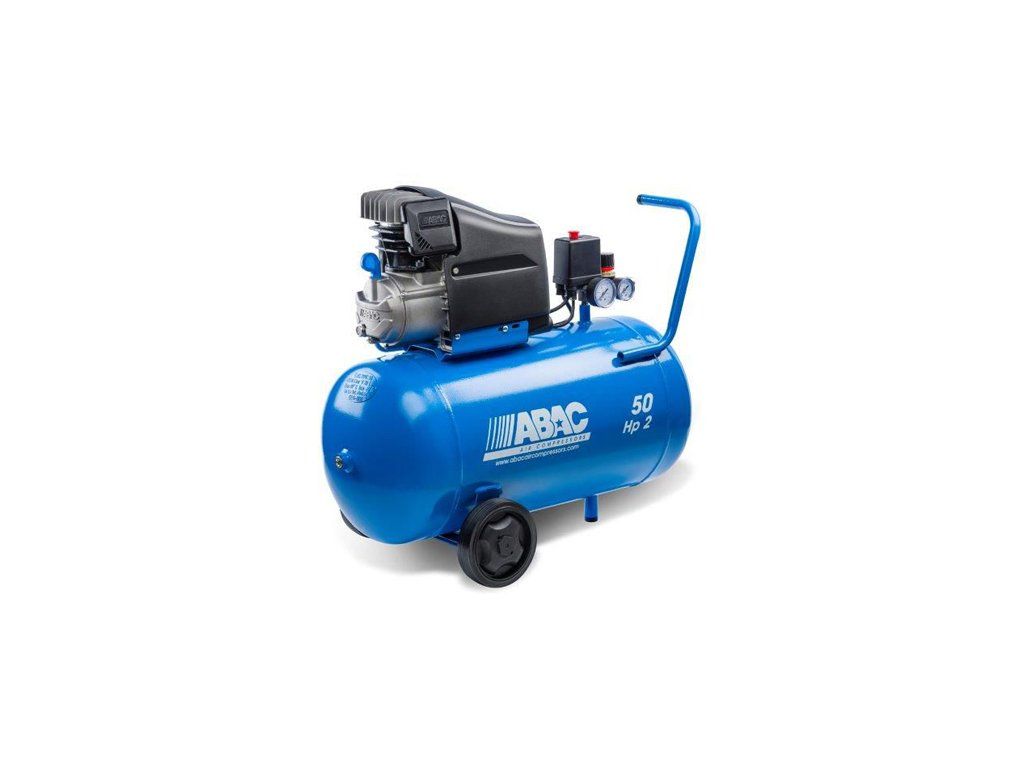

Mobile piston compressor L20N-1,5-50CM
The Line series compressor in oil-lubricated design with direct connection of the electric motor to the L20N compressor unit with a suction capacity of 220 l/min is designed for smaller professional applications. The compressor has the following standard equipment:
- automatic operation control by pressure switch
- output via standard DN7,2 quick coupling
- pressure regulator included in delivery
- two pressure gauges for reading the outlet pressure and the pressure in the air tank
- 50 litre air receiver with condensate release valve
- handle and wheels for easy handling of the machine
Easy installation and maintenance thanks to service videos available via the AIRTUBE app after downloading the QR code from the pressure vessel.
We provide a standard 2-year warranty on the compressor and a 10-year warranty on the rusting of the pressure vessel.
Additional parameters
| Category: | Professional reciprocating and screw compressors |
|---|---|
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 222 l/min |
| Displacement: | 121 l/min |
| Pressure vessel volume: | 50 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN7.2 |
| Motor power: | 1.5 kW |
| Mains voltage: | 230/50 V/Hz |
| Speeds: | 2850 rpm |
| Number of cylinders: | 1 |
| Number of grades: | 1 degree |
| Lubrication: | Oily |
| Noise: | 95 dB - Lwa, 75 dB - Lwp(4m) |
| Dimensions: | 770 x 430 x 660 mm |
| Weight: | 33 kg |
| Accessories: | Pressure regulator, Wheels, Handle, Quick coupler |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | Direct |
| Air dryer: | No |
| Retrieved from: | Semi-professional |
| Development: | Mobile |
Instalace kompresoru
Odpouštění kondenzátu
Servisní KIT kompresoru a výměna
Údržba sacího filtru
Uvedení do provozu
Výměna oleje u kompresoru
Výměna pístu a těsnění
Výměna sacího filtru a údržba zpětného ventilu
