Mobile compressor A39-2,2-90CT příkon 2,2 kW, sací výkon 393 l/min, tlak 10 bar, vzdušník 90 l, napětí 400/50 V/Hz
Code: A39-2-2-90CTRelated products
Product detailed description
Professional reciprocating compressor ABAC A39-2,2-90CT
Pro Line single stage compressor in oil lubricated design for many professional applications. Connection of the electric motor to the A39 compressor unit via V-belts with a suction capacity of 393 l/min and the following standard equipment:

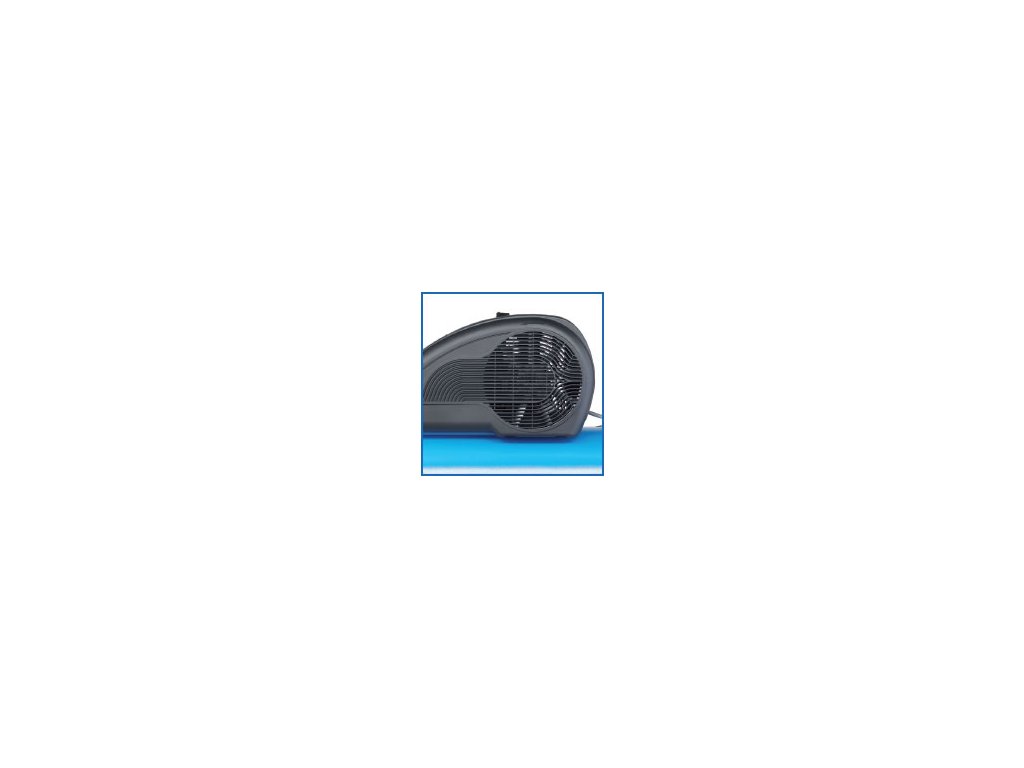

- unique belt gear cover with aerodynamically shaped grooves reduces the outlet air temperature by up to +35°C and ensures extreme increase in compressor lifetime

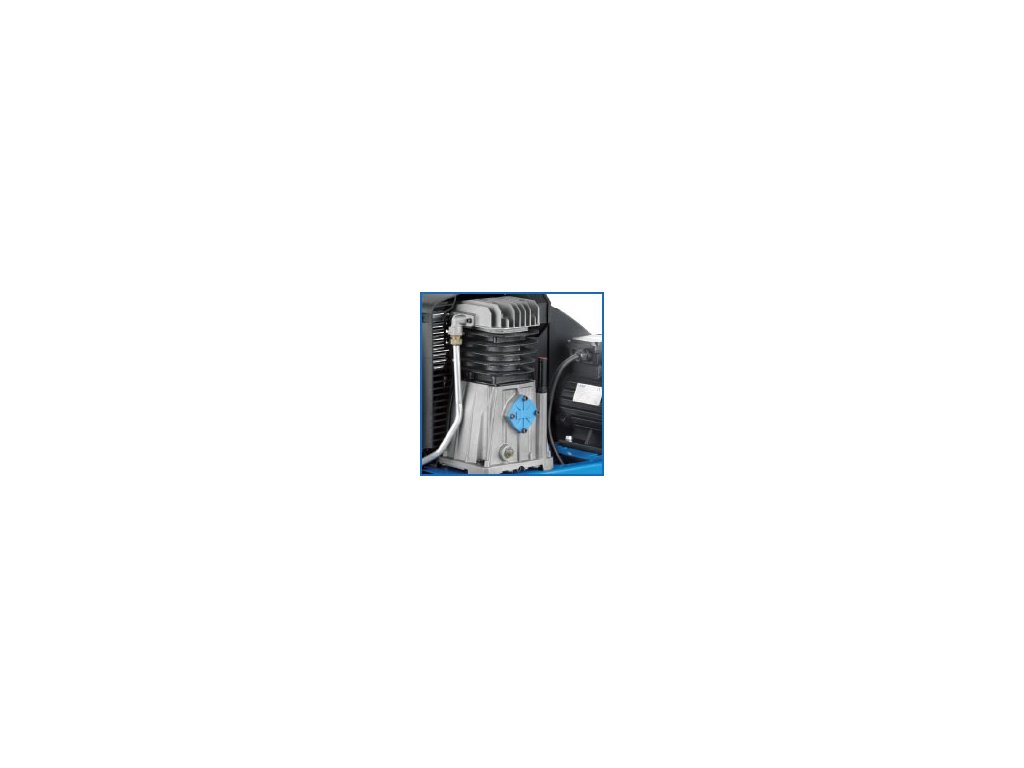

- oil reservoir equipped with oil gauge for easy reading of oil level
- automatic operation control by pressure switch
- electric motor equipped with temperature protection
- output via standard DN7,2 quick coupling
- pressure regulator included in delivery
- two pressure gauges for reading the outlet pressure and the pressure in the air tank

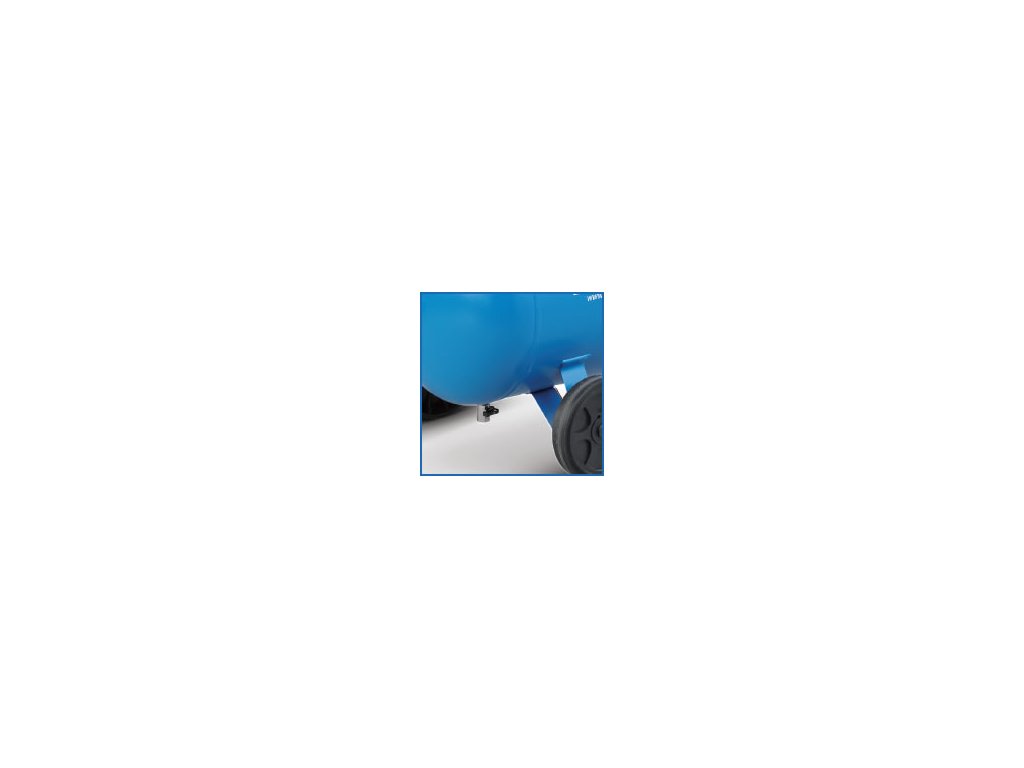

- 90-litre aerator with ball valve for convenient condensate drainage
- front swivel wheel ensures good handling
Easy installation and maintenance thanks to service videos available via the AIRTUBE app after downloading the QR code from the pressure vessel.
We provide a standard warranty period of 2 years with the possibility of extending it to 3 years and a 10-year warranty on the rusting of the pressure vessel.
Additional parameters
Category: | Piston portable compressors A39 |
---|---|
Compressor type: | Piston compressor |
Pressure: | 10 bars |
Suction power: | 393 l/min |
Displacement: | 283 l/min |
Pressure vessel volume: | 90 L |
Design of pressure vessel: | Lying down |
Connecting: | Quick coupling DN 7.2 |
Motor power: | 2.2 kW |
Mains voltage: | 400/50 V/Hz |
Speeds: | 1050 rpm |
Number of cylinders: | 2 |
Number of grades: | 1 degree |
Lubrication: | Oily |
Noise: | 93 dB - Lwa, 73 dB - Lwp(4m) |
Dimensions: | 1 180 x 460 x 930 mm |
Weight: | 72 kg |
Accessories: | Pressure regulator, Wheels, Handle, Quick coupler |
Engine: | Electric |
Soundproofed: | No |
Drive: | V-belts |
Air dryer: | No |
Retrieved from: | Semi-professional |
Development: | Mobile |
