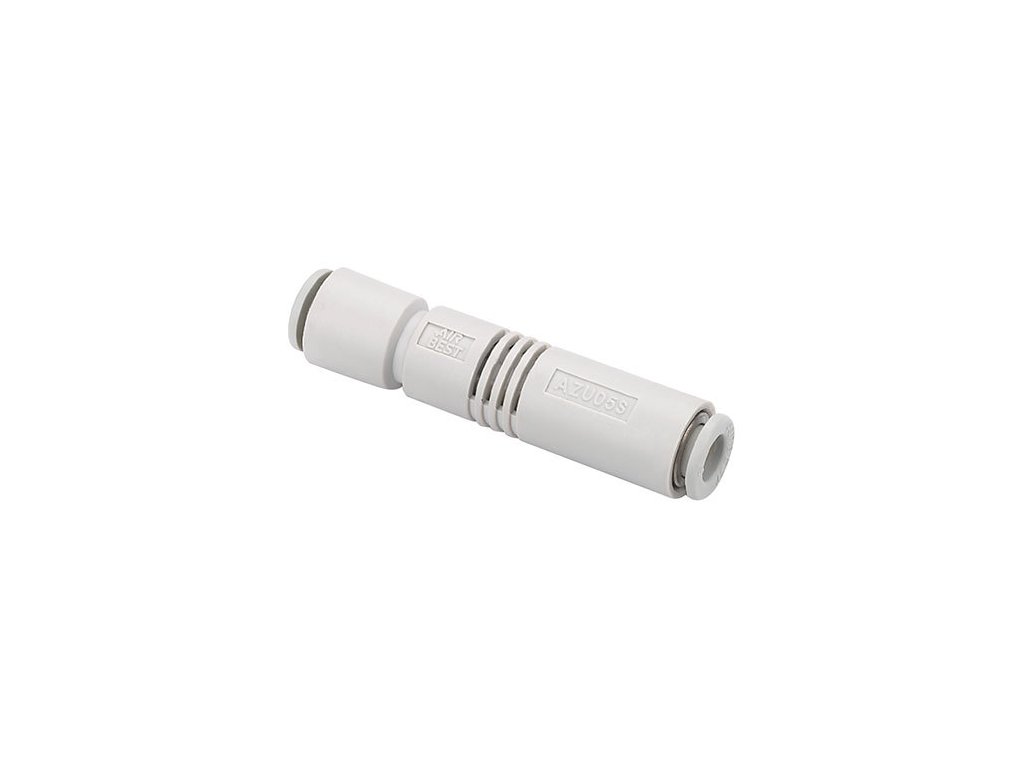

Miniature ejector AZH -85 kPa with 0.7 mm nozzle

Code: AZU07S
476 Kč –5 %
Miniature ejector AZH -85 kPa with 0.7 mm nozzle
476 Kč –5 % 452 Kč / pcs 374 Kč excl. VAT
Stock (37 pcs)
Delivery to:
03.04.2025
Delivery offer

AZH miniature ejector with socket couplings with integrated blow-off. Nozzle diameter 0.7 mm and maximum vacuum 85 kPa. Designed to create a vacuum in small isolated systems.

Detailed information

Free shipping
Free shipping
For purchases over 5,000 CZK
We guarantee
We guarantee
Extended warranty and service
Discount voucher
Discount voucher
For every purchase
Return of goods within 30 days
Return of goods within 30 days
Completely at our expense

Product detailed description

Ejector AZU07S

  • ejectors for vacuum generation for miniature isolated vacuum systems
  • connection via integrated socket couplings, light weight and miniature dimensions
  • suitable for copper and fluoride applications
  • high vacuum variants up to -85 kPa and high flow variants with a vacuum of -48 kPa
  • operating air pressure 4.5 bar, maximum pressure 7 bar, operating temperature +5 to +60 °C

Additional parameters

Category: Vacuum ejectors type AZU
Max. vacuum: -85 kPa
Nozzle diameter: 0.7 mm
Vacuum flow: 12 l/min
Exhaust connection: integrated silencer
Vacuum connection: 6 mm
Air connection: 6 mm
Spotřeba vzduch: 19 l/min
Air pressure: 4.5 bar

Be the first who will post an article to this item!

Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:

Security check

Výrobky a produkty společnosti AirBest pro Vakuum techniku a automatizaci

Airbest develops and innovates

The main production item of the Chinese company Airbest is components and products from the field of vacuum technology. This company combines technological research and subsequent development of components, mainly applied in the automation industry and industrial robotics. Within the production process, Airbest tries to pay particular attention to customer requirements, while not forgetting the most modern technological processes, within which it prioritizes safety, efficiency and environmental friendliness. The company was founded in 2006 and is gaining more and more popularity on the market, as evidenced by several dozen honorary certificatesthat Airbest is proud of on its official website.

German quality and Chinese economy

The biggest advantage of products from the company Airbest is their high compatibility and usability as replacement parts for products from other brands, such as PIAB, SMC, PARKER, SCHMALZ and other manufacturers of vacuum technology. At the same time, the components do not lose their quality, mainly thanks to cooperation with the German manufacturer of linear drives MEDAN GmbH. Combined with China's low-cost manufacturing capability, these are products with a very affordable price tag. If required, a detailed catalogue with drawings and data is available.

Výrobky a produkty společnosti AirBest pro Vakuum techniku a automatizaci druhá část

Výrobky a produkty společnosti AirBest pro Vakuum techniku a automatizaci

The company's program Airbest consists of the following basic product groups:

  • ejectors and vacuum pumps
  • vacuum filtration equipment
  • suction cups
  • screw fitting for suction cups
  • vacuum valves and vacuum switches
