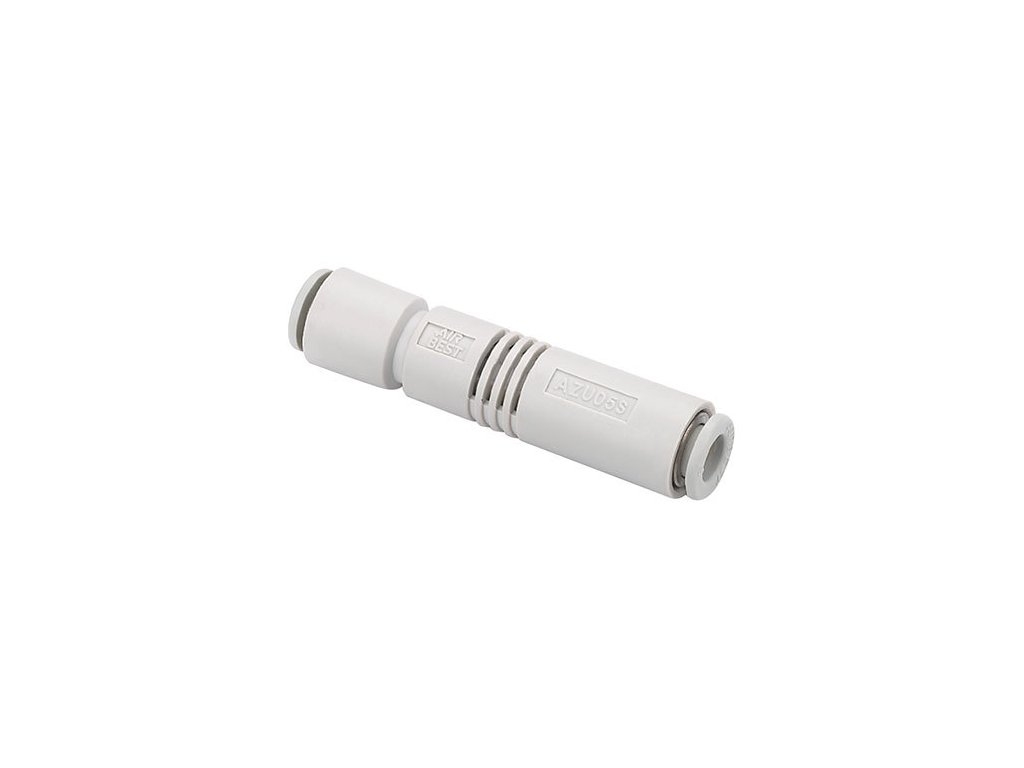

Miniature ejector AZH -48kPa with 0.7 mm nozzle

Code: AZU07L
448 Kč –5 %
Miniature ejector AZH -48kPa with 0.7 mm nozzle
448 Kč –5 % 425 Kč / pcs 351 Kč excl. VAT
Stock (17 pcs)
Delivery to:
26.11.2024
AZH miniature ejector with socket couplings with integrated blow-off. Nozzle diameter 0,7 mm and maximum vacuum 48 -kPa. Designed to create a vacuum in small isolated systems.

Detailed information

Product detailed description

Ejector AZU07L

  • ejectors for vacuum generation for miniature isolated vacuum systems
  • connection via integrated socket couplings, light weight and miniature dimensions
  • suitable for copper and fluoride applications
  • high vacuum variants up to -85 kPa and high flow variants with a vacuum of -48 kPa
  • operating air pressure 4.5 bar, maximum pressure 7 bar, operating temperature +5 to +60 °C

Additional parameters

Category: AZU type ejectors
Max. vacuum: -48 kPa
Nozzle diameter: 0.7 mm
Vacuum flow: 21 l/min
Exhaust connection: integrated silencer
Vacuum connection: 6 mm
Air connection: 6 mm
Spotřeba vzduch: 19 l/min
Air pressure: 4.5 bar

Be the first who will post an article to this item!

Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:
airbest-provozovna

Airbest Develops and Innovates

The main production item of the Chinese company Airbest consists of components and products in the field of vacuum technology. This enterprise combines technological research and subsequent development of components, applied mainly in the automation industry and industrial robotics. In its production process, Airbest strives to focus primarily on customer requirements while not forgetting the most modern technological procedures, prioritizing safety, efficiency, and environmental friendliness. The company was established in 2006 and is gaining increasing recognition in the market, as evidenced by several honorary certificates displayed on Airbest's official website.

German Quality and Chinese Affordability

The greatest advantage of Airbest products is their high compatibility and usability as replacement parts for products of other brands, such as PIAB, SMC, PARKER, SCHMALZ, and other vacuum technology manufacturers. The components maintain their quality, largely due to the collaboration with the German manufacturer of linear drives, MEDAN GmbH. Combined with China's ability for low-cost production, these products come with a very reasonable price tag. A detailed catalog with drawings and data is available if needed.

Airbest - továrna

The Airbest company program consists of these basic product groups:

  • ejectors and vacuum pumps
  • vacuum filtration devices
  • suction cups
  • fittings for suction cups
  • vacuum valves and vacuum switches
