Mini vacuum pump 37 A

Code: ABM5-A
1 666 Kč –4 %
Mini vacuum pump 37 A
1 666 Kč –4 % 1 583 Kč / pcs 1 308 Kč excl. VAT
Stock (20 pcs)
Delivery to:
25.12.2024
The ABM miniature vacuum pump can develop a vacuum of up to 85 -kPa. Thanks to its small size, it allows mounting directly on the device. Maximum flow rate 37 l/min. Made of plastic, NBR sealing.

Detailed information

Product detailed description

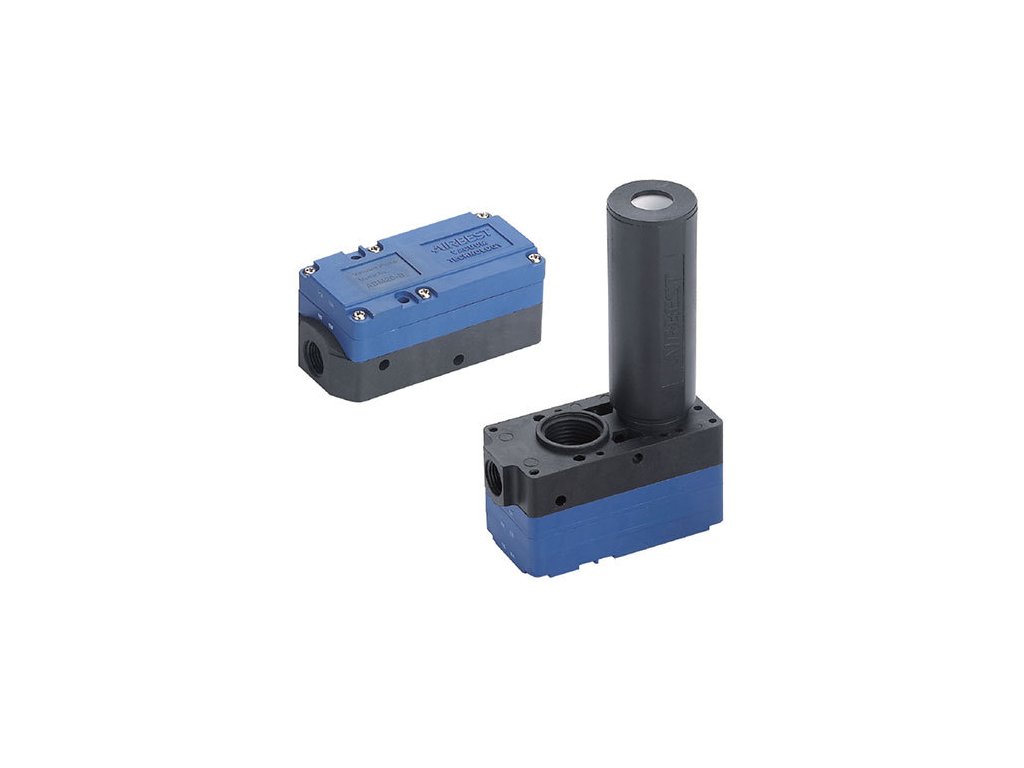

Vacuum pump ABM5-A

  • allows direct mounting of suction cups and vacuum consuming devices
  • uses a multi-stage ejector principle
  • made of plastic, NBR sealing, viton or EPDM on request
  • maximum vacuum level 85 -kPa, maximum vacuum flow 37 l/min.
  • operating temperature -20/+80°C, noise level 50-68 dB

Additional parameters

Category: ABM miniature vacuum pumps
Weight: 33 g
Max. vacuum: -85 kPa
Vacuum flow: 37 l/min
Exhaust connection: integrated silencer
Vacuum connection: 1/8"
Air connection: 6 mm
Spotřeba vzduch: 12 - 20 l/min

Be the first who will post an article to this item!

Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:
airbest-provozovna

Airbest Develops and Innovates

The main production item of the Chinese company Airbest consists of components and products in the field of vacuum technology. This enterprise combines technological research and subsequent development of components, applied mainly in the automation industry and industrial robotics. In its production process, Airbest strives to focus primarily on customer requirements while not forgetting the most modern technological procedures, prioritizing safety, efficiency, and environmental friendliness. The company was established in 2006 and is gaining increasing recognition in the market, as evidenced by several honorary certificates displayed on Airbest's official website.

German Quality and Chinese Affordability

The greatest advantage of Airbest products is their high compatibility and usability as replacement parts for products of other brands, such as PIAB, SMC, PARKER, SCHMALZ, and other vacuum technology manufacturers. The components maintain their quality, largely due to the collaboration with the German manufacturer of linear drives, MEDAN GmbH. Combined with China's ability for low-cost production, these products come with a very reasonable price tag. A detailed catalog with drawings and data is available if needed.

Airbest - továrna

The Airbest company program consists of these basic product groups:

  • ejectors and vacuum pumps
  • vacuum filtration devices
  • suction cups
  • fittings for suction cups
  • vacuum valves and vacuum switches
