    AAFS compressed air microfilters

    Mikrofiltry stlačeného vzduchu AAFS
    • coalescing microfilters 0.01 µm
    • use as a fine filter for solid dirt, water and oil
    • filtration according to ISO 8573-1 class 1-x-1
    • filter material: borosilicate microfibers
    • condensate drainage from the vessel by float drain AOK16B
    • operating temperature +1.5 to +65 °C
    • working pressure 16 bar
    • reference flow conditions: ambient temperature +20 °C, inlet air temperature +35 °C, working pressure 7 bar; for other conditions a correction factor must be used for the calculation - please contact us
    • A condition of the application is the preassignment of the AAFM filter

    Microfiltration of compressed air with AAFS filters - 0,01 um
    Ordering
    number    		 Flow Pressure Thread Dimensions mm Weight Filtration
    liner
    l/min m³/h bar " and b c d kg
    AAFS-25 417 25 16 1/4" 145 73 18 50 0,42 AAFS-25V
    AAFS-30 500 30 16 3/8" 145 73 18 50 0,42
    AAFS-35 583 35 16 1/4" 189 88 21 60 0,72 AAFS-35V
    AAFS-60 1 000 60 16 3/8" 189 88 21 60 0,60
    AAFS-78 1 300 78 16 1/2" 189 88 21 80 0,60 AAFS-78V
    AAFS-120 2 000 120 16 3/4" 257 88 21 150 0,70 AAFS-120V
    AAFS-198 3 300 198 16 1" 261 125 37 160 1,20 AAFS-198V
    AAFS-335 5 583 335 16 1" 361 125 37 250 1,60 AAFS-335V
    AAFS-510 8 500 510 16 1 1/2" 461 125 37 350 1,90 AAFS-510V
    AAFS-780 13 000 780 16 1 1/2" 641 125 37 530 2,60 AAFS-780V
    AAFS-1000 16 667 1 000 16 2" 696 164 50 520 5,70 AAFS-1000V
    AAFS-1500 25 000 1 500 16 2" 943 164 50 770 7,60 AAFS-1500V
    AAFS-1680 28 000 1 680 16 2 1/2" 943 164 50 770 7,30
    AAFS-2160 36 000 2 160 16 3" 801 242 60 630 16,70 AAFS-2160V
    AAFS-2760 46 000 2 760 16 3" 998 242 60 780 21,30 AAFS-2760V
    Reference flow conditions: temperature +20 °C, working pressure 7 bar; for other conditions a correction factor must be used for the calculation.

    Correction factor - Working pressure
    Working pressure bar 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
    Correction factor 0,38 0,50 0,63 0,75 0,88 1,00 1,13 1,25 1,38 1,50 1,63 1,75 1,88 2,00 2,13

    #ShowMore#

    Filtrační stupně stlačeného vzduchu ISO 8573-1

    Jednotlivé filtrační vložky filtrů stlačeného vzduchu AAF OMEGA AIR

    Schéma filtru stlačeného vzduchu od kompresoru AAF

    Bestsellers

    aaf t
    4 459 Kč –2 %
    AAFS microfilter - 1/2" - 1,300 l/min
    Stock (7 pcs)
    Code: AAFS-78
    Was: 4 459 Kč  (–2 %)
    4 370 Kč
    (3 612 Kč excl. VAT)
    vlozka aafs
    795 Kč –2 %

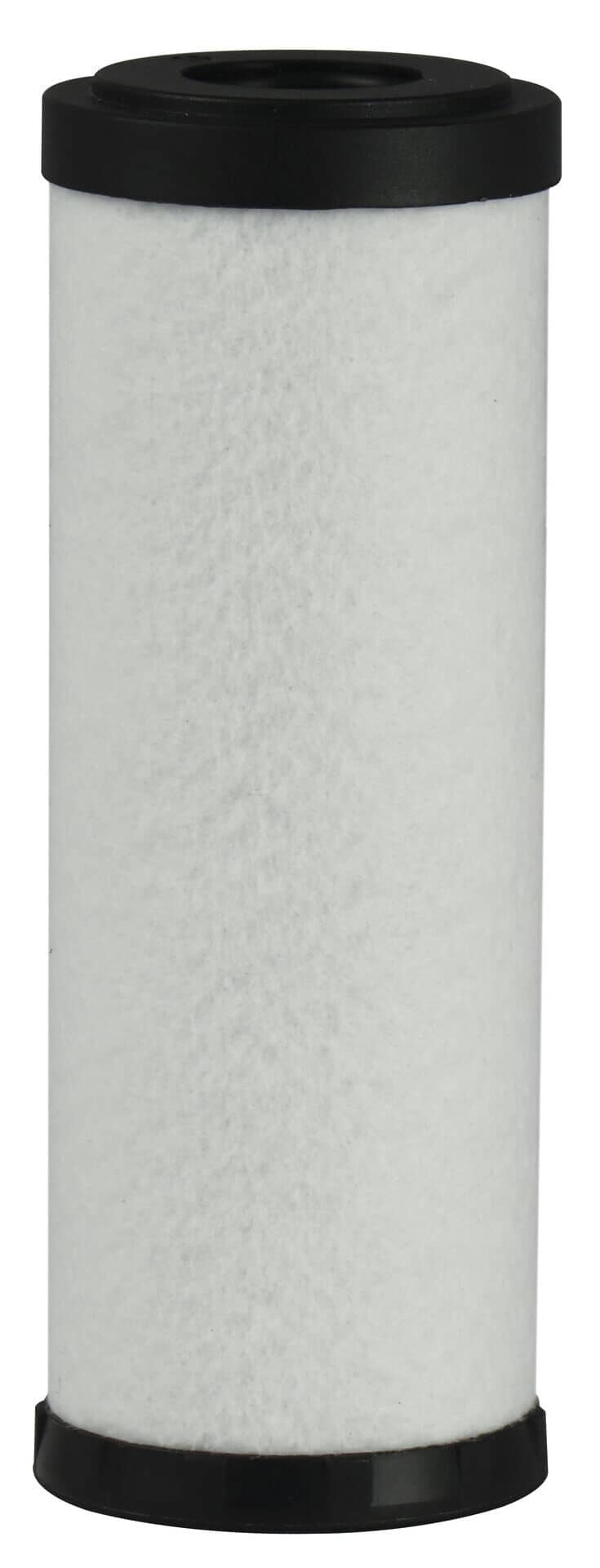

    Replacement filter insert for microfilter - AAFS-25V
