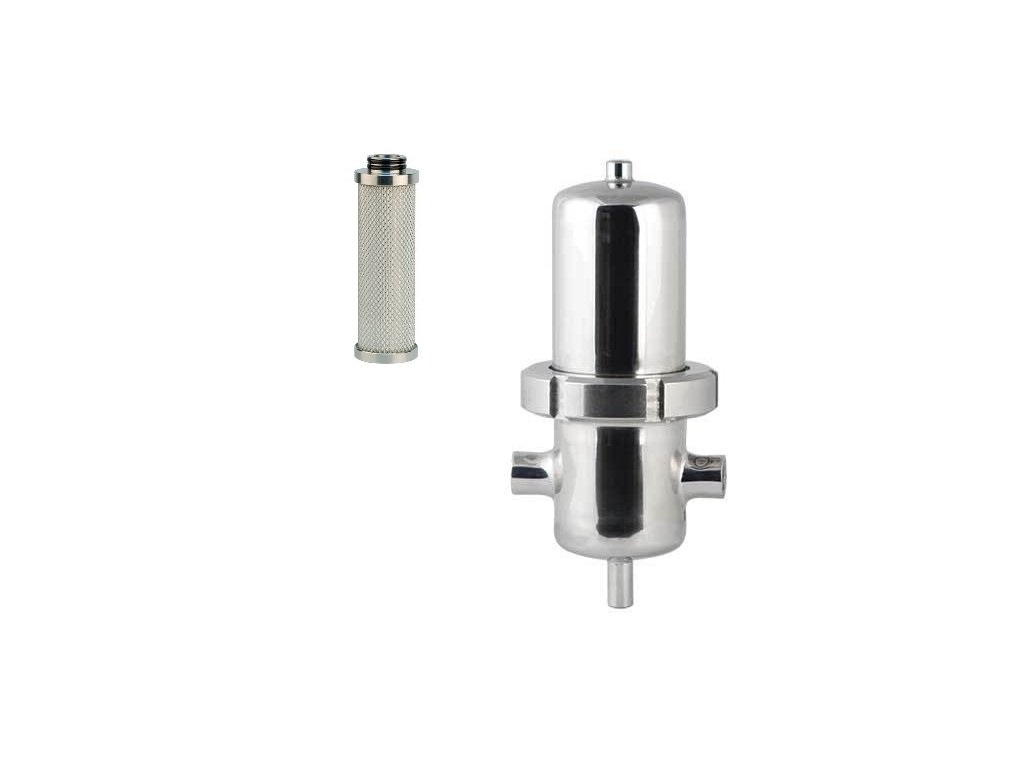

    Microfilter SPFM 3"

    Code: SPFM-200
    Not rated
    Brand: OMEGA AIR
    115 487 Kč –2 %
    Microfilter SPFM 3"
    115 487 Kč –2 % 113 177 Kč / pcs 93 535 Kč excl. VAT
    up to 14 days
    Delivery to:
    13.01.2025
    SPFM microfilter with G3" connection thread for high efficiency filtration of compressed air, process air and industrial gases. Filtration capacity up to 0.01 um. Maximum working pressure up to 12 bar, maximum flow up to 40,000 l/min. Made of stainless steel 1.4301.

    Detailed information

    Product detailed description

    Complete sterile microfilter 0,1 µm - SPFM-200

    • highly efficient filtration of compressed air, process air and industrial gases
    • body made of stainless steel 1.4301 with polished surface, connection - internal pipe threads
    • working temperature up to +150 °C, maximum working pressure according to size 12/16 bar
    • scope of delivery - filter body and filter cartridge
    • reference flow conditions: temperature +20 °C, working pressure 7 bar; for other conditions a correction factor must be used for calculation - please contact us
    • note: for SPF filters the filter inserts from the PF series are intended

    Additional parameters

    Category: Sterile SPFM filters up to 16 bar
    Version: Prefilter
    Pressure: 12 bar
    Connecting: 3"
    Dimensions: 1 030 x 224 x 140 mm
    Filtration: 0.01 µm
    Filter insert: PFM-200V
    Material: Stainless steel
    Working temperature: 0 / 150 °C
    Flow: 40,000 l/min
    Residual oil: <0,1 mg/m³
