    Microfilter IHP4S G3/4"

    Code: IHP4S-010
    Not rated
    Brand: OMEGA AIR
    115 355 Kč –2 %
    Microfilter IHP4S G3/4"
    115 355 Kč –2 % 113 048 Kč / pcs 93 428 Kč excl. VAT
    up to 14 days
    Delivery to:
    17.03.2025
    Delivery offer

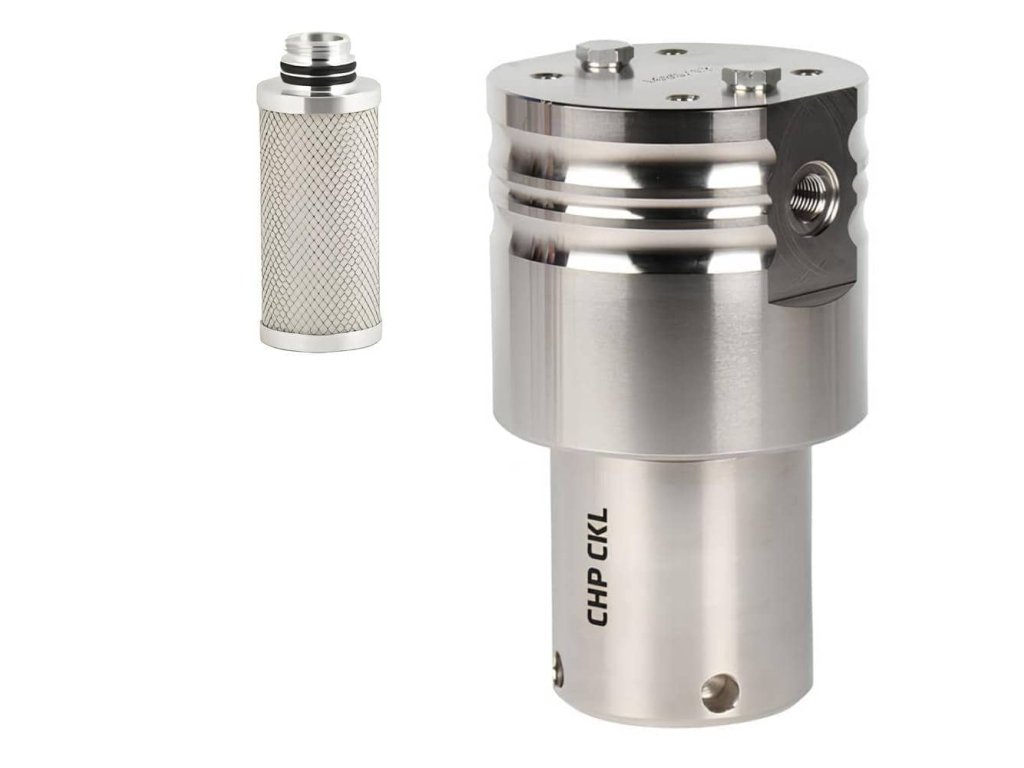

    The IHP4S microfilter with G3/4" connection thread effectively removes solid impurities, oil, odours and other impurities from compressed air up to 0.01 um. Maximum working pressure is 400 bar, maximum flow up to 3250 l/min. Made of stainless steel 1.4301. Automatic condensate drain must be ordered separately.
    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Related products

    ihpm v vlozka nahradni chp filtr omega air vzduch tlak kompresor air pressure cyklon
    Original parts
    6 107 Kč –2 %
    Filter insert for IHPS filter G3/4"
    up to 14 days
    4 946 Kč excl. VAT
    5 985 Kč

    The filter insert IHPS-010V is used to remove the largest mechanical impurities from compressed air. Filtration capacity up to 0.01 um. Operating temperature from +1.5 to +65 °C.

    Code: IHPS-010V

    Product detailed description

    No product's description available

    Additional parameters

    Category: Air filters IHP4S
    Version: Microfilter
    Pressure: 400 bar
    Connecting: 3/4"
    Dimensions: 210 x 105 x 85 mm
    Filtration: 0.01 µm
    Filter insert: IHPS-010V
    Material: Stainless steel
    Condensate discharge: Without release
    Working temperature: +1.5 / +65°C
    Flow: 3,250 l/min
    Residual oil: <0,01 mg/m³
    Quality class - oils: 1
    Quality class - solid impurities: 1

    Filtrace Omega Air - řada IHP

    Be the first who will post an article to this item!

    Do not fill out this field:

    Be the first who will post an article to this item!

    Do not fill out this field:

    Security check

    Alfa and Omega from Slovenia

    In the Slovenian capital, Ljubljana, there is a company specialized in compressed air treatment, production of industrial filters and filter inserts, separators or special membrane dryers and other products. Omega Air was founded in 1988 as a family business and soon secured a place in the industry. Over the years, Omega Air's workforce has also grown with increasing production and today the company employs more than 250 people.

    		 stažený soubor
    hannover

    Omega products are used everywhere

    A wide range of applications is typical for Omega Air products. Its products are used in heavy industry as well as by private entities. Slovenia's footprint is thus noticeable in industrial sectors such as electrical, gastronomy, pharmaceuticals, moto and also in the chemical-industrial sector. However, the company's main product is special filters, which are exported all over the world.

    No greenhorn in the industry

    Omega Air also boasts several proprietary innovations and patents that originate in the development department. The company has also been awarded several times for its innovative solutions at the International Engineering Fair itself, which is traditionally held in Hannover, Germany.

    The Omega Air product range is brought to you by our air compressors company below.

    What Omega Air produces:

    • special industrial filters
    • filter inserts
    • electronic condensate drains
    • separators
    • dryers (absorption, membrane)
    • activated carbon columns
