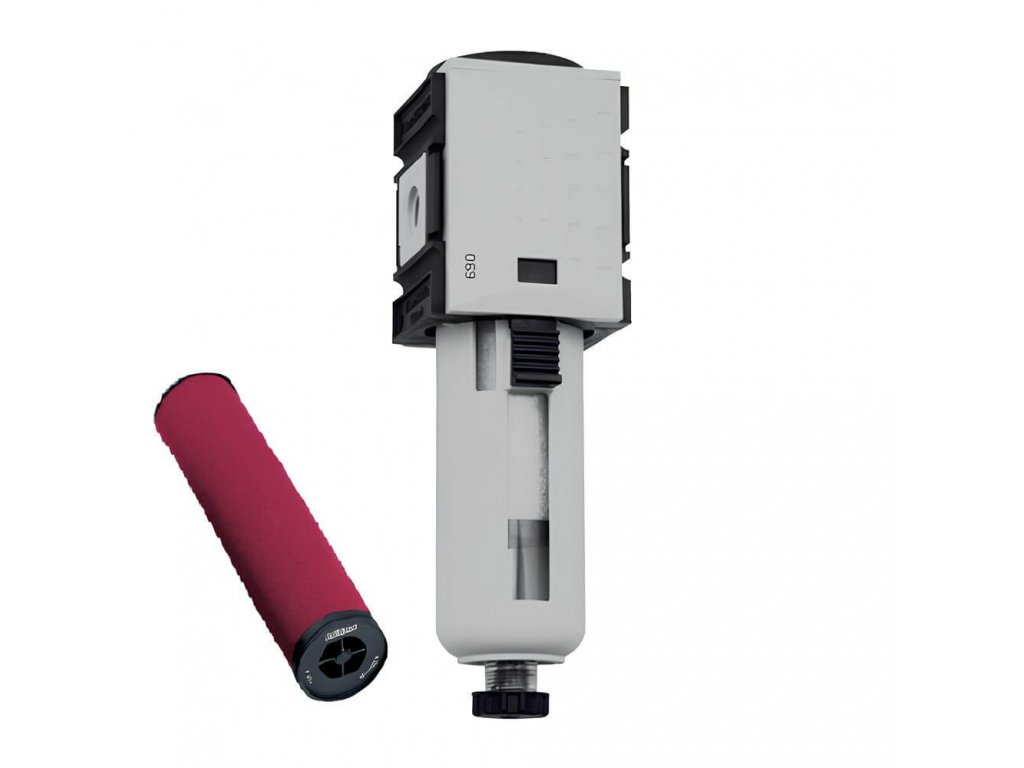

    Microfilter Futura 1" - 1,400 l/min

    Code: FX10-F
    Not rated
    6 590 Kč –4 %
    Microfilter Futura 1" - 1,400 l/min
    6 590 Kč –4 % 6 261 Kč / pcs 5 174 Kč excl. VAT
    up to 14 days
    Delivery to:
    16.05.2025
    Delivery offer

    0.01 um compressed air microfilter with 1" connection for compressed air and neutral gases with a flow rate of 1,400 l/min. Design according to ATEX II 2G2D. Maximum inlet pressure 1,5 - 16 Bar. Operating temperature : -10°C to +50°C. Semi-automatic condensate discharge.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Related products

    DDA B indikator filtru kondenzat
    Original parts
    785 Kč –4 %
    Differential indicator clogging Futura
    up to 14 days
    617 Kč excl. VAT
    746 Kč

    Differential indicator for filter cartridge clogging for Futura treatment units. Easy installation with indicators based on differential pressure.

    Code: DDA-B
    DDA M indikator filtru kondenzat
    Original parts
    3 657 Kč –5 %
    Futura differential clogging pressure gauge
    up to 14 days
    2 871 Kč excl. VAT
    3 474 Kč

    Differential pressure gauge to indicate filter cartridge clogging in FUTURA compressed air treatment units. Keep track of the need to change the filter cartridge and keep the...

    Code: DDA-M
    kp
    Original parts
    197 Kč –5 %
    FUTURA standard connection set size 4
    up to 14 days
    155 Kč excl. VAT
    187 Kč

    Standard connection set for FUTURA size 4 air handling units without wall bracket. The kit can be used to connect any 2 modules of a given size together without the need for...

    Code: KP4F
    kpw
    Original parts
    276 Kč –5 %
    Connection kit with bracket for wall mounting size 4
    up to 14 days
    217 Kč excl. VAT
    262 Kč

    Connection set of FUTURA air handling units with wall bracket size 4. The kit can be used to connect any 2 modules of a given size together without the need for screws and other...

    Code: KPW4F
    bf
    Original parts
    539 Kč –5 %
    Spare container FUTURA semi-automatic size 4
    up to 14 days
    423 Kč excl. VAT
    512 Kč

    Replacement container for FUTURA filters in size 4 with semi-automatic drainage - (manual manual and automatic drainage based on the fullness of the container). Suitable only...

    Code: BF4F
    bfm
    Original parts
    1 958 Kč –5 %
    Replacement robust container FUTURA semi-automatic size 4
    up to 14 days
    1 537 Kč excl. VAT
    1 860 Kč

    Replacement sturdy container for FUTURA filters in size 4 with semi-automatic drainage - (manual manual and automatic drainage based on container fullness). Suitable only for...

    Code: BFM4F
    bf am
    Original parts
    2 097 Kč –5 %
    Container with automatic release FUTURA size 4
    up to 14 days
    1 646 Kč excl. VAT
    1 992 Kč

    Replacement container for FUTURA filters in size 4 with automatic condensate release by means of a float. Suitable only for FUTURA series air treatment filter units.

    Code: BF4F-AM
    fx
    Original parts
    2 854 Kč –5 %
    Filter insert for FX10-F microfilter
    up to 14 days
    2 240 Kč excl. VAT
    2 711 Kč

    Replacement filter insert for the FUTURA microfilter with filtration of solid impurities to 0.01 um. The filter cartridge change is indicated by an indicator and or differential...

    Code: FX10-FV
    w
    Original parts
    579 Kč –5 %
    Fixing bracket with screws FUTURA size 4
    up to 14 days
    455 Kč excl. VAT
    550 Kč

    Fixing bracket with screws under the cover of the FUTURA size 4 unit. All modules of FUTURA units can be mounted in this way. Easily mounted with wall bracket and similar mounting.

    Code: W4F
    bfm am
    Original parts
    3 516 Kč –5 %
    Robust container with automatic drain FUTURA size 4
    up to 14 days
    2 760 Kč excl. VAT
    3 340 Kč

    Replacement robust container for FUTURA filters in size 4 with automatic condensate release by means of a float. Suitable only for FUTURA series air treatment filter units.

    Code: BFM4F-AM
    Show all related products Previous product Next product

    Product detailed description

    Air microfilter 0,01 um FUTURA series - FX10-F

    • Designed for compressed air and neutral gases
    • Design according to ATEX II 2G2D
    • Maximum inlet pressure 1,5 - 16 Bar
    • Operating temperature : -10°C to +50°C
    • Materials : Grivory (PA66) body, NBR gasket, polycarbonate container
    • Semi-automatic condensate drainage with a filtration capacity of 5 um

    Additional parameters

    Category: Air filters of the FUTURA series - prefilters - microfilters
    Version: Filter
    Pressure: 16 bar
    Dimensions: 255 x 85 mm
    Certification: ATEX II 2G2D
    Filtering ability: 0.01 µm
    Filter insert: Replacement insert (FX10-FV)
    Medium: Compressed air
    Vessel volume: 87 cm3
    Condensate discharge: Semi-automatic
    Working temperature: -10 / 50 °C
    Flow: 1 400 l/min
    Thread: G 1"
