Membrane air dryer MADRY-90
Code: MADRY-90Related products
Product detailed description

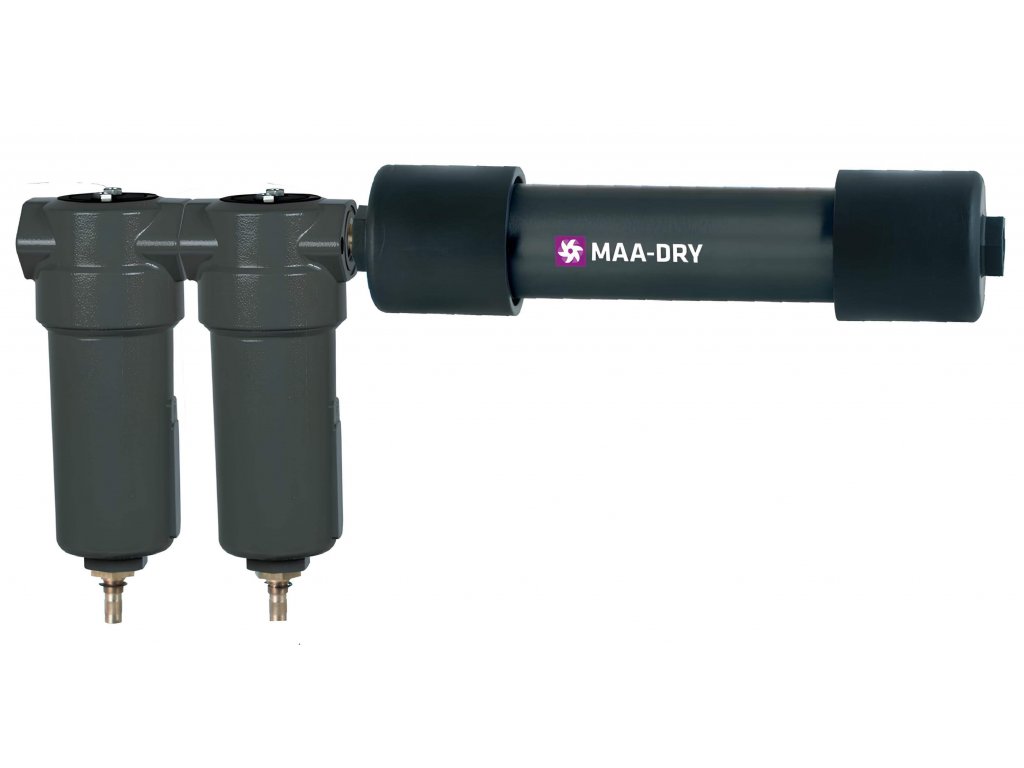

MADRY-90 compressed air membrane dryer

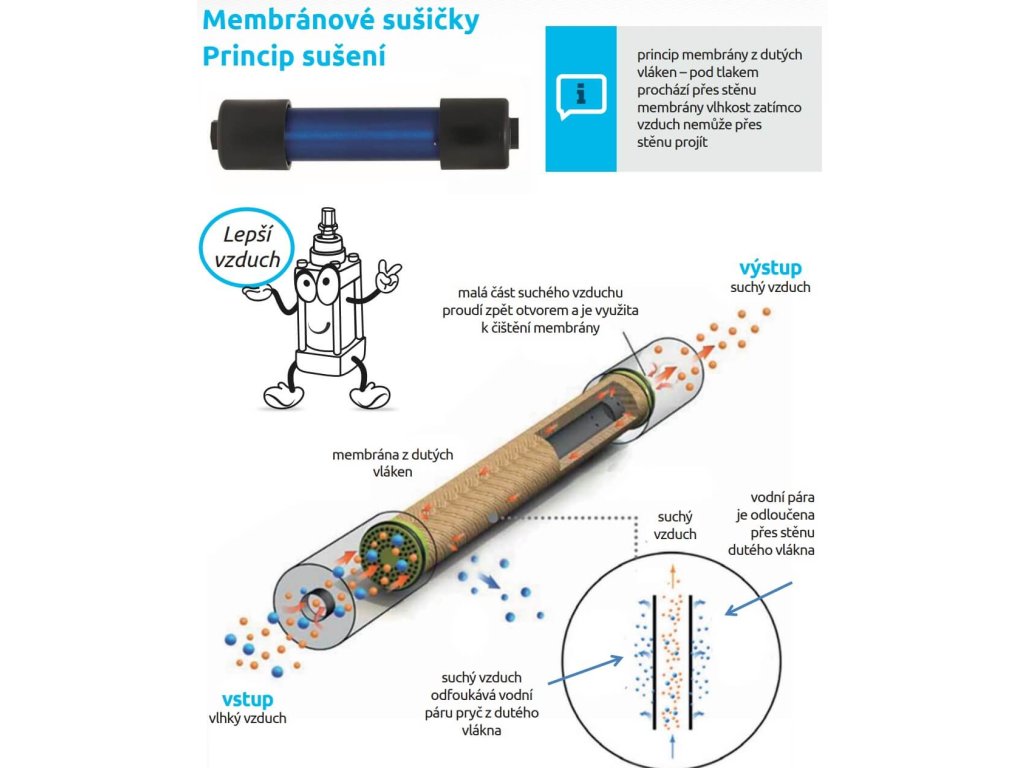

- dryers working on the principle of water separation by means of a hollow fibre membrane
- designed for highly efficient removal of residual water vapour from compressed air
- the dew point value depends on the input conditions and the flow rate

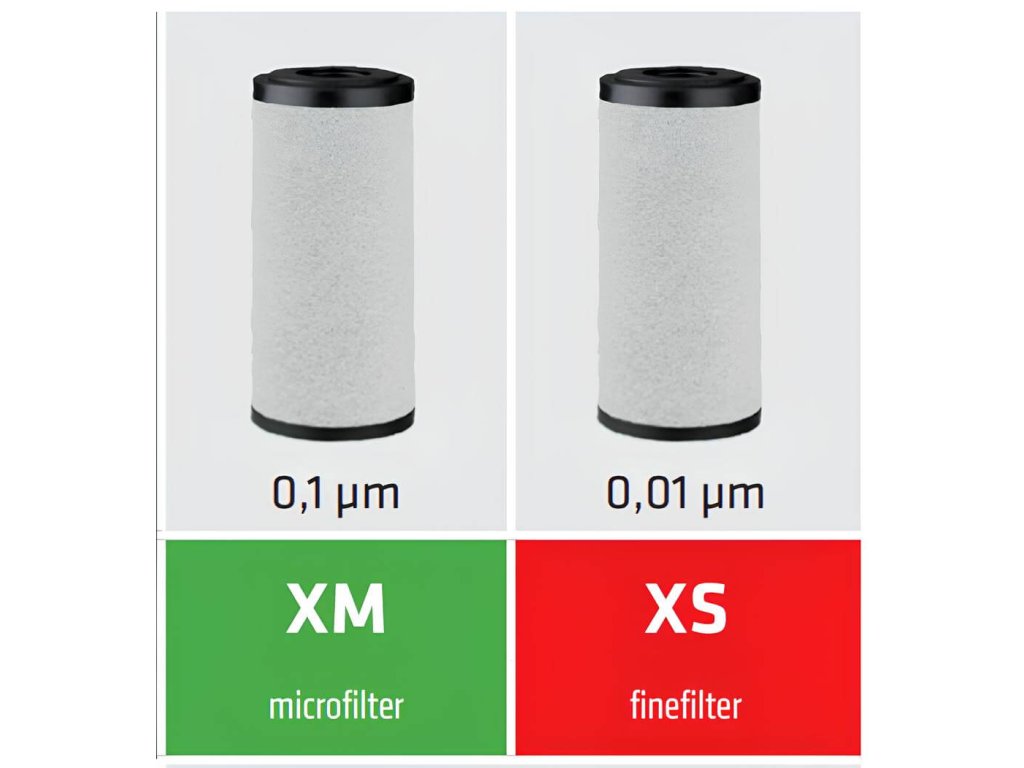

- 0.1μm pre-filter and 0.01μm microfilter with float skimmer included
- operating temperature +1.5/+60 °C, working pressure 0-12 bar
- recommended maintenance: check differential pressure once a month, change activated carbon cartridge once a year
- designed for the supply of compressed air with low dew point at low flow rates

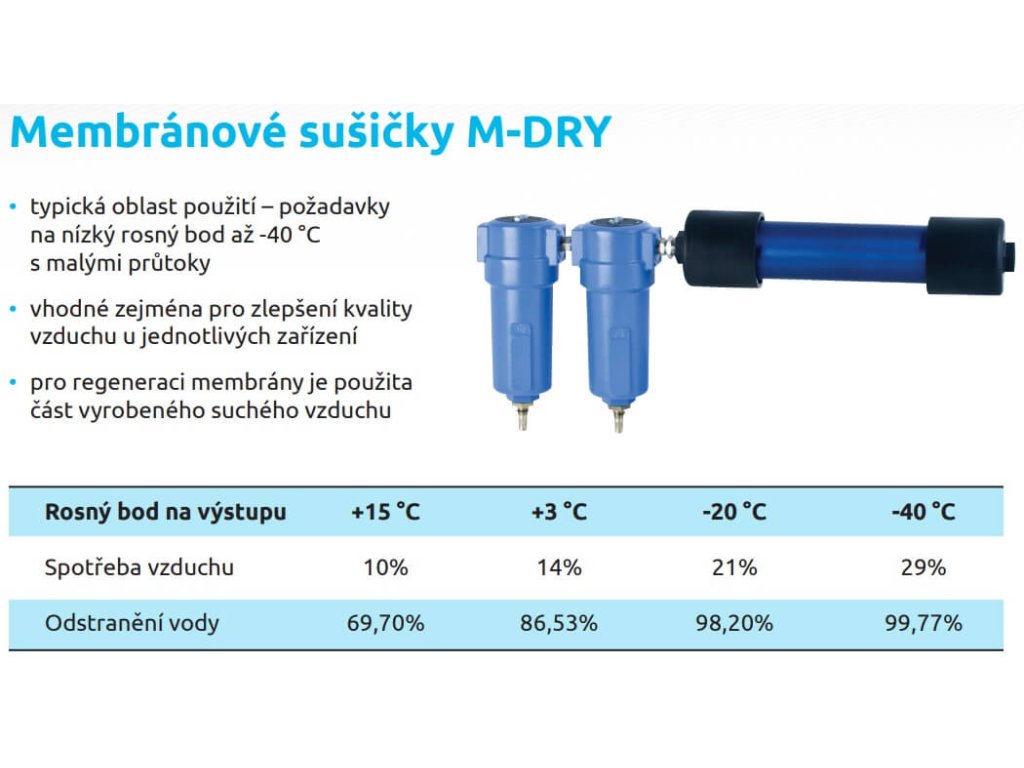

- important note: Membrane dryers require 10-30% of the supplied air for operation, depending on the pressure dew point
Additional parameters
| Category: | MADRY compressed air membrane dryers |
|---|---|
| Pressure: | 12 bar |
| Connecting: | 1/2" |

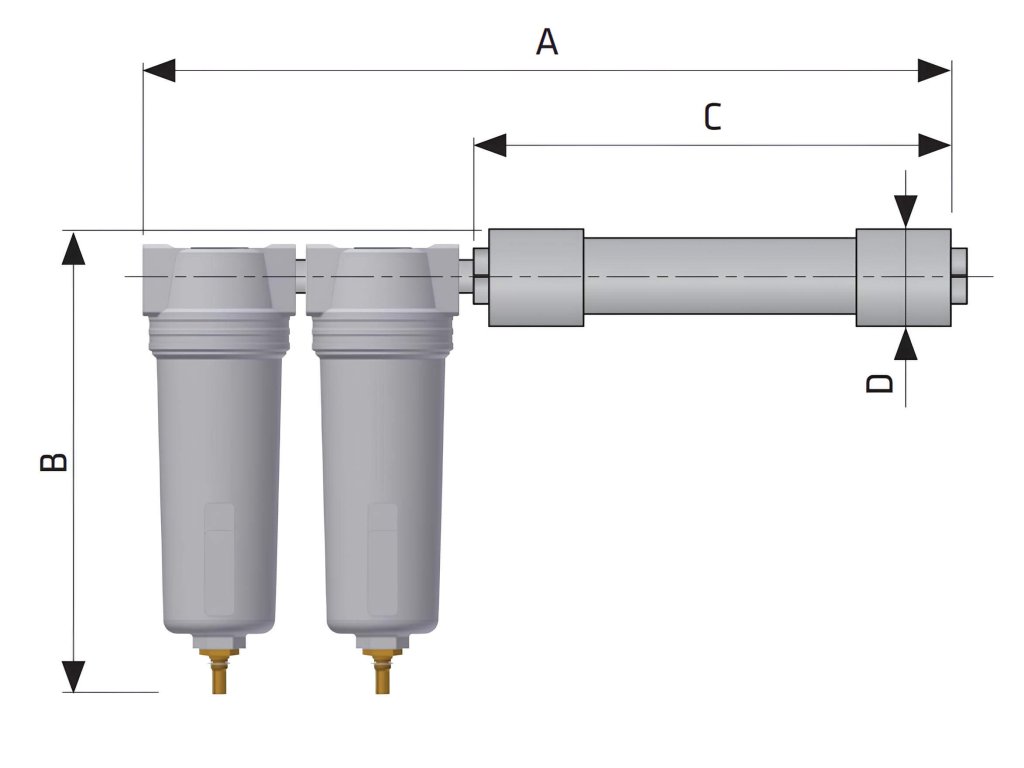

| Dimensions: | 807 x 321 x 572 x 108 mm |
| Insert replacement interval: | Membrane MADRY-90M |
| Flow: | 1,500 l/min |
| Dew point: | up to -40°C |
| Pressure dew point: | -40 °C, -25 °C, +3 °C, +15 °C |
| Dryer type: | Membrane dryer |
-
