    Membrane air dryer MADRY-123

    Code: MADRY-123
    Not rated
    Brand: OMEGA AIR
    FREEFREE 172 680 Kč –2 %
    Membrane air dryer MADRY-123
    172 680 Kč –2 % 169 226 Kč / pcs 139 856 Kč excl. VAT
    up to 14 days
    Delivery to:
    17.03.2025
    Delivery offer

    MADRY-123 membrane dryer with compressed air flow up to 123 m³/hr up to 12 bar. Including 2 filters through the dryer and filter cartridge clogging indication. Designed to supply compressed air with low dew point down to -40°C at. Working on the principle of water separation by means of a hollow fibre membrane. Dryers for highly efficient removal of residual water vapour from compressed air.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Related products

    madry nahradni membrana susicka vzduchu membranova kondenzat kompresor 1
    FREEFREE 172 306 Kč –2 %
    Replacement membrane for the MADRY-123M dryer
    up to 14 days
    139 554 Kč excl. VAT
    168 860 Kč

    Replacement diaphragm for MADRY-123M compressed air dryer from compressor working on the principle of water separation by means of hollow fibre diaphragm.

    Code: MADRY-123M
    Filter insert for AFS-170 microfilter
    Sellout Original parts
    4 378 Kč –2 %
    Filter insert for AFS-170 microfilter
    Stock (3 pcs)
    3 545 Kč excl. VAT
    4 290 Kč

    The AFS filter insert is used to remove the largest mechanical impurities from compressed air up to 0.01 um according to ISO 8573-1 class 1. Easy replacement thanks to removable...

    Code: AFS-170V
    Filter insert for dust filter AFR-20
    Sellout Original parts
    1 115 Kč –1 %
    Filter insert for dust filter AFR-20
    Stock (1 pcs)
    903 Kč excl. VAT
    1 093 Kč

    AFR dust filters according to ISO 8573.1. Filtration capacity 1 um. AFR filters are designed for systems with high dust content, typically used as an outlet filter on adsorption...

    Code: AFR-20V
    Filter insert for pre-filter AFM-60
    Sellout Original parts
    1 982 Kč –2 %
    Filter insert for pre-filter AFM-60
    Stock (1 pcs)
    1 605 Kč excl. VAT
    1 942 Kč

    AFM prefilters according to ISO 8573.1. Filtration capacity 0,1 um, residual oil 0,1 mg/m3. AFM filters are used to remove coarse mechanical impurities from compressed air and...

    Code: AFM-60V
    Show all related products

    Product detailed description

    Membrane compressed air dryer MADRY-123

    • dryers working on the principle of water separation by means of a hollow fibre membrane
    • designed for highly efficient removal of residual water vapour from compressed air
    • the dew point value depends on the input conditions and the flow rate
    • 0.1μm pre-filter and 0.01μm microfilter with float skimmer included
    • operating temperature +1.5/+60 °C, working pressure 0-12 bar
    • recommended maintenance: check differential pressure once a month, change activated carbon cartridge once a year
    • designed for the supply of compressed air with low dew point at low flow rates
    • important note: Membrane dryers require 10-30% of the supplied air for operation, depending on the pressure dew point

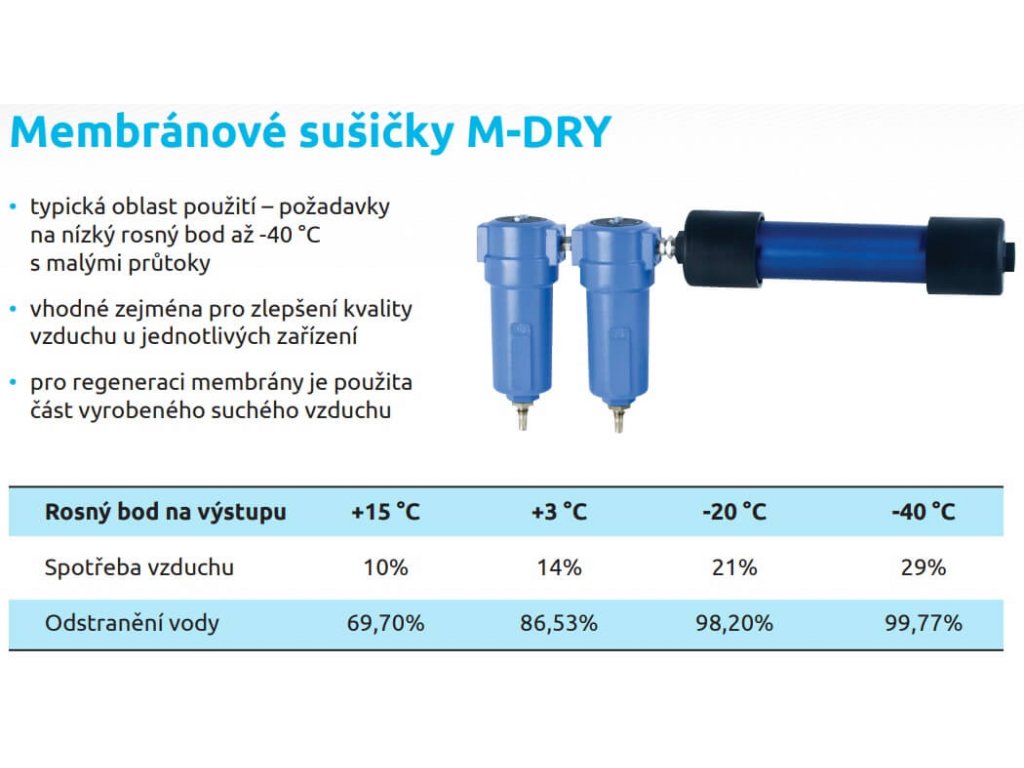

    Membránové sušičky Princip sušení

    Membránové sušičky M-DRY stlačeného vzduchu od kompresoru

    Adsorpční sušičky M-DRY vzduchu kompresorů

    Korekční faktory adsorpční sušičky M-DRY vzduchu kompresorů

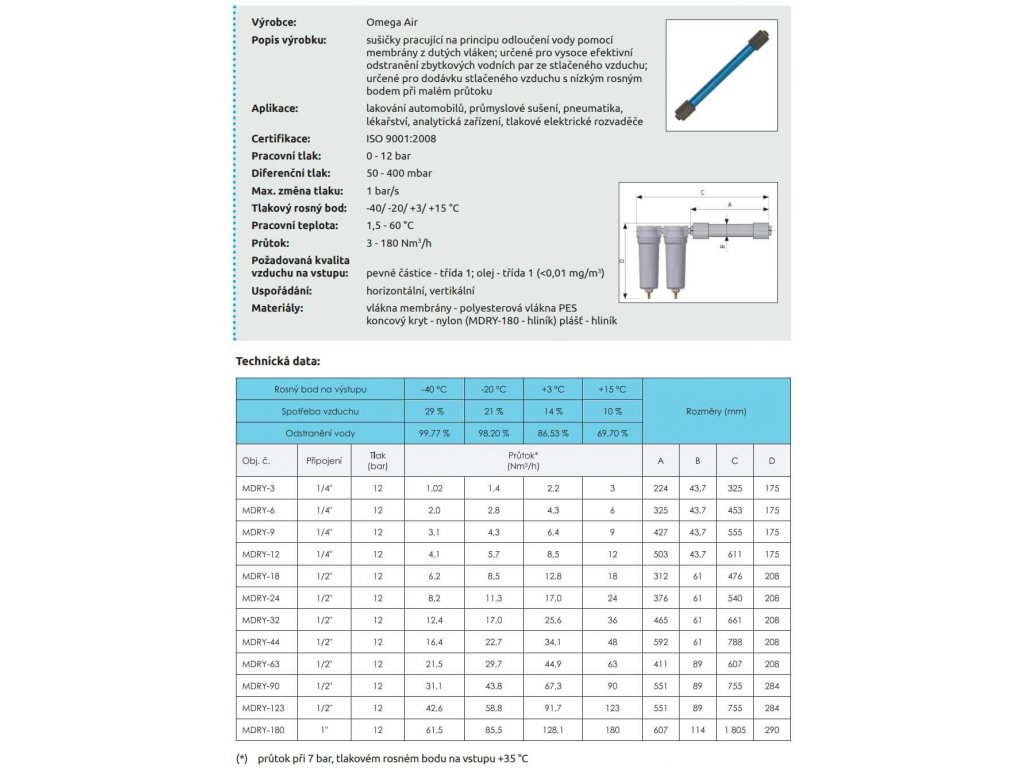

    Additional parameters

    Category: Compressed Air Moisture Removal Air Dryers
    Pressure: 12 bar
    Connecting: 1/2"
    Dimensions: 883 x 321 x 648 x 108 mm
    Insert replacement interval: Membrane MADRY-123M
    Flow: 2,050 l/min
    Dew point: up to -40°C
    Pressure dew point: -40 °C, -25 °C, +3 °C, +15 °C
    Dryer type: Membrane dryer
