Membrane air dryer MADRY-12
Code: MADRY-12Related products
Product detailed description
MADRY-12 compressed air membrane dryer

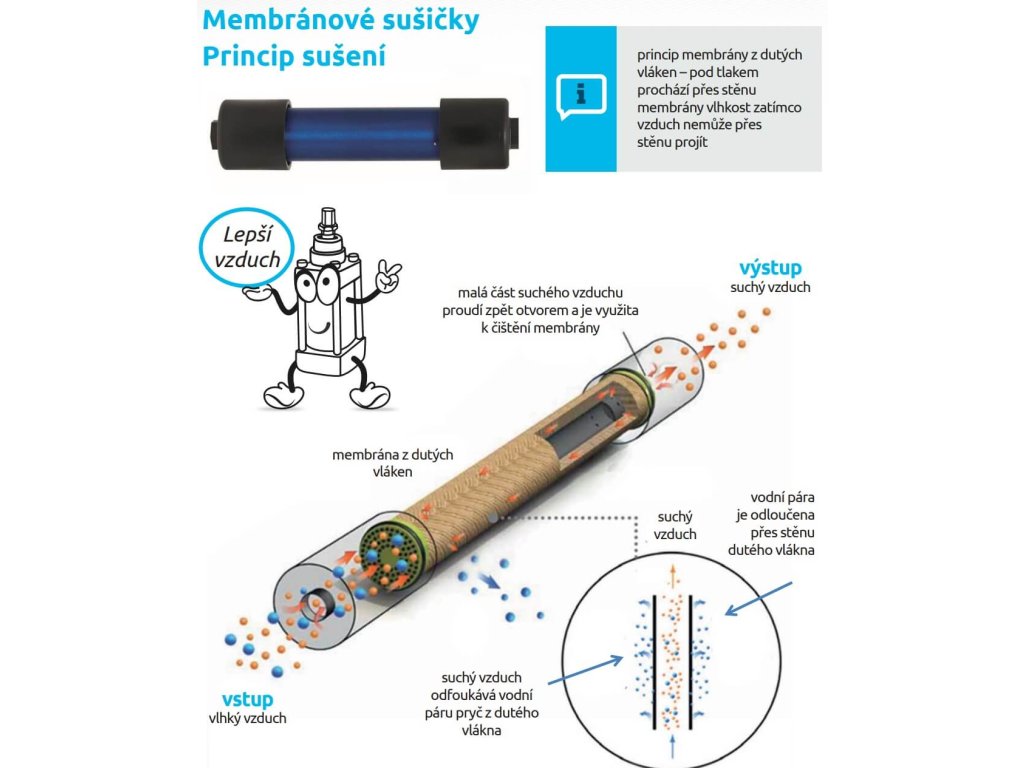

- dryers working on the principle of water separation by means of a hollow fibre membrane
- designed for highly efficient removal of residual water vapour from compressed air
- the dew point value depends on the input conditions and the flow rate

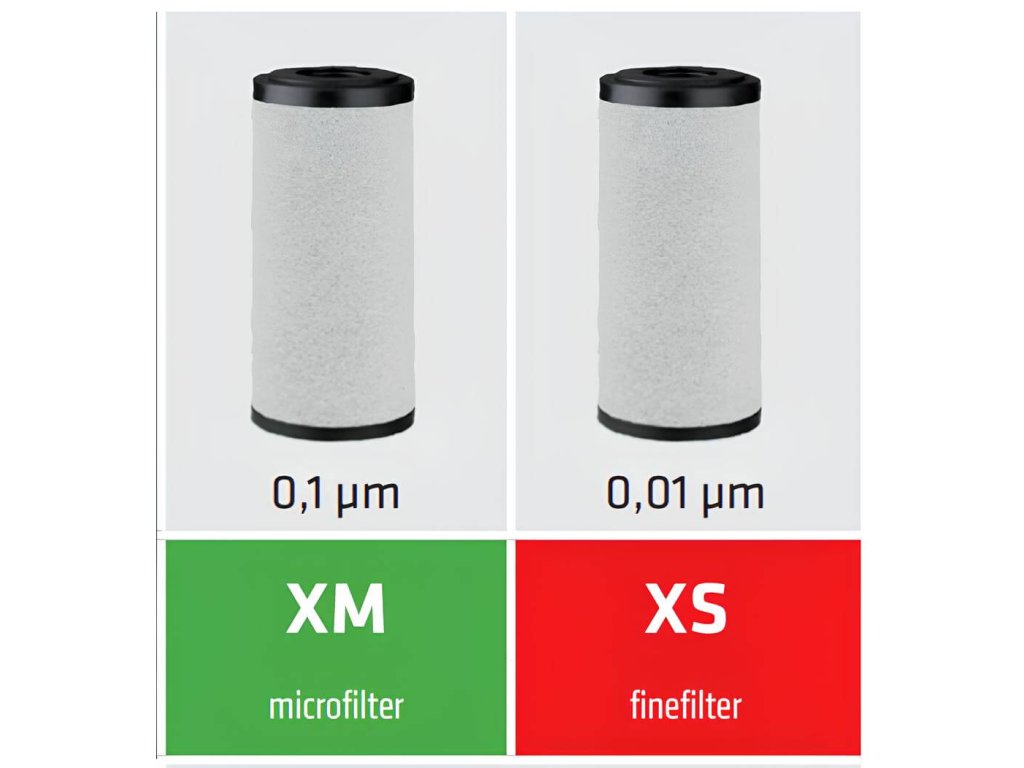

- 0.1μm pre-filter and 0.01μm microfilter with float skimmer included
- operating temperature +1.5/+60 °C, working pressure 0-12 bar
- recommended maintenance: check differential pressure once a month, change activated carbon cartridge once a year
- designed for the supply of compressed air with low dew point at low flow rates
- important note: Membrane dryers require 10-30% of the supplied air for operation, depending on the pressure dew point
Additional parameters
| Category: | MADRY compressed air membrane dryers |
|---|---|
| Pressure: | 12 bar |
| Connecting: | 1/4" |

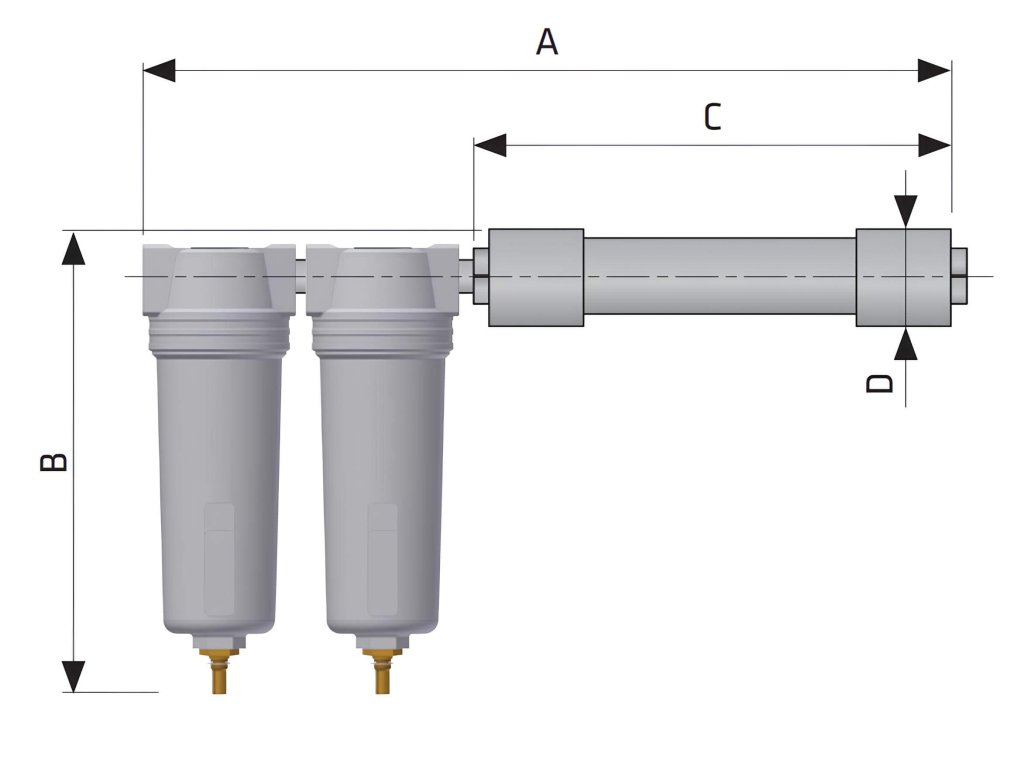

| Dimensions: | 714 x 208 x 523 x 58 mm |
| Insert replacement interval: | Membrane MADRY-12M |
| Flow: | 200 l/min |
| Dew point: | up to -40°C |
| Pressure dew point: | -40 °C, -25 °C, +3 °C, +15 °C |
| Dryer type: | Membrane dryer |
-
Produktový list (1.4 MB)
-
Katalogový list (85.8 kB)
-
Technický výkres (418.9 kB)
-
Manuál k použití (419.4 kB)
Be the first who will post an article to this item!
Be the first who will post an article to this item!
