    Plastic manometers MS100

    Plastový manometr stranový pro měření tlaku média
    • Materials used : plastic body, copper alloy measuring element and pointer, acrylic windscreen
    • Basic design of pressure gauges with bottom and rear connection, designed for pressure measurement of non-aggressive media with lower demands on the durability of the instrument
    • Manometers in 100 mm diameter in plastic with 1/2" thread

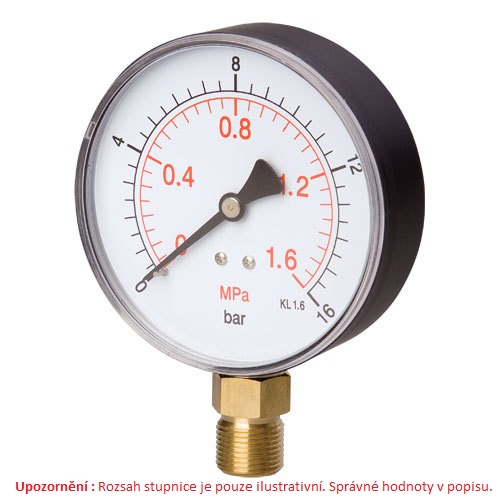

    Standard pressure gauge MS - diameter 100 mm and bottom thread 1/2"
    Plastový manometr MS100 stranový pro měření tlaku média Ordering
    number    		 Diameter
    pointers
    mm    		 Pressure range
    bar    		 Connecting Thread
    "    		 Class
    accuracy
    %    		 Operational
    temperature
    °C
    MS06-01 100 -1 to 0 lower 1/2" 1,6% -40/+60
    MS06-02 100 -1 to 0.6 lower 1/2" 1,6% -40/+60
    MS06-03 100 -1 to 1.5 lower 1/2" 1,6% -40/+60
    MS06-04 100 -1 to 3 lower 1/2" 1,6% -40/+60
    MS06-05 100 -1 to 5 lower 1/2" 1,6% -40/+60
    MS06-06 100 -1 to 9 lower 1/2" 1,6% -40/+60
    MS06-07 100 -1 to 15 lower 1/2" 1,6% -40/+60
    MS06-09 100 0 to 1 lower 1/2" 1,6% -40/+60
    MS06-10 100 0 to 1.6 lower 1/2" 1,6% -40/+60
    MS06-11 100 0 to 2.5 lower 1/2" 1,6% -40/+60
    MS06-12 100 0 to 4 lower 1/2" 1,6% -40/+60
    MS06-13 100 0 to 6 lower 1/2" 1,6% -40/+60
    MS06-14 100 0 to 10 lower 1/2" 1,6% -40/+60
    MS06-15 100 0 to 16 lower 1/2" 1,6% -40/+60
    MS06-16 100 0 to 25 lower 1/2" 1,6% -40/+60
    MS06-17 100 0 to 40 lower 1/2" 1,6% -40/+60
    MS06-18 100 0 to 60 lower 1/2" 1,6% -40/+60
    MS06-19 100 0 to 100 lower 1/2" 1,6% -40/+60
    MS06-20 100 0 to 160 lower 1/2" 1,6% -40/+60
    MS06-21 100 0 to 250 lower 1/2" 1,6% -40/+60
    MS06-22 100 0 to 400 lower 1/2" 1,6% -40/+60
