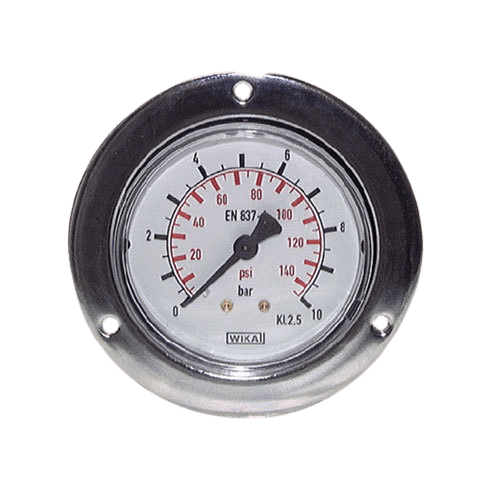

    Glycerine pressure gauges for pressure measurement panel

    Manometr s čelní přírubou do panelu a glycerinovým plnění
    • Face flange gauges for easy mounting to machine panels, production lines and equipment
    • Glycerine damped design - shockproof and for easy reading of the measured value
    • Medium temperature up to a maximum of +60°C
    • Materials used: stainless steel body and front flange, copper measuring member and pointer, acrylic windscreen
    • Designed especially for deliveries to production equipment, machines and lines

    Panel mount gauges - 63 mm diameter - 1/4" rear thread
    Ordering
    number    		 Diameter
    pointers
    mm    		 Pressure range
    bar    		 Connecting Thread Class
    accuracy    		 Operational
    temperature
    °C    		 Manometr zadní s čelní přírubou 63 mm do panelu a glycerinovým plnění
    MSEG63-V 63 -1 to 0 rear 1/4" 1,6% -20/+60
    MSEG63-1 63 0 to 1 rear 1/4" 1,6% -20/+60
    MSEG63-1.6 63 0 to 1.6 rear 1/4" 1,6% -20/+60
    MSEG63-2.5 63 0 to 2.5 rear 1/4" 1,6% -20/+60
    MSEG63-4 63 0 to 4 rear 1/4" 1,6% -20/+60
    MSEG63-6 63 0 to 6 rear 1/4" 1,6% -20/+60
    MSEG63-10 63 0 to 10 rear 1/4" 1,6% -20/+60
    MSEG63-16 63 0 to 16 rear 1/4" 1,6% -20/+60
    MSEG63-25 63 0 to 25 rear 1/4" 1,6% -20/+60
    MSEG63-40 63 0 to 40 rear 1/4" 1,6% -20/+60
    MSEG63-60 63 0 to 60 rear 1/4" 1,6% -20/+60
    MSEG63-100 63 0 to 100 rear 1/4" 1,6% -20/+60
    MSEG63-160 63 0 to 160 rear 1/4" 1,6% -20/+60
    MSEG63-250 63 0 to 250 rear 1/4" 1,6% -20/+60
    MSEG63-400 63 0 to 400 rear 1/4" 1,6% -20/+60
    MSEG63-600 63 0 to 600 rear 1/4" 1,6% -20/+60

    Panel mount gauges - 100 mm diameter - 1/2" rear thread
    Ordering
    number    		 Diameter
    pointers
    mm    		 Pressure range
    bar    		 Connecting Thread Class
    accuracy    		 Operational
    temperature
    (°C)    		 Manometr zadní s čelní přírubou 100 mm do panelu a glycerinovým plnění
    MSEG100-V 100 -1 to 0 rear 1/2" 1,0% -20/+60
    MSEG100-1 100 0 to 1 rear 1/2" 1,0% -20/+60
    MSEG100-0.6 100 0 to 0.6 rear 1/2" 1,0% -20/+60
    MSEG100-1.6 100 0 to 1.6 rear 1/2" 1,0% -20/+60
    MSEG100-2.5 100 0 to 2.5 rear 1/2" 1,0% -20/+60
    MSEG100-4 100 0 to 4 rear 1/2" 1,0% -20/+60
    MSEG100-6 100 0 to 6 rear 1/2" 1,0% -20/+60
    MSEG100-10 100 0 to 10 rear 1/2" 1,0% -20/+60
    MSEG100-16 100 0 to 16 rear 1/2" 1,0% -20/+60
    MSEG100-25 100 0 to 25 rear 1/2" 1,0% -20/+60
    MSEG100-40 100 0 to 40 rear 1/2" 1,0% -20/+60
    MSEG100-60 100 0 to 60 rear 1/2" 1,0% -20/+60
    MSEG100-100 100 0 to 100 rear 1/2" 1,0% -20/+60
    MSEG100-160 100 0 to 160 rear 1/2" 1,0% -20/+60
    MSEG100-250 100 0 to 250 rear 1/2" 1,0% -20/+60
    MSEG100-400 100 0 to 400 rear 1/2" 1,0% -20/+60
    MSEG100-600 100 0 to 600 rear 1/2" 1,0% -20/+60
    MSEG100-1000 100 0 to 1000 rear 1/2" 1,0% -20/+60
